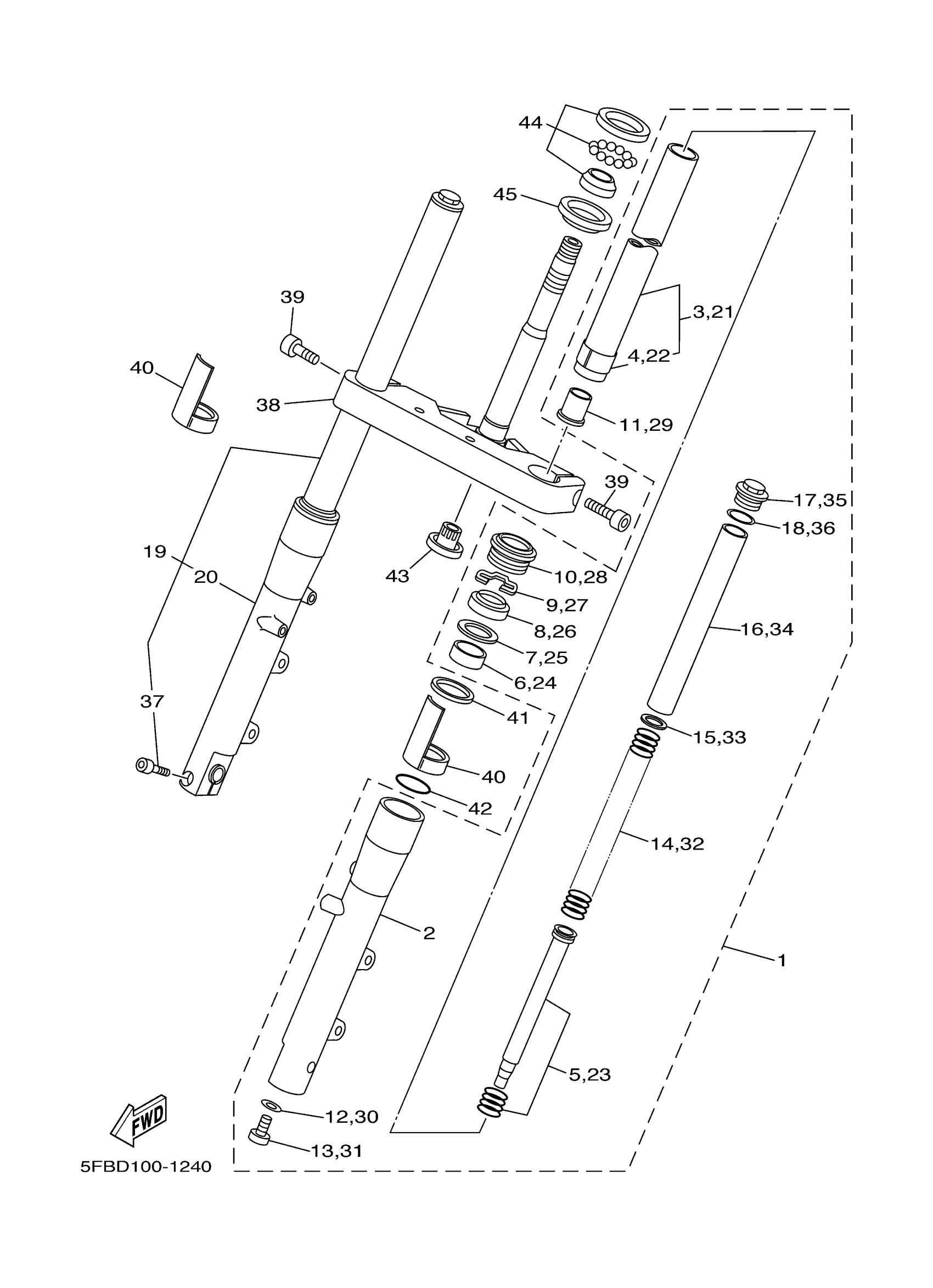

Yamaha XVS65DCB (V STAR 650 CUSTOM CA) 3B6S 2013 FRONT FORK Diagram
#
Description
Price
3
INNER TUBE COMP.1
5KP-23110-00-00
Unavailable
5
CYLINDER COMP., FRONT FORK
5KP-23170-00-00
Unavailable
11
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
16
SPACER
4TR-23118-00-00
Unavailable
17
BOLT, CAP
1D0-23111-00-00
Unavailable
18
O-RING
43F-23188-10-00
Unavailable
19
FRONT FORK ASSY (R.H)
5KP-23103-11-00
Unavailable
20
TUBE, OUTER (RIGHT)
5KP-23136-10-00
Unavailable
21
INNER TUBE COMP.1
5KP-23110-00-00
Unavailable
23
CYLINDER COMP., FRONT FORK
5KP-23170-00-00
Unavailable
29
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
34
SPACER
4TR-23118-00-00
Unavailable
35
BOLT, CAP
1D0-23111-00-00
Unavailable
36
O-RING
43F-23188-10-00
Unavailable
37
BOLT,SOCKET
91314-08040-00
Unavailable
38
UNDER BRACKET COMP.
5KP-23340-11-00
Unavailable
39
BOLT,SOCKET
91314-10030-00
Unavailable
40
COVER
5EL-2331G-00-00
Unavailable
41
STOPPER
5EL-23376-00-00
Unavailable
42
O-RING
5EL-23147-00-00
Unavailable
43
COVER, LOWER 1
4KM-23123-01-00
Unavailable
44
BEARING(3FV)
93399-99932-00
Unavailable
45
SEAL, STEERING
3FV-23462-00-00
Unavailable
46
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
