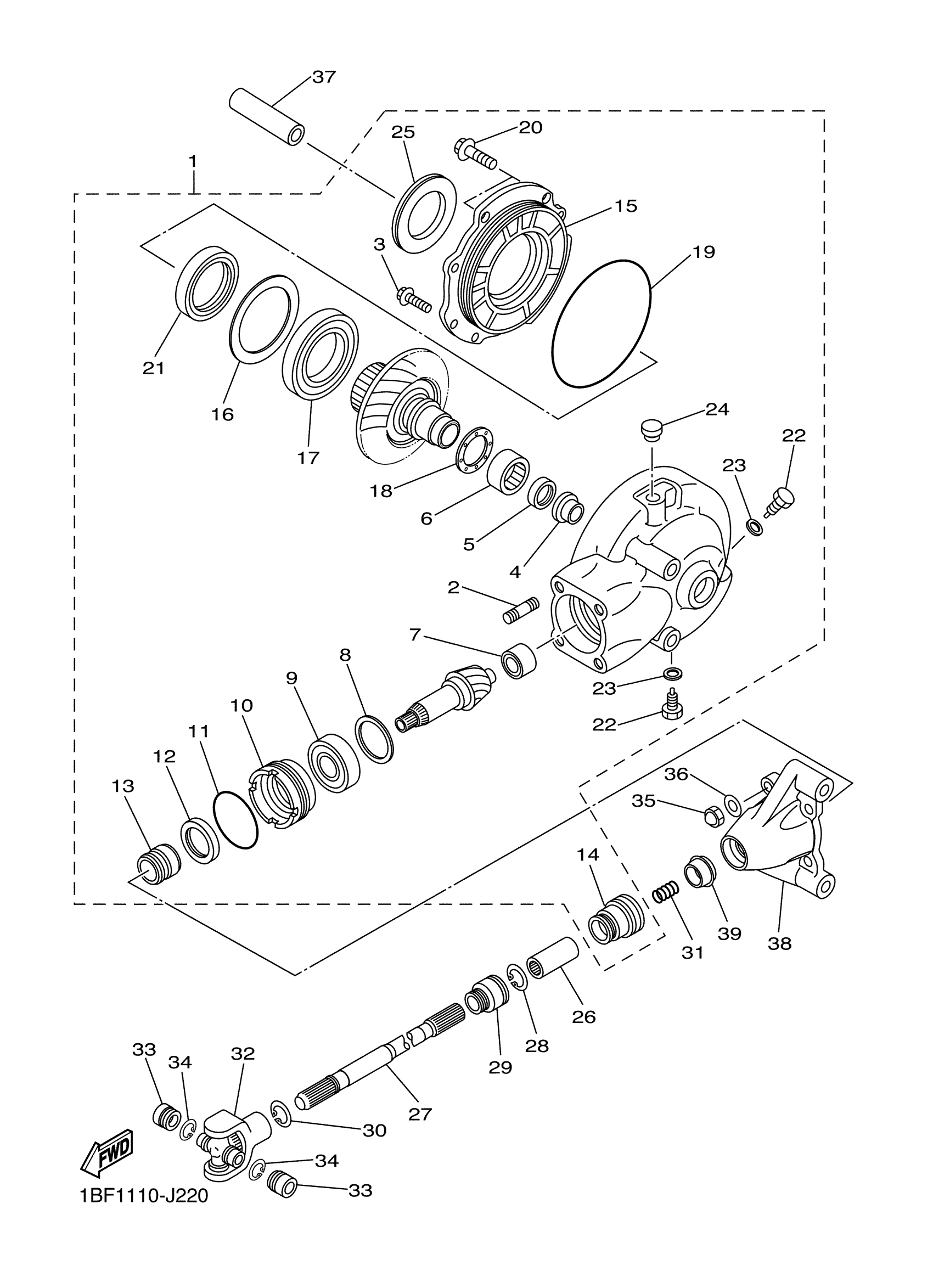

Yamaha XVS65DCB (V STAR 650 CUSTOM CA) 3B6S 2013 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

5FB-46101-02-00

Unavailable

2

BOLT, STUD (5E5)

90116-10361-00

Unavailable

3

BOLT, WITH WASHER(72H)

97527-08525-00

$6.99

4

COLLAR, GUIDE

22U-46153-00-00

Unavailable

5

OIL SEAL (30X42X7-1J7)

93101-30084-00

$18.99

6

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

Unavailable

7

BEARING ASSY

2H7-46102-00-00

$58.99

8

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

8

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

8

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

9

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

10

RETAINER, BEARING

4H7-46125-00-00

$62.99

11

O-RING (4H7)

93210-60426-00

$10.49

12

OIL SEAL (4H7)

93101-38098-00

$17.99

13

COLLAR

90387-25017-00

Unavailable

14

SEAL 1

5FB-46136-00-00

Unavailable

15

HOUSING, BEARING

22U-46152-00-00

Unavailable

16

SHIM, RING GEAR

22U-46117-00-25

Unavailable

16

SHIM, RING GEAR

22U-46117-00-30

Unavailable

16

SHIM, RING GEAR

22U-46117-00-40

Unavailable

17

BEARING, CYLINDRICAL (22U)

93316-01301-00

Unavailable

18

WASHER, THRUST

22U-46118-00-12

Unavailable

18

WASHER, THRUST

22U-46118-00-14

Unavailable

18

WASHER, THRUST

22U-46118-00-16

Unavailable

18

WASHER, THRUST

22U-46118-00-18

Unavailable

18

WASHER, THRUST

22U-46118-00-20

Unavailable

19

O-RING (22U)

93211-39569-00

Unavailable

20

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

21

OIL SEAL (22U)

93102-65277-00

Unavailable

22

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

23

GASKET

214-11198-01-00

Unavailable

24

BREATHER COMP.

56W-17590-00-00

Unavailable

25

SEAL, HUB DUST

1J7-25319-02-00

Unavailable

26

COUPLING, GEAR

22U-46123-00-00

Unavailable

27

SHAFT DRIVE ASSY

5FB-46171-00-00

Unavailable

28

CIRCLIP(13H)

99009-18400-00

Unavailable

29

SEAL 2

5FB-46137-00-00

Unavailable

30

CIRCLIP (537)

93410-22039-00

Unavailable

31

SPRING, COMPRESSION (22U)

90501-15722-00

Unavailable

32

CROSS JOINT COMP.

4X7-46180-00-00

Unavailable

33

BEARING(2HR)

93399-99926-00

Unavailable

34

CIRCLIP (4X7)

93440-20088-00

Unavailable

35

NUT, CROWN(2GG)

90176-10075-00

Unavailable

36

WASHER, PLATE

92990-10600-00

Unavailable

37

COLLAR(4TR)

90387-1510D-00

Unavailable

38

COVER, HOUSING

4TR-46154-00-00

Unavailable

39

COVER, DUST

35C-46297-00-00

Unavailable
