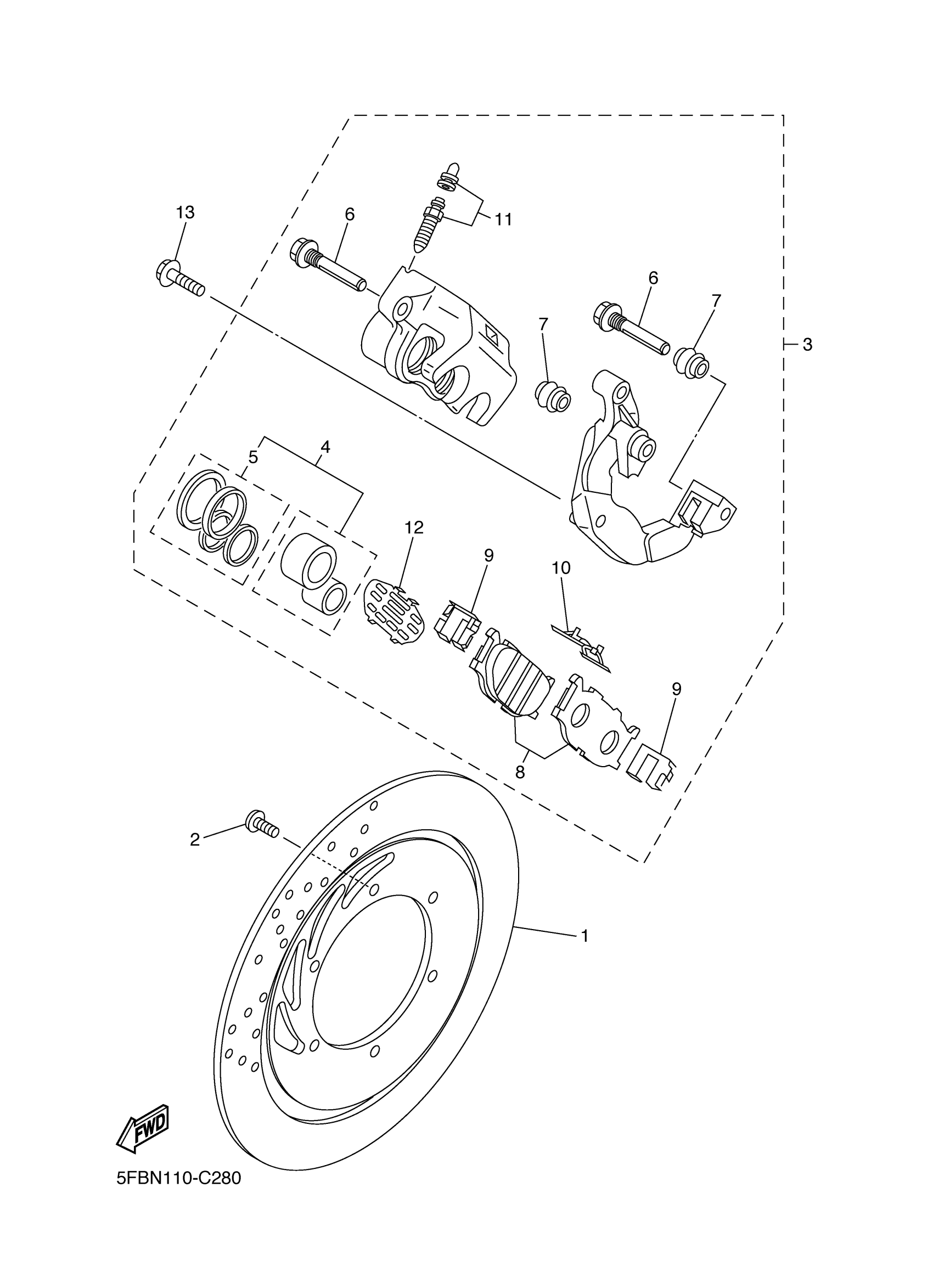

Yamaha XVS65AZR (V STAR 650 CLASSIC) 1BF1 2010 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

5BN-2582U-00-00

$309.50

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.91

3

CALIPER ASSY (RIGHT)

4WM-2580U-01-00

$567.00

4

PISTON ASSY, CALIPER

3JB-25802-00-00

$130.33

5

CALIPER SEAL KIT

3JB-25803-00-00

$36.93

6

PIN, SLIDE

5JW-25914-10-00

$17.93

7

BOOT 2

4TT-25937-00-00

$13.33

8

BRAKE PAD KIT

4WM-W0045-00-00

$37.78

9

SUPPORT, PAD

4BP-25919-00-00

$27.53

10

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

11

BLEED SCREW KIT

15B-W0048-00-00

$16.89

12

SHIM, CALIPER

5BN-25827-00-00

Unavailable

13

BOLT(3BM)

90109-100G0-00

$7.48
