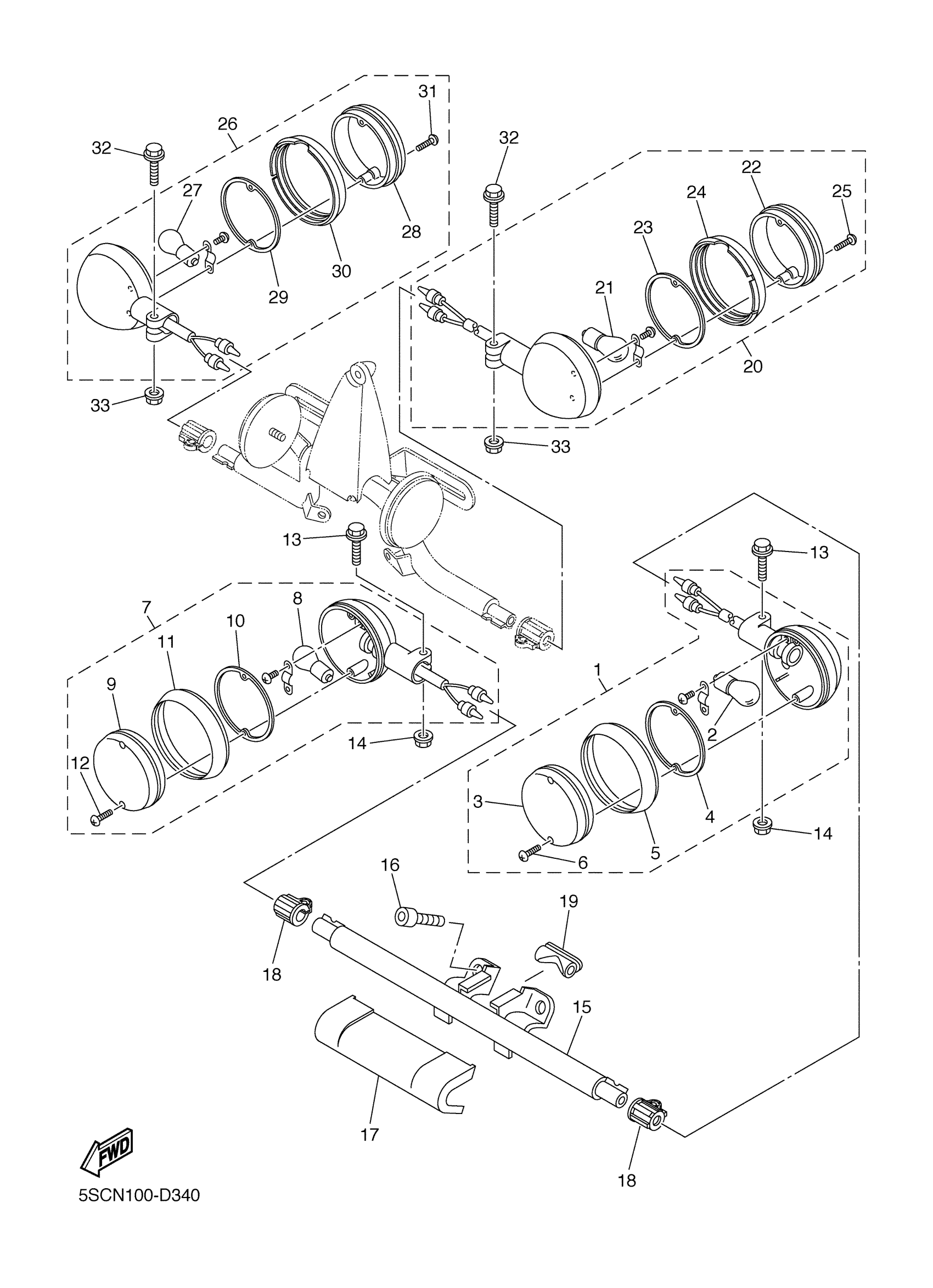

Yamaha XVS65AZR (V STAR 650 CLASSIC) 1BF1 2010 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5YS-83310-01-00

$80.55

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$12.22

3

LENS, FLASHER

5VN-83312-10-00

$11.88

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

LENS, RIM

1D6-83363-00-00

$21.88

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

5YS-83320-01-00

$79.79

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$12.22

9

LENS, FLASHER

5VN-83312-20-00

$14.70

10

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

11

LENS, RIM

1D6-83363-10-00

$21.82

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

14

NUT, FLANGE(7NB)

95780-06500-00

$1.88

15

STAY, 8

5BN-2317V-00-00

Unavailable

16

BOLT,SOCKET

91314-08016-00

Unavailable

17

COVER, OUTER 1

4NK-23122-01-00

Unavailable

18

DAMPER, FLASHER 1

5VN-83321-00-00

Unavailable

19

PLUG, BLIND

4NK-83345-00-00

Unavailable

20

REAR FLASHER LIGHT ASSY 1

1D6-83330-01-00

Unavailable

21

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

22

LENS, FLASHER

1D6-83312-20-00

Unavailable

23

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

24

LENS, RIM

1D6-83363-10-00

$21.82

25

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

26

REAR FLASHER LIGHT ASSY 2

1D6-83340-01-00

Unavailable

27

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

28

LENS, FLASHER

1D6-83312-10-00

Unavailable

29

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

30

LENS, RIM

1D6-83363-00-00

$21.88

31

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

32

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

33

NUT, FLANGE(7NB)

95780-06500-00

$1.88
