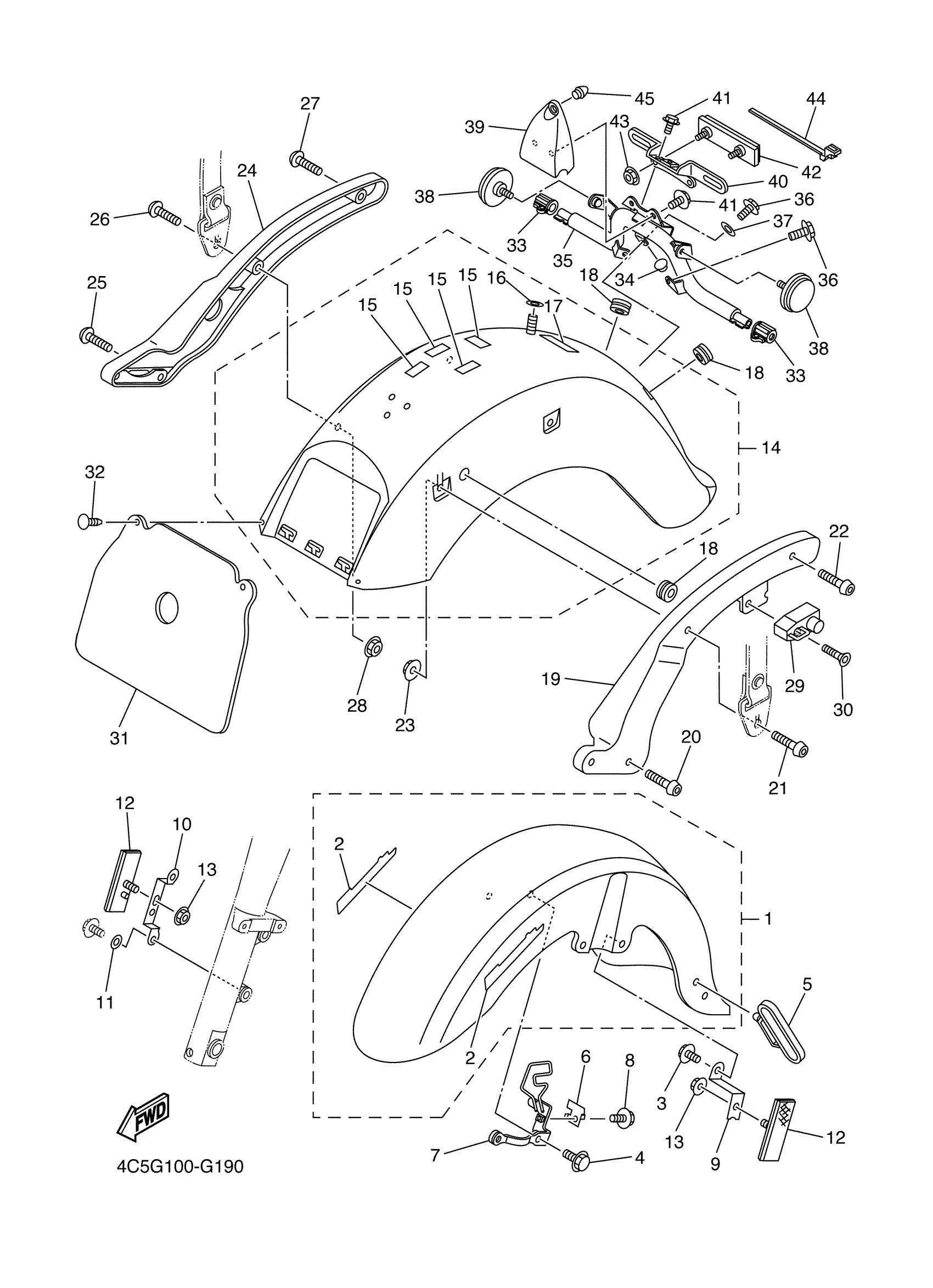

Yamaha XVS65AXL (V STAR 650 CLASSIC) 4C5G0 2008 FENDER Diagram
#
1
FRONT FENDER ASSY
5BN-Y2151-02-P4
Unavailable
2
EMBLEM
5BN-21578-E0-00
Unavailable
6
HOLDER, WIRE 2
5BN-21598-00-00
Unavailable
7
STAY 1
5BN-21587-01-00
Unavailable
9
BRACKET, REFLECTOR 1
5BN-85112-00-00
Unavailable
10
BRACKET, REFLECTOR 2
5BN-85122-00-00
Unavailable
14
REAR FENDER ASSY
5BN-W216R-V3-P4
Unavailable
14
REAR FENDER ASSY
5BN-W216R-V3-P8
Unavailable
15
SEAL 1
3SP-21732-00-00
Unavailable
16
SEAL 2
4NK-21735-00-00
Unavailable
17
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
18
GROMMET (438)
90480-15061-00
Unavailable
19
STAY, FENDER 1
5BN-21613-10-00
Unavailable
20
SCREW, PAN HEAD (22U)
90157-10043-00
Unavailable
21
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
22
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
23
NUT(55X)
90179-08491-00
Unavailable
24
STAY, FENDER 2
5BN-21614-10-00
Unavailable
25
SCREW, PAN HEAD (22U)
90157-10043-00
Unavailable
26
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
27
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
28
NUT(55X)
90179-08491-00
Unavailable
29
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
30
SCREW (4G1)
90149-06154-00
Unavailable
31
GUARD, MUD
4TR-21629-00-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
DAMPER, FLASHER 1
5VN-83321-00-00
Unavailable
34
PLUG, BLIND
4NK-83345-00-00
Unavailable
35
STAY, 9
5BN-2317W-40-00
Unavailable
36
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
37
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
38
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
39
BRACKET
5BN-84703-00-00
Unavailable
40
BRACKET, LICENSE
5BN-84751-00-00
Unavailable
41
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
42
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
44
CLAMP
90464-25002-00
Unavailable
45
DAMPER 2
42U-21639-00-00
Unavailable
