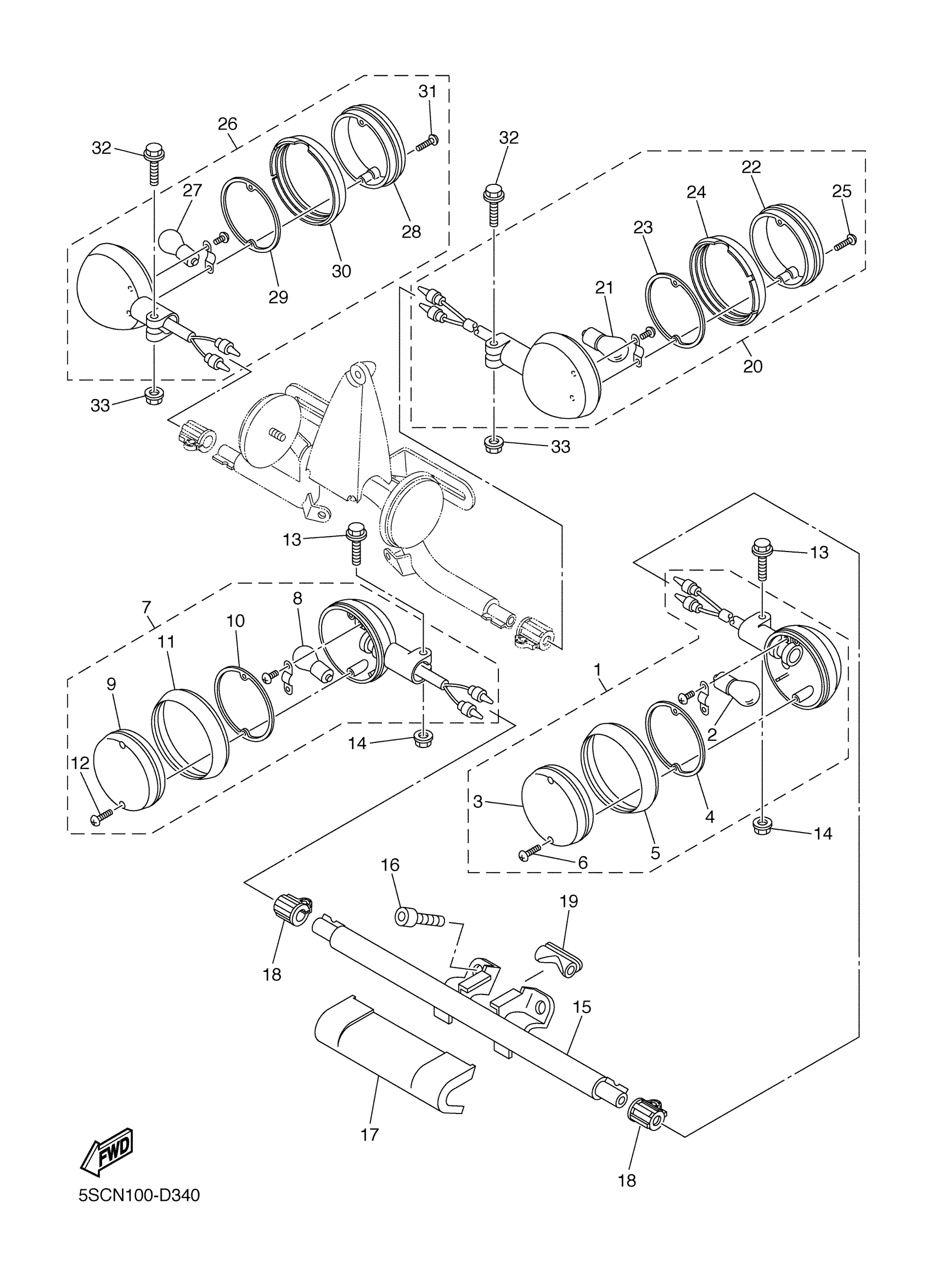

Yamaha XVS65AWC-B (V STAR 650 CLASSIC CA with flames) 4C5A0 2007 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5YS-83310-01-00

$97.99

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

3

LENS, FLASHER

5VN-83312-10-00

$16.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

5YS-83320-01-00

$96.99

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

9

LENS, FLASHER

5VN-83312-20-00

$16.49

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

LENS, RIM

1D6-83363-10-00

$28.99

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

14

NUT, FLANGE(7NB)

95780-06500-00

$2.60

15

STAY, 8

5BN-2317V-00-00

Unavailable

16

BOLT,SOCKET

91314-08016-00

Unavailable

17

COVER, OUTER 1

4NK-23122-01-00

Unavailable

18

DAMPER, FLASHER 1

5VN-83321-00-00

Unavailable

19

PLUG, BLIND

4NK-83345-00-00

Unavailable

20

REAR FLASHER LIGHT ASSY 1

1D6-83330-01-00

Unavailable

21

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

22

LENS, FLASHER

1D6-83312-20-00

Unavailable

23

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

24

LENS, RIM

1D6-83363-10-00

$28.99

25

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

26

REAR FLASHER LIGHT ASSY 2

1D6-83340-01-00

Unavailable

27

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

28

LENS, FLASHER

1D6-83312-10-00

Unavailable

29

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

30

LENS, RIM

1D6-83363-00-00

$28.99

31

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

32

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

33

NUT, FLANGE(7NB)

95780-06500-00

$2.60
