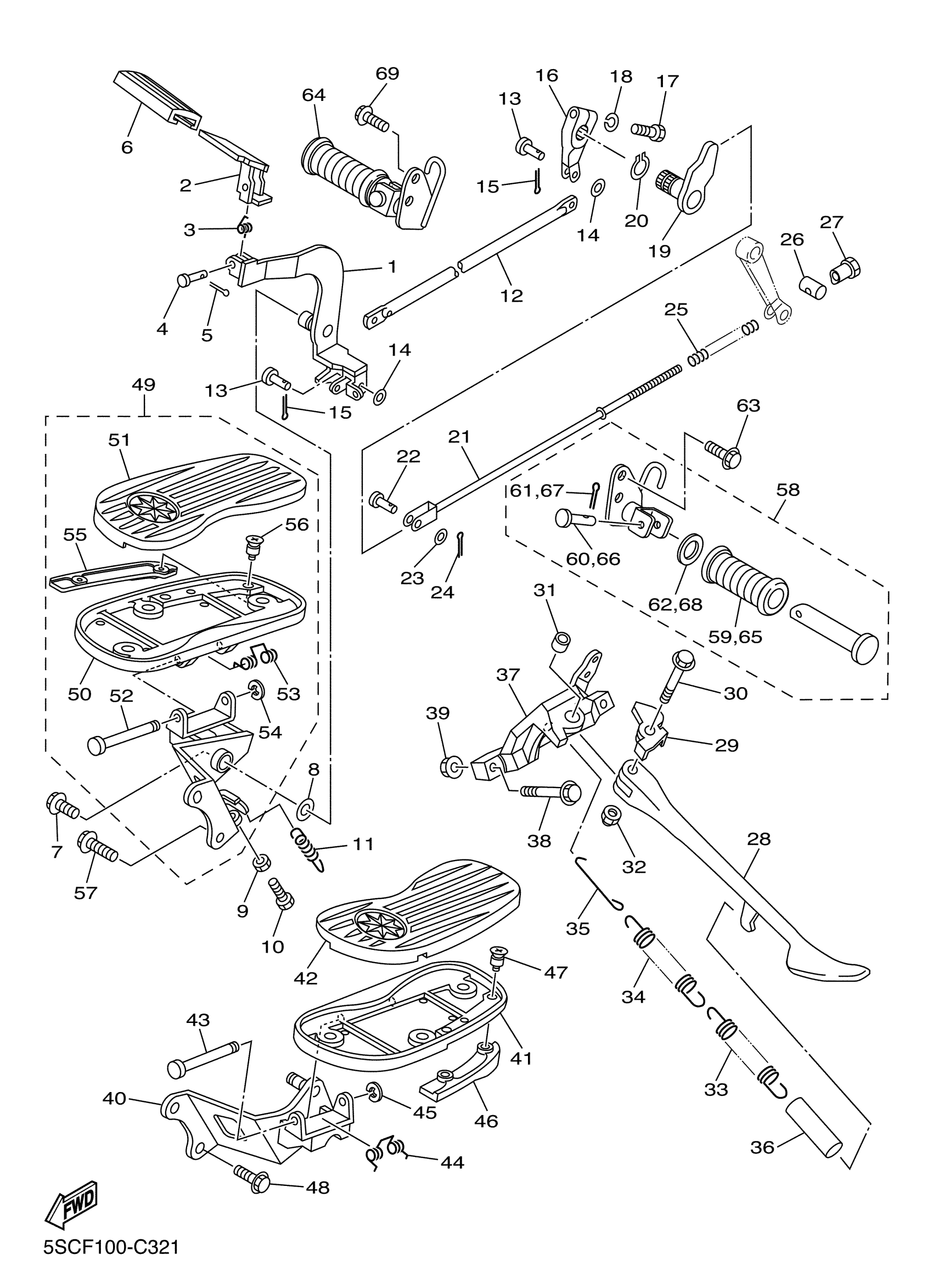

Yamaha XVS65ATZCB (V STAR 650 SILVERADO CA) 1BG2 2010 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5BN-27211-01-00

$140.99

2

PEDAL, BRAKE

4NK-27242-00-00

Unavailable

3

SPRING, TORSION

90508-18023-00

$7.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

CAP

4NK-27285-00-00

Unavailable

7

BOLT, HEXAGON SOCKET HEAD

90110-06119-00

$5.60

8

WASHER, WAVE(6T4)

90206-14086-00

$8.49

9

NUT(JN5)

95317-06700-00

$8.49

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

SPRING, TENSION(47X)

90506-20369-00

Unavailable

12

ROD 1

4TR-27247-00-00

$40.99

13

PIN, CLEVIS (32H)

90240-06108-00

$8.49

14

WASHER, PLATE(3SX)

90201-062P7-00

$5.60

15

PIN, COTTER (648)

91490-20015-00

$2.20

16

BOSS, BRAKE PEDAL

4TR-27243-00-00

Unavailable

17

BOLT (1J7)

90109-06468-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

SHAFT, BRAKE PEDAL

4TR-27212-00-00

Unavailable

20

CIRCLIP(1EY)

99009-19400-00

Unavailable

21

ROD, BRAKE

4TR-27231-00-00

Unavailable

22

PIN, CLEVIS (32H)

90240-06108-00

$8.49

23

WASHER, PLATE(3SX)

90201-062P7-00

$5.60

24

PIN, COTTER (648)

91490-20015-00

$2.20

25

SPRING, (180-27236-00)

90501-10245-00

Unavailable

26

PIN 1562723700

90249-12008-00

Unavailable

27

NUT (25K)

90179-06411-00

Unavailable

28

STAND, SIDE

4KU-27311-13-00

Unavailable

29

WASHER

5EL-27322-01-00

Unavailable

30

BOLT, WASHER BASED

90105-10012-00

Unavailable

31

COLLAR(3XP)

90387-1003G-00

Unavailable

32

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

33

SPRING, TENSION(4KU)

90506-23490-00

Unavailable

34

SPRING, TENSION

90506-29507-00

Unavailable

35

LINK, SIDE STAND

5EL-27315-00-00

Unavailable

36

HOSE (L60)

90445-16641-00

Unavailable

37

BRACKET, SIDE STAND

5BN-27321-01-00

Unavailable

38

BOLT, WASHER BASED(3FA)

90105-10727-00

Unavailable

39

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

40

BRACKET, FOOTREST 1

5BN-27412-03-00

Unavailable

41

FOOTREST

5BN-27451-00-00

Unavailable

42

COVER, FOOTREST

5BN-27413-00-00

Unavailable

43

SHAFT

3D8-27427-00-00

Unavailable

44

SPRING, RETURN

4NK-27426-00-00

Unavailable

45

CIRCLIP(53L)

99001-06600-00

Unavailable

46

MOLE 1

4WM-27496-00-00

Unavailable

47

SCREW, FLAT

98707-05010-00

Unavailable

48

BOLT, WASHER BASED

90105-102A3-00

Unavailable

49

FRONT FOOTREST ASSY (RIGHT)

5BN-27420-00-00

Unavailable

50

FOOTREST

5BN-27461-00-00

Unavailable

51

COVER, FOOTREST

5BN-27423-00-00

Unavailable

52

SHAFT

3D8-27427-00-00

Unavailable

53

SPRING, RETURN

4NK-27426-00-00

Unavailable

54

CIRCLIP(53L)

99001-06600-00

Unavailable

55

MOLE 2

4WM-27497-00-00

Unavailable

56

SCREW, FLAT

98707-05010-00

Unavailable

57

BOLT, WASHER BASED

90105-102A3-00

Unavailable

58

REAR FOOTREST ASSY 1

4TR-27430-10-00

Unavailable

59

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

60

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

61

PIN, COTTER (648)

91490-20015-00

$2.20

62

WASHER, PLATE (888)

90201-20279-00

Unavailable

63

BOLT, WASHER BASED

90105-082A5-00

Unavailable

64

REAR FOOTREST ASSY 2

4TR-27440-10-00

Unavailable

65

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

66

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

67

PIN, COTTER (648)

91490-20015-00

$2.20

68

WASHER, PLATE (888)

90201-20279-00

Unavailable

69

BOLT, WASHER BASED

90105-082A5-00

Unavailable
