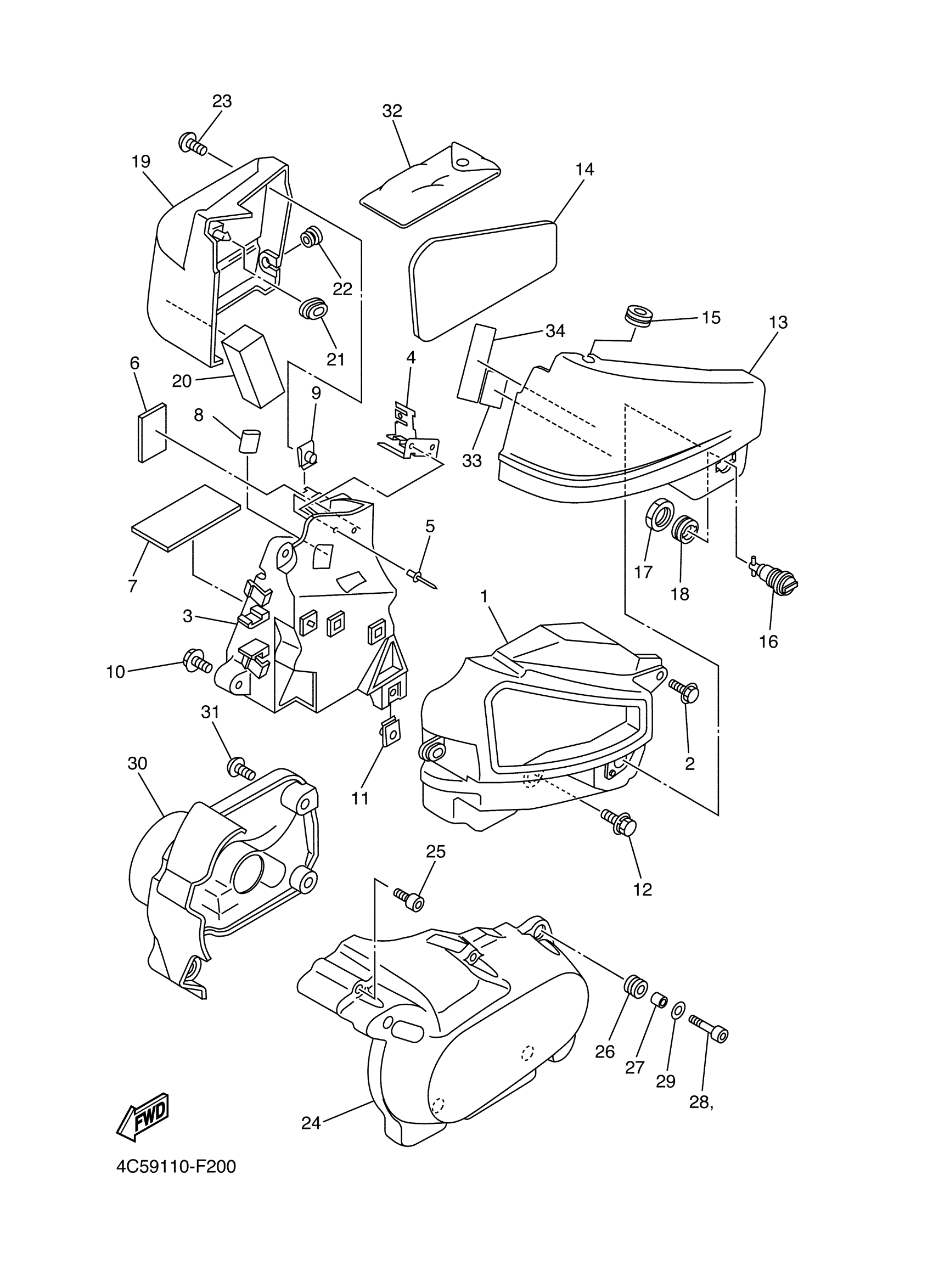

Yamaha XVS65ATZCB (V STAR 650 SILVERADO CA) 1BG2 2010 SIDE COVER Diagram

#

Description
Price

1

BOX COMP.

4TR-2160A-00-00

Unavailable

2

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

3

BOX, BATTERY

4TR-2177G-10-00

Unavailable

4

BRACKET 1

5SC-2172K-00-00

Unavailable

5

RIVET, BLIND (15A)

90267-32071-00

$1.49

6

DAMPER

22F-2139X-00-00

$7.99

7

SEAT, BATTERY

5Y1-82122-00-00

$7.99

8

HOSE(4BH)

90446-14359-00

Unavailable

9

NUT, SPRING(4ES)

90183-06069-00

Unavailable

10

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

11

NUT, SPRING (26H)

90183-06023-00

$9.49

12

BOLT, WITH WASHER(2WG)

90119-06172-00

$10.49

13

COVER, SIDE 1

5BN-21711-11-PE

Unavailable

14

DAMPER

4TR-21717-00-00

Unavailable

15

GROMMET

90480-12320-00

$8.49

16

SIDE COVER LOCK ASSY

55K-21708-00-00

Unavailable

17

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

18

GROMMET (1E6)

90480-24186-00

Unavailable

19

COVER, SIDE 2

5BN-21721-01-PE

Unavailable

20

PROTECTOR 5

84M-77555-00-00

Unavailable

21

GROMMET(4BH)

90480-01559-00

Unavailable

22

GROMMET

90480-12320-00

$8.49

23

SCREW(4DN)

90149-06302-00

Unavailable

24

COVER, SIDE 3

5BN-21731-00-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

26

GROMMET (4N0)

90480-10289-00

Unavailable

27

COLLAR(4DN)

90387-0600V-00

Unavailable

28

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

29

WASHER PLATE 256216150000

90201-06062-00

Unavailable

30

COVER, SIDE 4

4VR-21741-00-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

32

IGNITION COIL ASSY

4TR-28100-01-00

Unavailable

33

LABEL, CAUTION

4BR-24877-A0-00

Unavailable

34

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable
