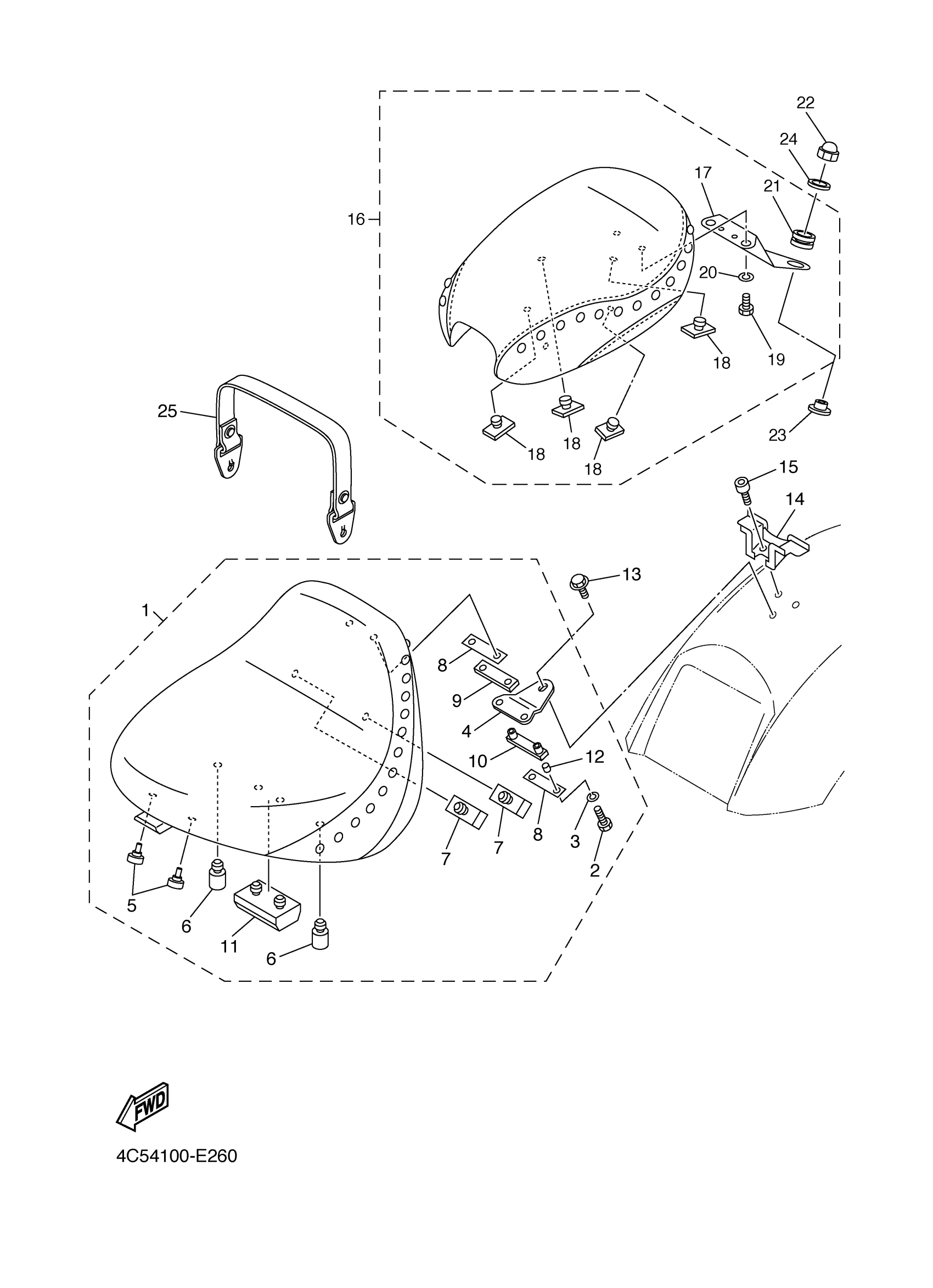

Yamaha XVS65ATZCB (V STAR 650 SILVERADO CA) 1BG2 2010 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5SC-24710-10-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92907-06100-00

$4.25

4

BRACKET, SEAT LEVER 1

5BN-2475H-00-00

Unavailable

5

DAMPER, SEAT

35T-24724-00-00

$14.49

6

DAMPER, SEAT

5BN-24723-00-00

$7.99

7

PAD, SEAT

5BN-24741-00-00

$4.32

8

WASHER

5BN-24736-00-00

$7.99

9

DAMPER, SEAT

5BN-24737-00-00

$6.99

10

DAMPER, SEAT

5BN-24747-00-00

$8.99

11

DAMPER, SEAT

5BN-24724-00-00

Unavailable

12

COLLAR

90387-067V1-00

Unavailable

13

BOLT, FLANGE(2UJ)

95024-08012-00

$8.49

14

BRACKET 3

5BN-2475K-00-00

Unavailable

15

BOLT,SOCKET

91317-06012-00

$8.49

16

TANDEM SEAT ASSY

5SC-24750-10-00

Unavailable

17

BRACKET, SEAT LEVER 2

5YS-2475J-00-00

Unavailable

18

DAMPER, SEAT

509-24724-00-00

Unavailable

19

BOLT, HEXAGON

97017-06016-00

Unavailable

20

WASHER, SPRING

92907-06100-00

$4.25

21

GROMMET

5YS-24742-00-00

Unavailable

22

NUT, CROWN

90176-08001-00

Unavailable

23

COLLAR 1

5YS-2471N-00-00

Unavailable

24

WASHER, PLATE

90201-08042-00

Unavailable

25

SEAT BAND ASSY

5BN-24720-01-00

Unavailable
