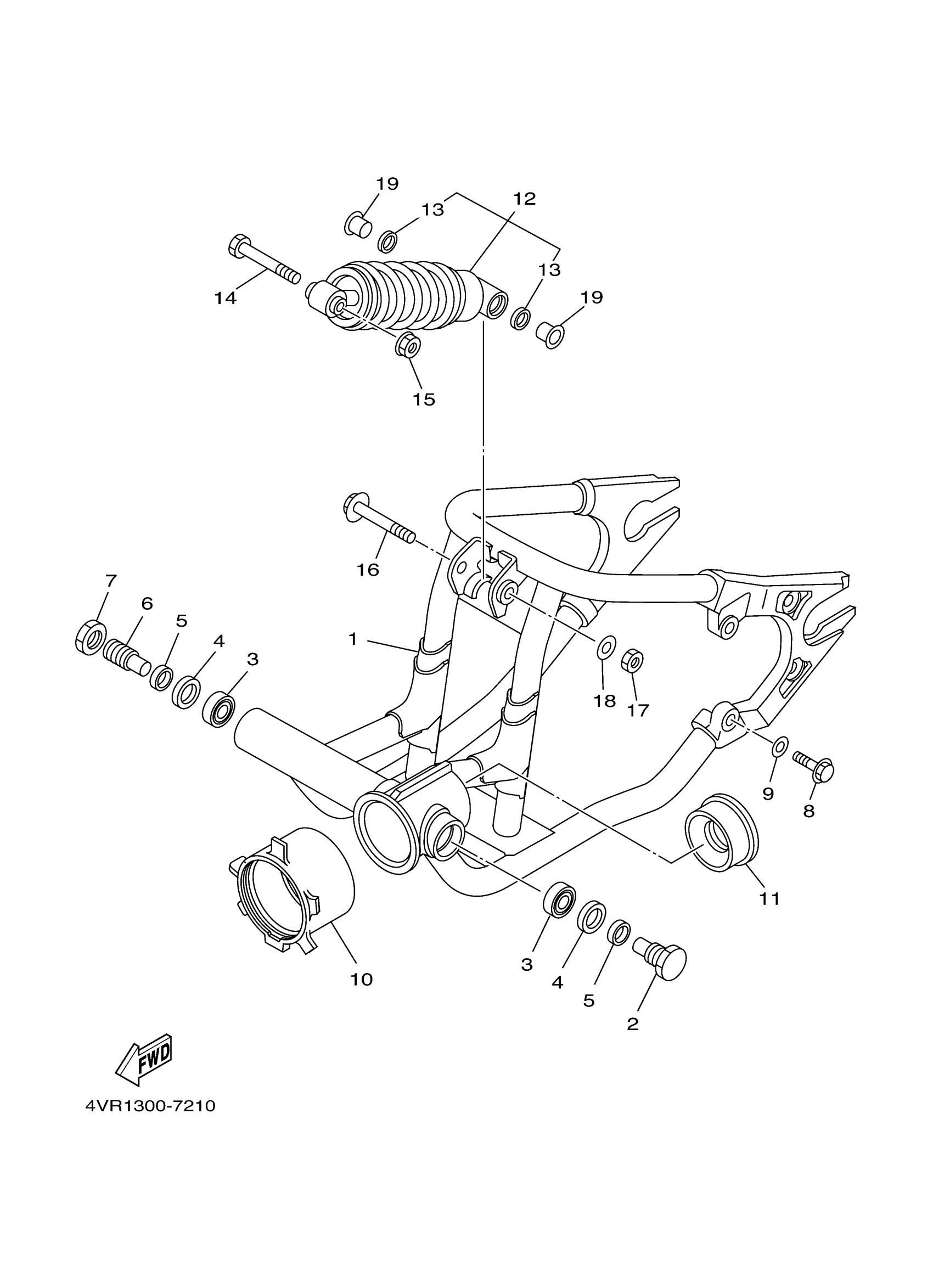

Yamaha XVS65ATWC (V STAR 650 SILVERADO CA) 4C5E 2007 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

4VR-22110-01-00

Unavailable

2

SHAFT, PIVOT

4H7-22141-00-00

$36.99

3

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

4

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

5

COLLAR

90387-17011-00

$15.99

6

SHAFT, PIVOT

15B-22141-00-00

Unavailable

7

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

8

BOLT, FLANGE

90105-101A9-00

Unavailable

9

WASHER, PLATE

90201-112U0-00

$5.60

10

BOOT, RUBBER

4TR-22189-00-00

Unavailable

11

BUSH

4VR-22184-00-00

$31.99

12

SHOCK ABSORBER ASSY, REAR

5BN-22210-40-00

Unavailable

13

OIL SEAL (2J5)

93109-18020-00

$13.49

14

BOLT(3VD)

90109-125F1-00

Unavailable

15

NUT, U FLANGE

95607-12200-00

$5.60

16

BOLT(3VD)

90109-125F1-00

Unavailable

17

NUT, U (4PM)

95617-12100-00

Unavailable

18

WASHER, PLATE (25H)

90201-124G9-00

Unavailable

19

COLLAR(3SX)

90387-123X6-00

Unavailable
