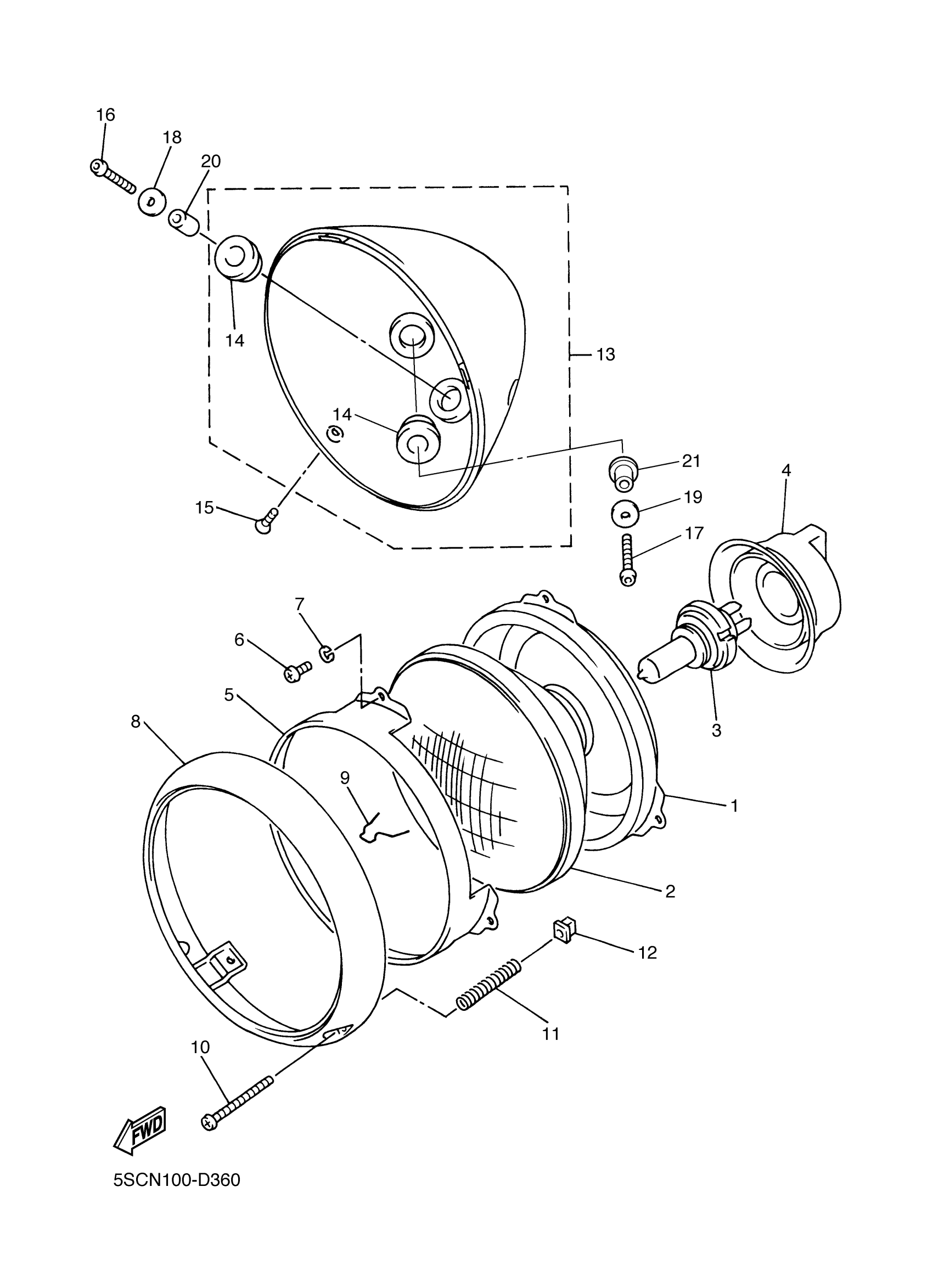

Yamaha XVS65ATWC (V STAR 650 SILVERADO CA) 4C5E 2007 HEADLIGHT Diagram

#

Description
Price

1

RING, MOUNTING

4NK-84394-00-00

$87.99

2

LENS ASSY

4NK-84320-00-00

$216.99

3

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

4

COVER, SOCKET

3SX-84397-00-00

Unavailable

5

RING, RETAINING

2F9-84395-00-00

$58.99

6

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

RIM, HEADLIGHT

4NK-84315-00-00

$157.99

9

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

Unavailable

10

SCREW 214841316100

90157-04001-00

$8.49

11

SPRING, ADJUST

341-84332-60-00

$9.99

12

NUT, ADJUST

198-84334-60-00

$7.99

13

BODY ASSY

5BN-84330-00-00

Unavailable

14

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

15

SCREW, FLAT

98704-05012-00

$3.77

16

BOLT, BUTTON HEAD

92017-06025-00

Unavailable

17

BOLT, BUTTON

92017-06030-00

Unavailable

18

WASHER, PLATE

90201-06086-00

Unavailable

19

WASHER, PLATE (8H9)

90201-06727-00

Unavailable

20

COLLAR(4NK)

90387-0610J-00

Unavailable

21

COLLAR

90387-06093-00

Unavailable
