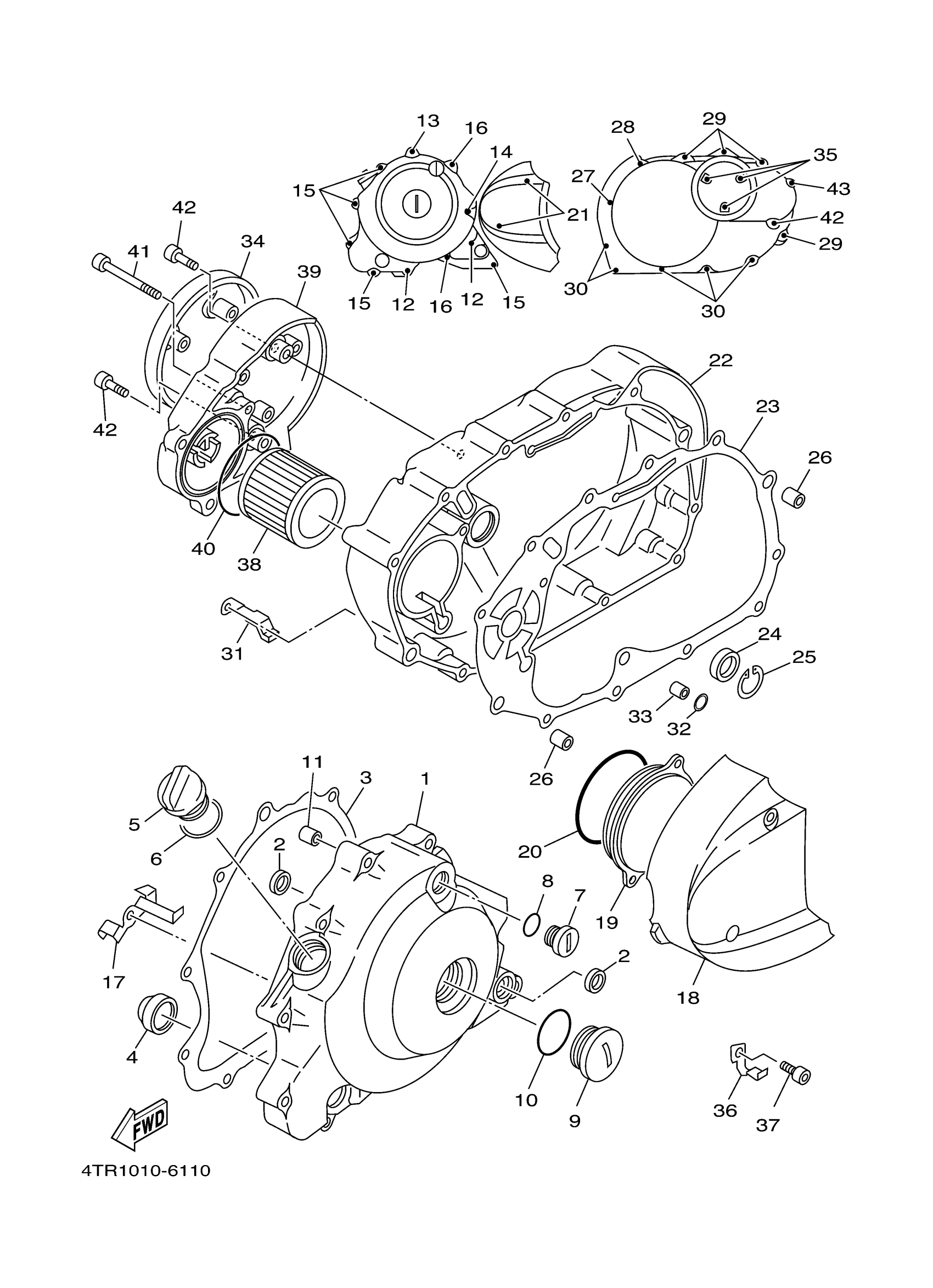

Yamaha XVS65ATWC (V STAR 650 SILVERADO CA) 4C5E 2007 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4TR-15411-01-00

Unavailable

2

OIL SEAL

93109-12075-00

$10.49

3

GASKET, CRANKCASE COVER 1

4VR-15451-00-00

$28.99

4

GAUGE, LEVEL

2H7-15361-00-00

$97.99

5

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

6

O-RING(1KT)

93210-27778-00

$8.49

7

PLUG, STRAIGHT SCREW

90340-14153-00

Unavailable

8

O-RING (2H9)

93210-14369-00

$7.49

9

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

$15.49

10

O-RING (341)

93210-32172-00

$7.49

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

BOLT, SOCKET

91314-06040-00

$8.49

13

BOLT, SOCKET

91314-06045-00

$8.49

14

BOLT,SOCKET

91314-06055-00

$8.49

15

BOLT, SOCKET

91314-06030-00

$8.49

16

BOLT, SOCKET

91314-06035-00

Unavailable

17

CLAMP 2

3BT-15484-00-00

Unavailable

18

COVER, GENERATOR

4TR-15415-00-00

Unavailable

19

COVER

4TR-15424-00-00

Unavailable

20

O-RING (1J7)

93210-74316-00

Unavailable

21

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

22

COVER, CRANKCASE 2

4TR-15421-00-00

Unavailable

23

GASKET, CRANKCASE COVER 2

4VR-15461-00-00

Unavailable

24

OIL SEAL (14X25X5.5-583)

93101-14089-00

Unavailable

25

CIRCLIP

99009-25500-00

Unavailable

26

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

27

BOLT, SOCKET

91314-06065-00

Unavailable

28

BOLT,SOCKET

91314-06055-00

$8.49

29

BOLT, SOCKET

91314-06045-00

$8.49

30

BOLT, SOCKET

91314-06030-00

$8.49

31

CLAMP (22U)

90462-10115-00

Unavailable

32

O-RING (22U)

93210-15566-00

Unavailable

33

PIN, DOWEL(MH0)

91815-16017-00

Unavailable

34

COVER 2

4VR-15423-00-00

Unavailable

35

BOLT, BUTTON HEAD(4TR)

92014-06035-00

Unavailable

36

CLAMP

90462-08070-00

Unavailable

37

BOLT,SOCKET

91317-06012-00

Unavailable

38

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

Unavailable

39

COVER, OIL ELEMENT

4TR-13447-01-00

Unavailable

40

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

41

BOLT, SOCKET

91314-06070-00

Unavailable

42

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

43

BOLT, SOCKET

91314-06070-00

Unavailable
