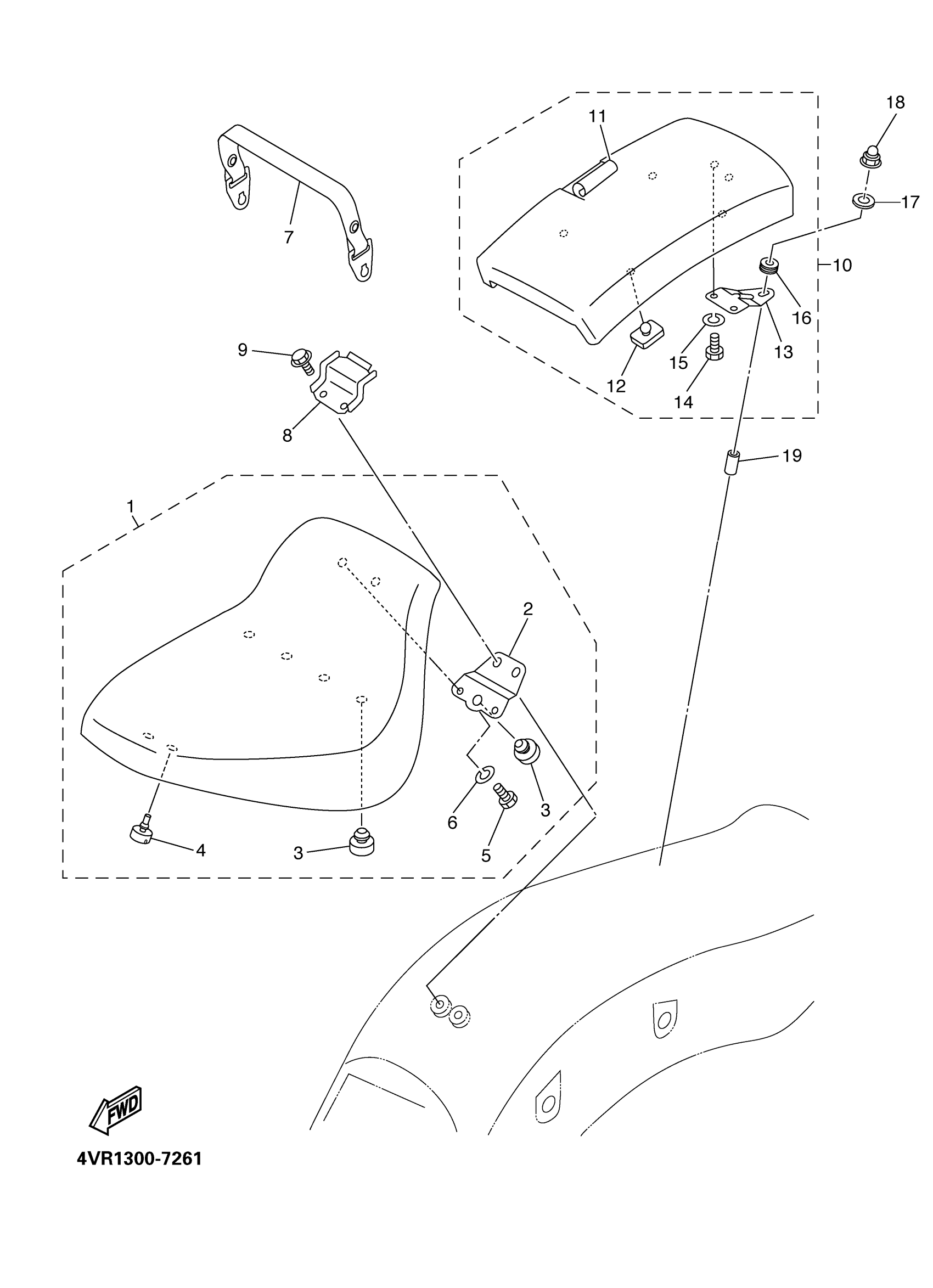

Yamaha XVS650TC-F (V STAR CUSTOM WFLAMES CA) 3B62 2005 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
4VR-24710-20-00
Unavailable
2
BRACKET, SEAT LEVER 1
4TR-2475H-00-00
Unavailable
8
BRACKET 3
4TR-2475K-00-00
Unavailable
10
TANDEM SEAT ASSY
4TR-24750-32-00
Unavailable
11
COVER, TANDEM SEAT
4TR-24751-10-00
Unavailable
13
BRACKET, SEAT LEVER 2
5FB-2475J-01-00
Unavailable
16
GROMMET
5YS-24742-00-00
Unavailable
17
WASHER, PLATE
90201-08042-00
Unavailable
18
NUT, CROWN
90176-08001-00
Unavailable
19
COLLAR
90387-081M9-00
Unavailable
