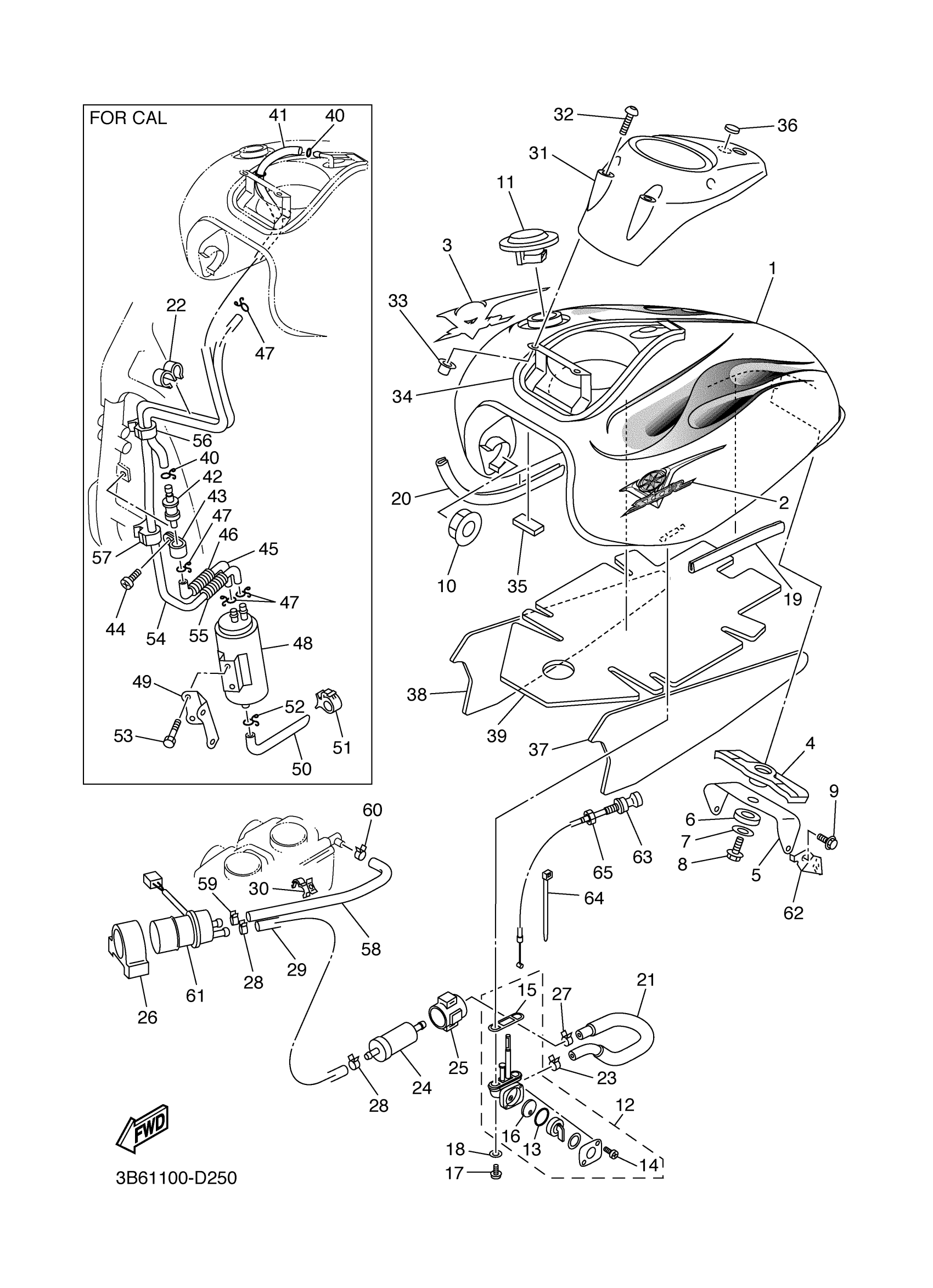

Yamaha XVS650TC-F (V STAR CUSTOM WFLAMES CA) 3B62 2005 FUEL TANK Diagram
#
1
FUEL TANK COMP. (DARK PURPLISH BLUE METALLIC L)
4TR-Y2410-U1-W3
Unavailable
1
FUEL TANK COMP. (DARK PURPLISH BLUE METALLIC L)
5SC-Y2410-10-09
Unavailable
2
EMBLEM
5FB-2416B-01-00
Unavailable
4
DAMPER, LOCATING 2
4TR-24182-00-00
Unavailable
5
BRACKET, TANK FITTING
4TR-2413Y-00-00
Unavailable
7
WASHER
90209-06011-00
Unavailable
14
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
15
O-RING
4X8-24512-00-00
Unavailable
16
VALVE PACKING
3AC-24523-00-00
Unavailable
17
SCREW 256241430000
90149-06011-00
Unavailable
18
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
19
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
20
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
21
PIPE 3
4TR-24313-00-00
Unavailable
22
CLAMP(6M7)
90464-09M31-00
Unavailable
23
CLIP
90467-10038-00
Unavailable
24
FILTER ASSY
1FK-24560-10-00
Unavailable
25
BRACKET, FILTER
1FK-24566-00-00
Unavailable
26
BAND 1
4EB-24398-00-00
Unavailable
27
CLIP (7K7)
90467-11044-00
Unavailable
28
CLIP (7K7)
90467-11044-00
Unavailable
29
PIPE, FUEL
4TR-24311-00-00
Unavailable
30
CLAMP(4HM)
90464-15192-00
Unavailable
31
COVER, TOP
4TR-2171A-00-00
Unavailable
32
SCREW(3YF)
90149-05299-00
Unavailable
33
NUT(1KT)
90179-05523-00
Unavailable
34
SEAL
4TR-2414G-00-00
Unavailable
35
DAMPER, SIDE COVER
3XV-21717-00-00
Unavailable
36
EMBLEM
4TR-2413B-00-00
Unavailable
37
DAMPER, PLATE 1
5SC-2414H-00-00
Unavailable
38
DAMPER, PLATE 2
5SC-2414J-00-00
Unavailable
39
DAMPER, PLATE 3
5SC-2414K-00-00
Unavailable
40
CLIP
90467-100A1-00
Unavailable
41
PIPE 2
5BN-24312-10-00
Unavailable
42
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
43
CLAMP
90464-15014-00
Unavailable
44
SCREW, BINDING
98907-05010-00
Unavailable
45
PIPE 4
5BN-24314-10-00
Unavailable
46
PROTECTOR, PIPE
5BN-24327-00-00
Unavailable
47
CLIP
90467-100A1-00
Unavailable
48
CANISTER ASSY
2JU-24170-00-00
Unavailable
49
BRACKET, CANISTOR
5BN-2419F-00-00
Unavailable
50
PIPE 5
5BN-24315-10-00
Unavailable
51
CLAMP(4HM)
90464-15192-00
Unavailable
52
CLIP
90467-100A1-00
Unavailable
53
BOLT, FLANGE
95817-06010-00
Unavailable
54
PIPE 3
5BN-24313-00-00
Unavailable
55
PROTECTOR, PIPE
5BN-24327-00-00
Unavailable
56
CLAMP(4GY)
90464-20191-00
Unavailable
57
CLAMP(4HM)
90464-15192-00
Unavailable
58
HOSE
4TR-14294-00-00
Unavailable
59
CLIP (7K7)
90467-11044-00
Unavailable
60
CLIP(3GM)
90467-12124-00
Unavailable
61
FUEL PUMP COMP.
5KS-13907-01-00
Unavailable
62
HOLDER, WIRE
4TR-2637G-00-00
Unavailable
63
CABLE, STARTER 1
4TR-26331-00-00
Unavailable
64
BAND
1UA-82591-00-00
Unavailable
65
NUT
1VJ-26333-00-00
Unavailable
