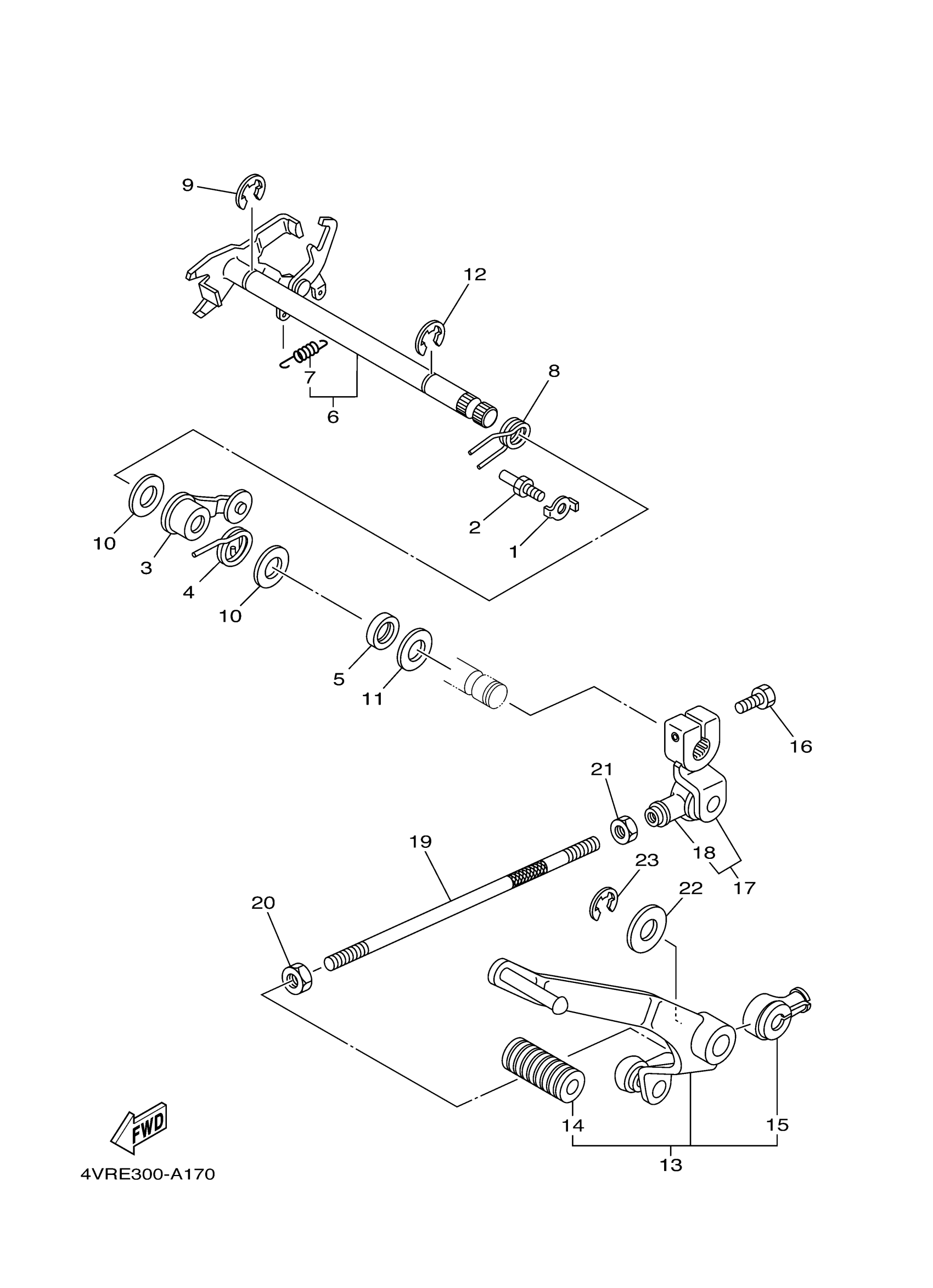

Yamaha XVS650RC (V-STAR CUSTOM CA) 5FBL 2003 SHIFT SHAFT Diagram

#

Description
Price

1

WASHER, LOCK (4G0)

90215-18178-00

Unavailable

2

STOPPER, SCREW

5VK-18127-00-00

Unavailable

3

STOPPER LEVER ASSY

4TR-18140-00-00

Unavailable

4

SPRING, TORSION(4TR)

90508-290B5-00

$5.60

5

SEAL, OIL (30X)

93102-12321-00

$12.49

6

SHIFT LEVER ASSY

4TR-18120-00-00

Unavailable

7

SPRING, TENSION (4H7)

90506-08227-00

$4.19

8

SPRING, TORSION (11H)

90508-32536-00

$11.49

9

CIRCLIP

99006-10600-00

$9.49

10

WASHER

90201-12588-00

$7.49

11

WASHER, PLATE (353)

90201-12575-00

$8.49

12

CIRCLIP

99006-10600-00

$9.49

13

SHIFT PEDAL ASSY

4TR-18110-01-00

$88.99

14

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

15

COVER, DUST

2H9-18154-00-00

$5.49

16

BOLT(3DM)

97024-06020-00

Unavailable

17

ARM, SHIFT

4TR-18112-00-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

$5.49

19

ROD, SHIFT

3SX-18115-10-00

Unavailable

20

NUT (2H9)

90170-06228-00

Unavailable

21

NUT

9538R-06700-00

Unavailable

22

WASHER PLATE 278111750000

90201-12362-00

Unavailable

23

CIRCLIP(10Y)

99009-12400-00

Unavailable
