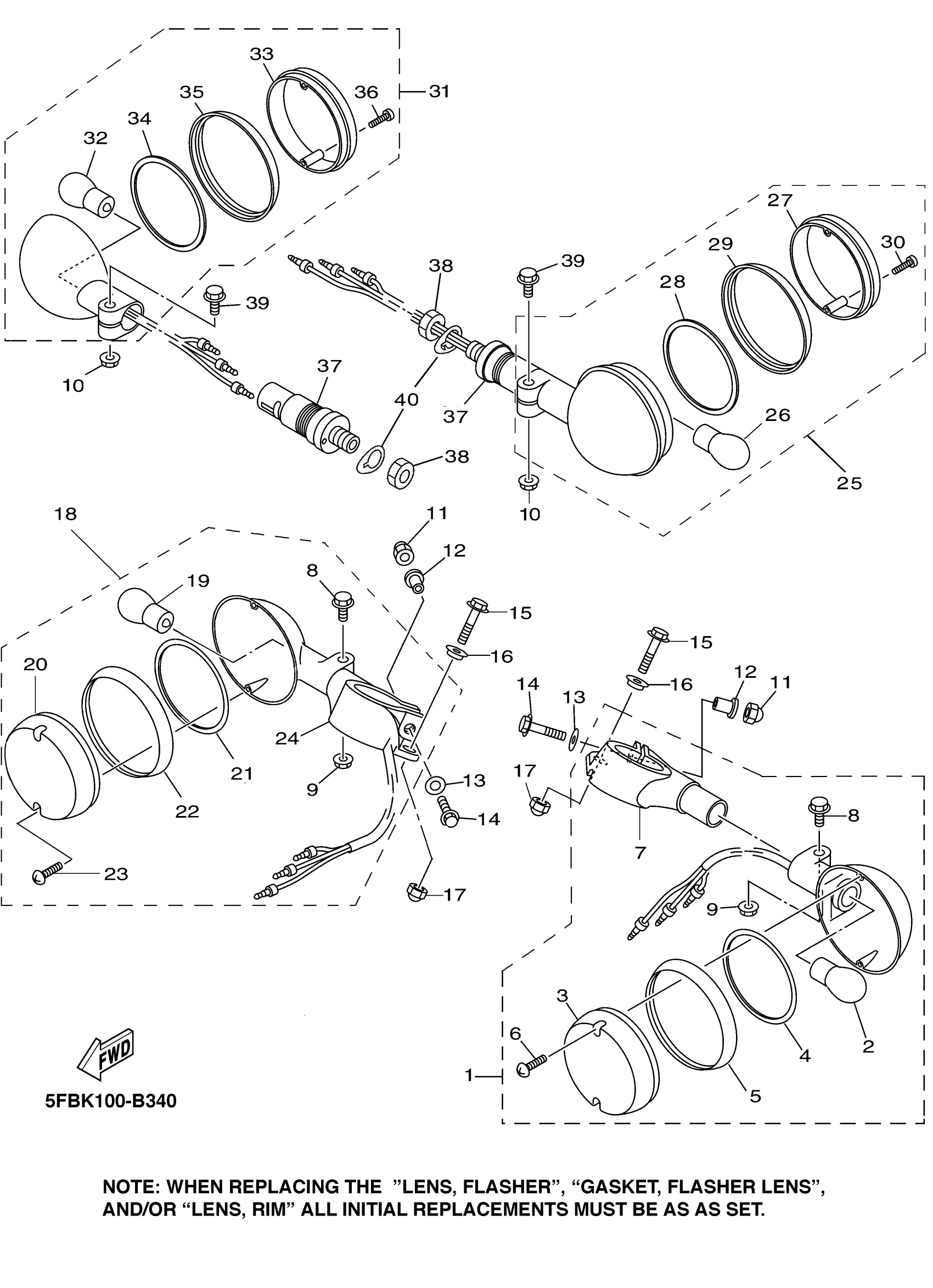

Yamaha XVS650RC (V-STAR CUSTOM CA) 5FBL 2003 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5FB-83310-01-00

$79.28

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER

42X-83312-10-00

$12.00

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

LENS, RIM

1D6-83363-00-00

$21.88

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

BASE, FLASHER 1

4VR-83314-00-00

Unavailable

8

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

9

NUT, FLANGE(7NB)

95780-06500-00

$1.88

10

NUT, FLANGE(7NB)

95780-06500-00

$1.88

11

NUT, CROWN(1FN)

90176-06055-00

$3.73

12

COLLAR

90387-06076-00

$5.23

13

WASHER, PLATE

90201-06045-00

$5.76

14

BOLT, FLANGE

95817-06025-00

Unavailable

15

BOLT, SMALL FLANGE

95027-06030-00

$3.40

16

SPACER (25G)

90560-06244-00

Unavailable

17

NUT (J17)

95380-06800-00

Unavailable

18

FRONT FLASHER LIGHT ASSY 2

5FB-83320-01-00

Unavailable

19

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

20

LENS, FLASHER

42X-83312-20-00

Unavailable

21

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

22

LENS, RIM

1D6-83363-10-00

Unavailable

23

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

24

BASE, FLASHER 2

4VR-83324-00-00

Unavailable

25

REAR FLASHER LIGHT ASSY 1

142X-83330-K1-00

Unavailable

26

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

27

LENS, FLASHER

42X-83312-20-00

Unavailable

28

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

29

LENS, RIM

1D6-83363-00-00

$21.88

30

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

31

FLASHER LIGHT ASSY 2

42X-83340-K1-00

Unavailable

32

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

33

LENS, FLASHER

42X-83312-10-00

$12.00

34

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

35

LENS, RIM

1D6-83363-00-00

$21.88

36

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

37

STAY, FLASHER 1

1AA-83318-00-00

Unavailable

38

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

39

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

40

WASHER

4TR-83348-00-00

Unavailable
