2003 Yamaha V-Star Custom CA (XVS650RC) Electrical 1 Diagram

← All diagrams

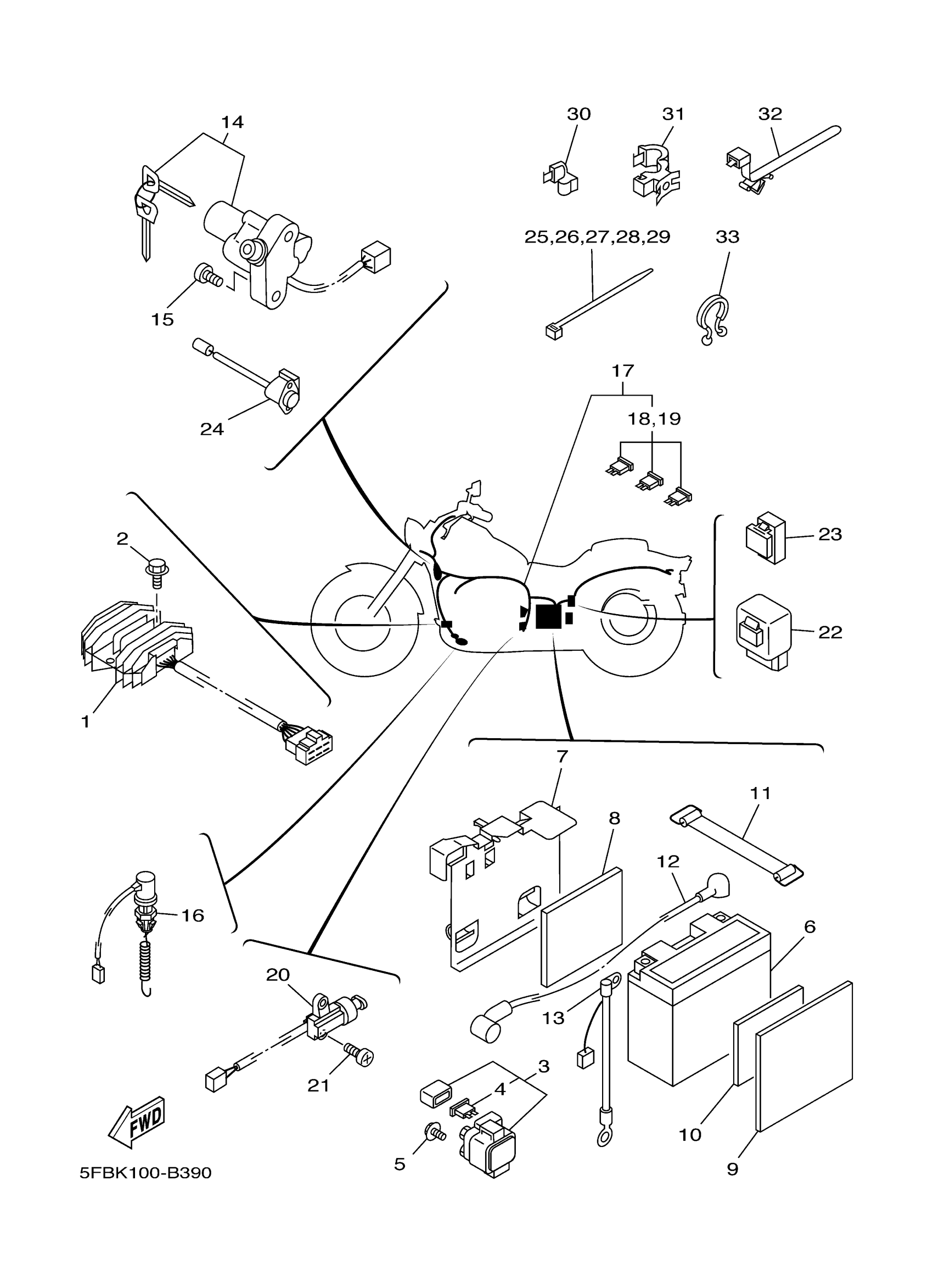

Find the part on the Electrical 1 diagram for your 2003 Yamaha V-Star Custom CA (XVS650RC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha V-Star Custom CA (XVS650RC) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RECTIFIER & REGULATOR ASSY

5KP-81960-00-00

1

$215.41

In stock

2

BOLT, FLANGE

95814-06020-00

1

$6.68

In stock

3

1

$99.43

In stock

4

FUSE (12V 30A)

1AE-82151-00-00

1
Out of stock

5

BOLT, SMALL FLANGE

95027-06008-00

1

$5.60

In stock

6

GT12B4 GS BATTERY - FA

GT1-2B400-00-00

1
Out of stock

7

COVER, BATTERY

5BN-82129-00-00

1

$53.03

In stock

8

DAMPER 1

29N-14425-00-00

1
Out of stock

9

PLATE

4VR-2176E-00-00

—

$23.12

In stock

10

DAMPER 1

29N-14425-00-00

1
Out of stock

11

BAND, BATTERY

133-82131-00-00

1

$21.78

In stock

12

WIRE, PLUS LEAD

5BN-82115-00-00

—

$51.02

In stock

13

WIRE, MINUS LEAD

5BN-82116-00-00

—

$27.95

In stock

14

MAIN SWITCH STEERING LOCK

4TR-82501-02-00

1
Out of stock

15

SCREW

90149-08002-00

1

$7.38

In stock

16

STOP SWITCH ASSY

5KP-82530-01-00

—
Out of stock

17

WIRE HARNESS ASSY

5BN-82590-40-00

1
Out of stock

18

FUSE (12V 15A)

36Y-82151-00-00

—

$4.08

In stock

19

FUSE (10A)

42X-82151-00-00

—

$2.16

In stock

20

SWITCH, SIDE STAND

3LD-82566-91-00

1
Out of stock

21

SCREW, PAN HEAD

98507-05014-00

—

$6.18

In stock

22

RELAY ASSY (5KP-00)

5KP-81950-00-00

—

$104.53

In stock

23

RELAY ASSY (1UY-92)

1UY-81950-92-00

—
Out of stock

24

THERMO SWITCH ASSY

5FU-82560-30-00

—

$46.35

In stock

25

BAND

1UA-82591-00-00

—
Out of stock

26

BAND

1UA-82591-00-00

—
Out of stock

27

BAND

1UA-82591-00-00

—
Out of stock

28

BAND

1UA-82591-00-00

—
Out of stock

29

BAND

1UA-82591-00-00

—
Out of stock

30

CLAMP(4GY)

90464-05188-00

—
Out of stock

31

CLAMP(4GY)

90464-20191-00

—

$7.35

In stock

32

CLAMP(4KJ)

90464-20213-00

—
Out of stock

33

CLAMP

90464-25267-00

—

$5.62

In stock
