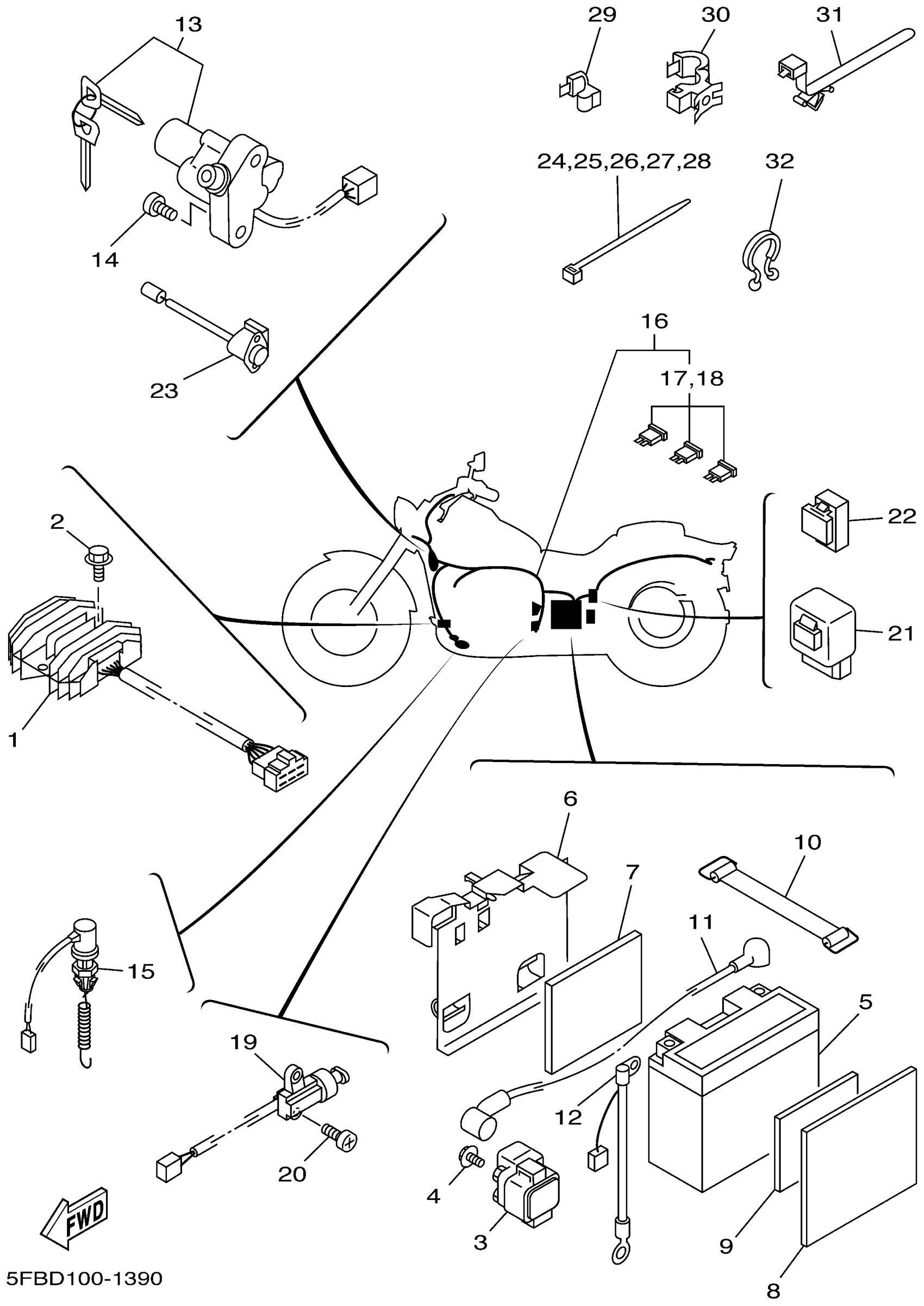

Yamaha XVS650PC (V-STAR CUSTOM CA) 5FBH 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

5KP-81960-00-00

$250.99

2

BOLT, FLANGE

95814-06020-00

$8.49

3

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

$113.99

4

BOLT, SMALL FLANGE

95027-06008-00

$7.99

5

GT12B4 GS BATTERY - FA

GT1-2B400-00-00

Unavailable

6

COVER, BATTERY

5BN-82129-00-00

$59.99

7

DAMPER 1

29N-14425-00-00

$7.99

8

PLATE

4VR-2176E-00-00

Unavailable

9

DAMPER 1

29N-14425-00-00

$7.99

10

BAND, BATTERY

133-82131-00-00

$27.99

11

WIRE, PLUS LEAD

5BN-82115-00-00

Unavailable

12

WIRE, MINUS LEAD

5BN-82116-00-00

Unavailable

13

MAIN SWITCH STEERING LOCK

4TR-82501-02-00

$309.99

14

SCREW

90149-08002-00

$8.49

15

STOP SWITCH ASSY

5KP-82530-01-00

Unavailable

16

WIRE HARNESS ASSY

5BN-82590-40-00

Unavailable

17

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

18

FUSE (10A)

42X-82151-00-00

Unavailable

19

SWITCH, SIDE STAND

3LD-82566-91-00

Unavailable

20

SCREW, PAN HEAD

98507-05014-00

Unavailable

21

RELAY ASSY (5KP-00)

5KP-81950-00-00

Unavailable

22

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

23

THERMO SWITCH ASSY

5FU-82560-30-00

Unavailable

24

BAND

1UA-82591-00-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

BAND

1UA-82591-00-00

Unavailable

28

BAND

1UA-82591-00-00

Unavailable

29

CLAMP(4GY)

90464-05188-00

Unavailable

30

CLAMP(4GY)

90464-20191-00

Unavailable

31

CLAMP(4KJ)

90464-20213-00

Unavailable

32

CLAMP

90464-25267-00

Unavailable
