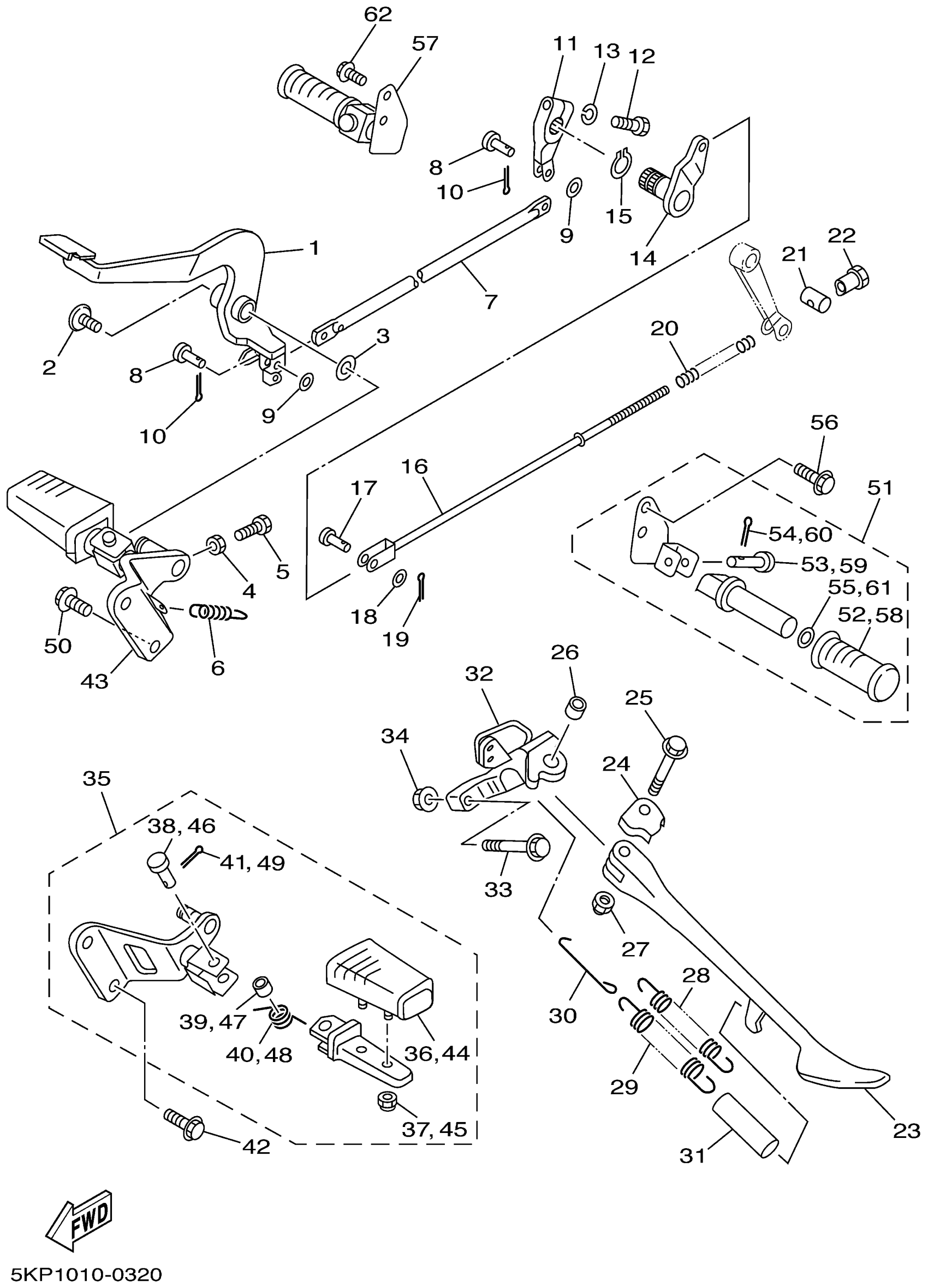

Yamaha XVS650NC (V-STAR CUSTOM CA) 5FBE 2001 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5KP-27211-01-00

Unavailable

2

BOLT, HEXAGON SOCKET HEAD

90110-06119-00

$5.60

3

WASHER, WAVE(6T4)

90206-14086-00

$8.49

4

NUT(JN5)

95317-06700-00

$8.49

5

BOLT, HEXAGON

97017-06025-00

$4.24

6

SPRING, TENSION (2X3)

90506-20193-00

$14.99

7

ROD 1

5KP-27247-00-00

Unavailable

8

PIN, CLEVIS (32H)

90240-06108-00

$8.49

9

WASHER, PLATE(3SX)

90201-062P7-00

$5.60

10

PIN, COTTER (648)

91490-20015-00

$2.20

11

BOSS, BRAKE PEDAL

4TR-27243-00-00

$72.99

12

BOLT (1J7)

90109-06468-00

$7.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

SHAFT, BRAKE PEDAL

4TR-27212-00-00

Unavailable

15

CIRCLIP(1EY)

99009-19400-00

$8.49

16

ROD, BRAKE

4TR-27231-00-00

Unavailable

17

PIN, CLEVIS (32H)

90240-06108-00

$8.49

18

WASHER, PLATE(3SX)

90201-062P7-00

$5.60

19

PIN, COTTER (648)

91490-20015-00

$2.20

20

SPRING, (180-27236-00)

90501-10245-00

Unavailable

21

PIN 1562723700

90249-12008-00

Unavailable

22

NUT (25K)

90179-06411-00

Unavailable

23

STAND, SIDE

4KU-27311-13-00

Unavailable

24

WASHER

5KP-27322-00-00

Unavailable

25

BOLT, WASHER BASED(4KD)

90105-10728-00

Unavailable

26

COLLAR(3XP)

90387-1003G-00

Unavailable

27

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

28

SPRING, TENSION(4KU)

90506-23490-00

Unavailable

29

SPRING, TENSION

90506-29507-00

Unavailable

30

LINK, SIDE STAND

5EL-27315-00-00

Unavailable

31

HOSE (L60)

90445-16641-00

Unavailable

32

BRACKET, SIDE STAND

5KP-27321-00-00

Unavailable

33

BOLT, WASHER BASED(3FA)

90105-10727-00

Unavailable

34

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

35

FRONT FOOTREST ASSY (LEFT)

5KP-27410-01-00

Unavailable

36

COVER, FOOTREST

4VR-27413-00-00

Unavailable

37

NUT, SELF-LOCKING

95617-06100-00

Unavailable

38

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

39

COLLAR(1HX)

90387-087K5-00

Unavailable

40

SPRING, TORSION(1MY)

90508-18696-00

Unavailable

41

PIN, COTTER

91490-25020-00

Unavailable

42

BOLT, WASHER BASED

90105-102A3-00

Unavailable

43

FRONT FOOTREST ASSY (RIGHT)

5KP-27420-01-00

Unavailable

44

COVER, FOOTREST

4VR-27413-00-00

Unavailable

45

NUT, SELF-LOCKING

95617-06100-00

Unavailable

46

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

47

COLLAR(1HX)

90387-087K5-00

Unavailable

48

SPRING, TORSION(1MY)

90508-18696-00

Unavailable

49

PIN, COTTER

91490-25020-00

Unavailable

50

BOLT, WASHER BASED

90105-102A3-00

Unavailable

51

REAR FOOTREST ASSY 1

5BN-27430-00-00

Unavailable

52

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

53

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

54

PIN, COTTER (648)

91490-20015-00

$2.20

55

WASHER, PLATE (888)

90201-20279-00

Unavailable

56

BOLT, WASHER BASED

90105-082A5-00

Unavailable

57

REAR FOOTREST ASSY 2

5BN-27440-00-00

Unavailable

58

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

59

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

60

PIN, COTTER (648)

91490-20015-00

$2.20

61

WASHER, PLATE (888)

90201-20279-00

Unavailable

62

BOLT, WASHER BASED

90105-082A5-00

Unavailable
