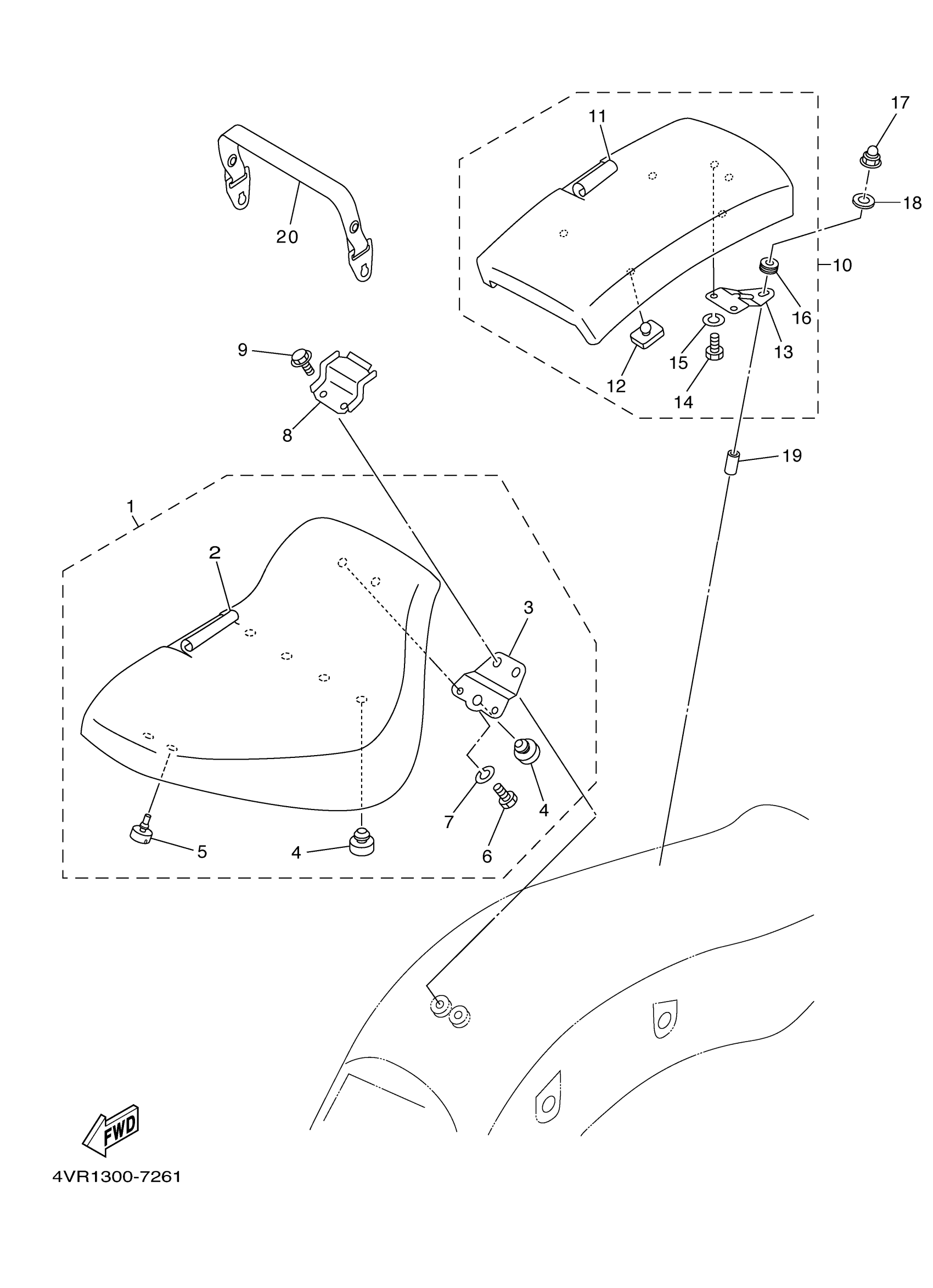

Yamaha XVS650NC (V-STAR CUSTOM CA) 5FBE 2001 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
4VR-24710-10-00
Unavailable
2
. COVER, SINGLE SEAT
4VR-24711-00-00
Unavailable
3
BRACKET, SEAT LEVER 1
4TR-2475H-00-00
Unavailable
8
BRACKET 3
4TR-2475K-00-00
Unavailable
10
TANDEM SEAT ASSY
4TR-24750-22-00
Unavailable
11
.. COVER, TANDEM SEAT
4TR-24751-21-00
Unavailable
13
BRACKET, SEAT LEVER 2
5FB-2475J-01-00
Unavailable
16
GROMMET
5YS-24742-00-00
Unavailable
17
NUT, CROWN
90176-08001-00
Unavailable
18
WASHER, PLATE
90201-08042-00
Unavailable
19
COLLAR
90387-081M9-00
Unavailable
20
Seat Band Assy
4TR-24720-01-00
Unavailable
