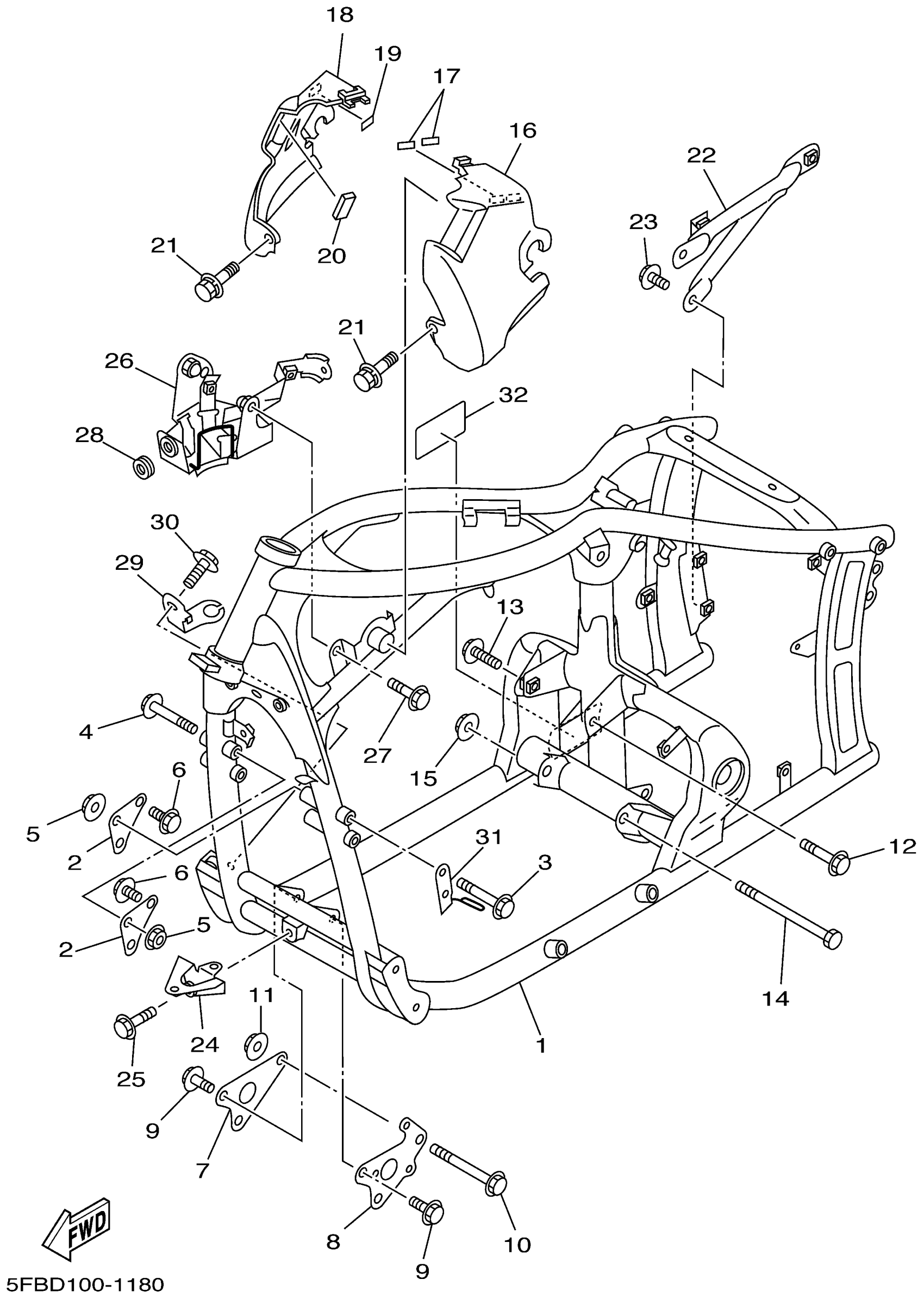

Yamaha XVS650NC (V-STAR CUSTOM CA) 5FBE 2001 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4VR-21110-20-00

Unavailable

1

FRAME COMP.

5BN-21110-10-00

Unavailable

2

DOWNTUBE

5KP-21191-10-00

Unavailable

3

STAY, ENGINE 2

4VR-21315-00-00

Unavailable

4

BOLT, WASHER BASED

90105-082A4-00

$3.55

5

BOLT, WASHER BASED(4JG)

90105-08721-00

$4.46

6

NUT

90179-08684-00

$7.49

7

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

8

STAY, ENGINE 3

4VR-21317-00-00

Unavailable

9

STAY, ENGINE 3

5BN-21317-00-00

$70.99

10

BOLT, FLANGE(4HM)

95814-08020-00

$8.49

11

BOLT, FLANGE(4TR)

95814-10100-00

$7.49

12

NUT, FLANGE(3BM)

95704-10500-00

$4.29

13

BOLT, WASHER BASED(4EB)

90105-10788-00

$28.99

14

BOLT, FLANGE

95817-10060-00

$7.49

15

BOLT(3GG)

90101-12694-00

Unavailable

16

NUT(3EF)

90179-12657-00

Unavailable

17

COVER, SIDE 5

4TR-2171E-01-00

Unavailable

18

DAMPER 1

3TB-28217-00-00

Unavailable

19

COVER, SIDE 6

4TR-2171X-00-00

Unavailable

20

DAMPER 1

3TB-28217-00-00

Unavailable

21

DAMPER

4SV-28372-00-00

Unavailable

22

BOLT, WITH WASHER

90119-06236-00

Unavailable

23

STAY, MUFFLER

4TR-21460-30-00

Unavailable

24

BOLT, FLANGE

95817-08014-00

Unavailable

25

STAY 1

4VR-28356-01-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

BRACKET, FUEL PUMP

4TR-24491-02-00

Unavailable

28

BOLT, FLANGE

95817-06014-00

Unavailable

29

GROMMET

90480-12320-00

Unavailable

30

STAY, STOP SWITCH

5KP-2144G-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable

32

HOLDER, CABLE

4VR-21161-00-00

Unavailable

33

PLATE, EPA 2 (CALIFORNIA)

5FB-2179R-00-00

Unavailable

33

PLATE, EPA 1 (NON CALIFORNIA)

5FB-2179V-00-00

Unavailable
