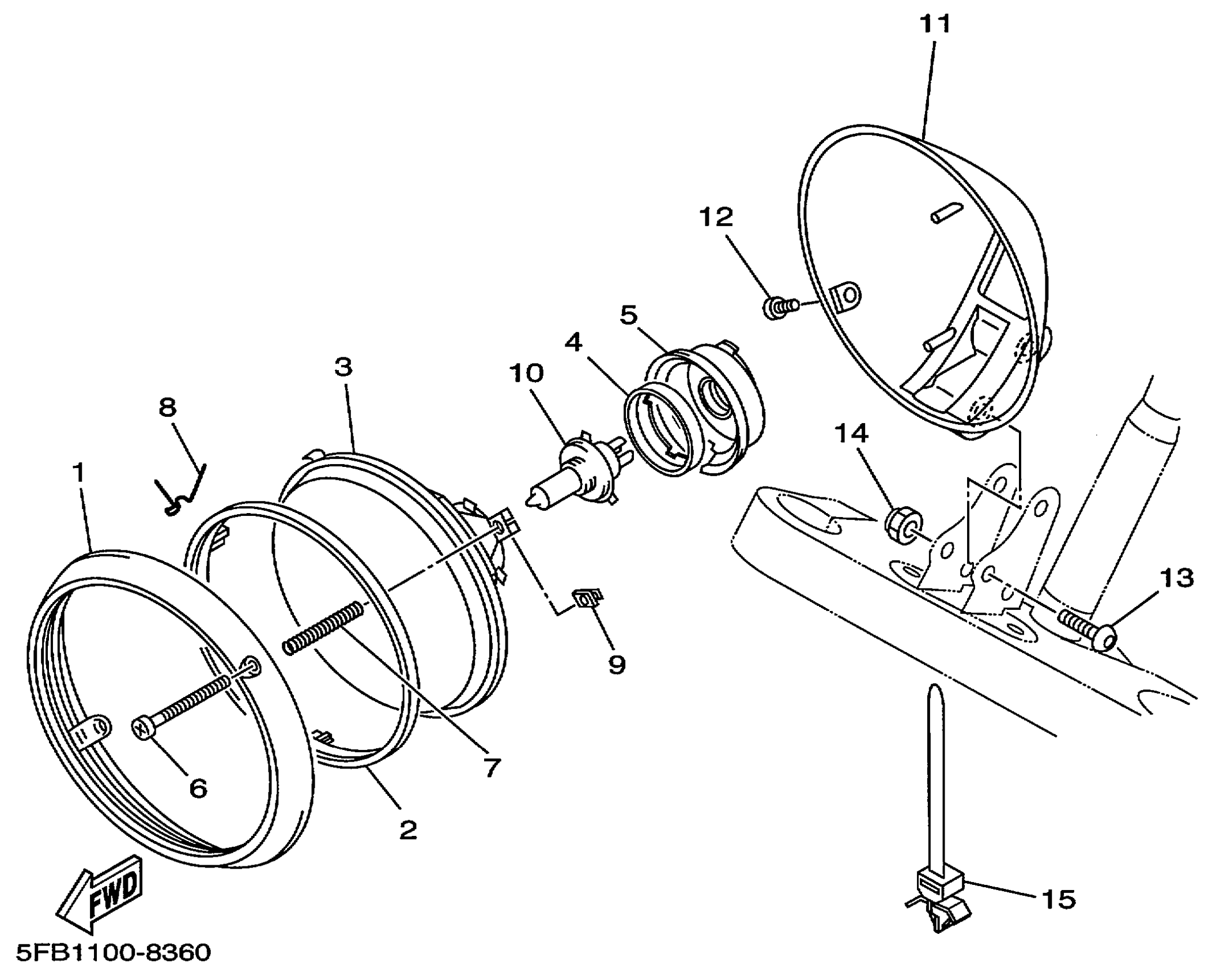

Yamaha XVS650LC (V-STAR CUSTOM CA) 5FB8 1999 HEADLIGHT Diagram

#

Description
Price

1

RIM, HEADLIGHT

42X-84315-01-00

$111.64

2

RING, RETAINING

5Y3-84395-00-00

Unavailable

3

LENS, HEADLIGHT

42X-84321-A0-00

$114.61

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$27.39

6

SCREW 214841316100

90157-04001-00

$5.00

7

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$8.61

8

SPRING, SET

42X-84124-60-00

$6.33

9

NUT, ADJUST

198-84334-60-00

$5.99

10

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

11

BODY ASSY

4TR-84330-00-00

Unavailable

12

SCREW

90149-05317-00

Unavailable

13

BOLT, BUTTON HEAD(4TR)

92014-06045-00

$2.47

14

NUT, CROWN (35R)

90176-06047-00

$6.40

15

CLAMP(2TV)

90464-10112-00

$5.76
