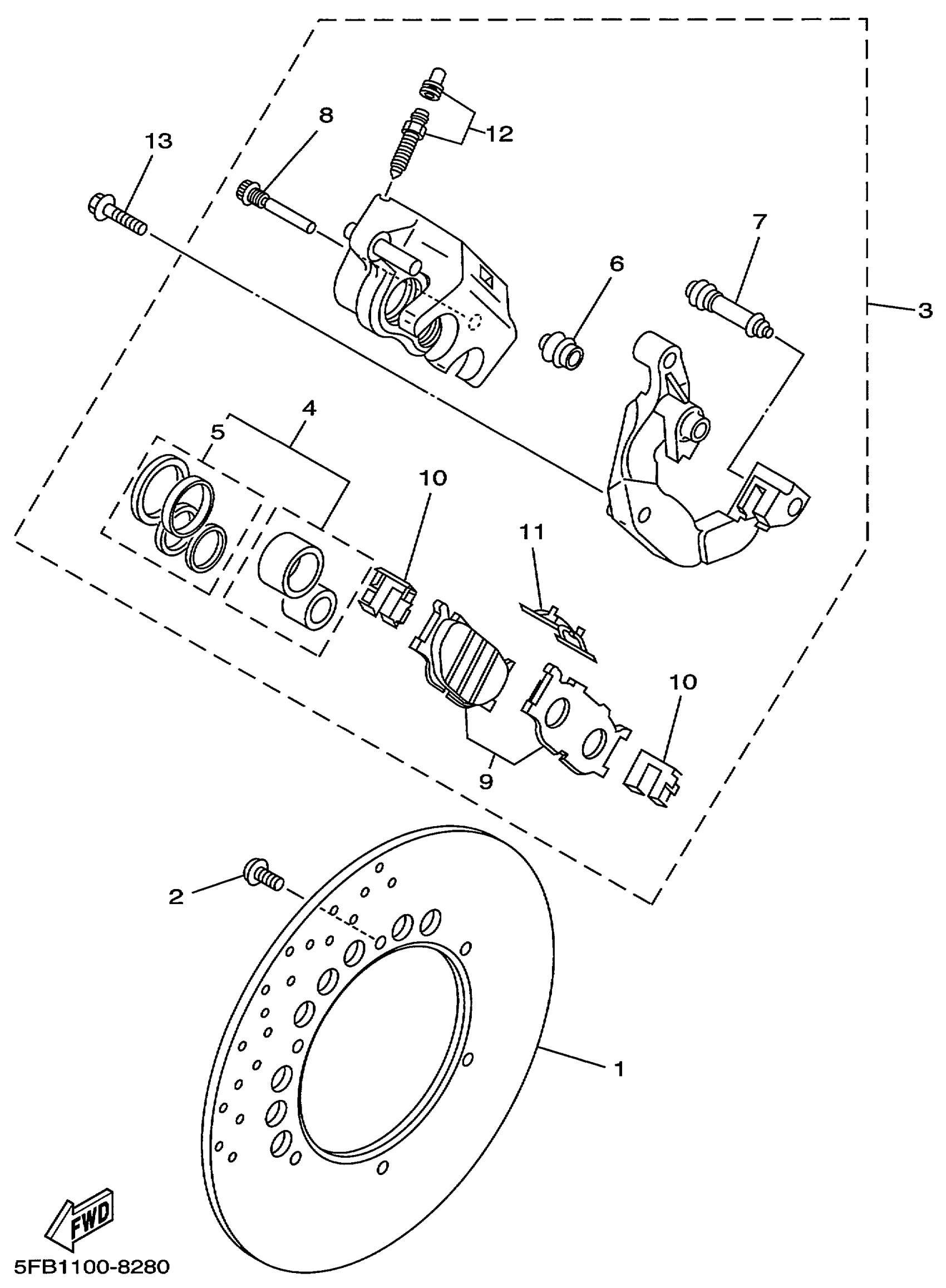

Yamaha XVS650LC (V-STAR CUSTOM CA) 5FB8 1999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

3JB-2582U-01-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.91

3

CALIPER ASSY (RIGHT)

3HT-2580U-00-00

Unavailable

4

PISTON ASSY, CALIPER

3JB-25802-00-00

$130.33

5

CALIPER SEAL KIT

3JB-25803-00-00

$36.93

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

3YX-25937-00-00

Unavailable

8

PIN, LOCK

3YX-25926-00-00

Unavailable

9

BRAKE PAD KIT

3LP-25805-00-00

$38.64

10

SUPPORT, PAD

3YX-25919-00-00

Unavailable

11

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

12

BLEED SCREW KIT

15B-W0048-00-00

$16.89

13

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80
