- XVS650ATTC (V-STAR SILVERADO TWO-TONE CA) 5SCU 2005
SIDE COVER

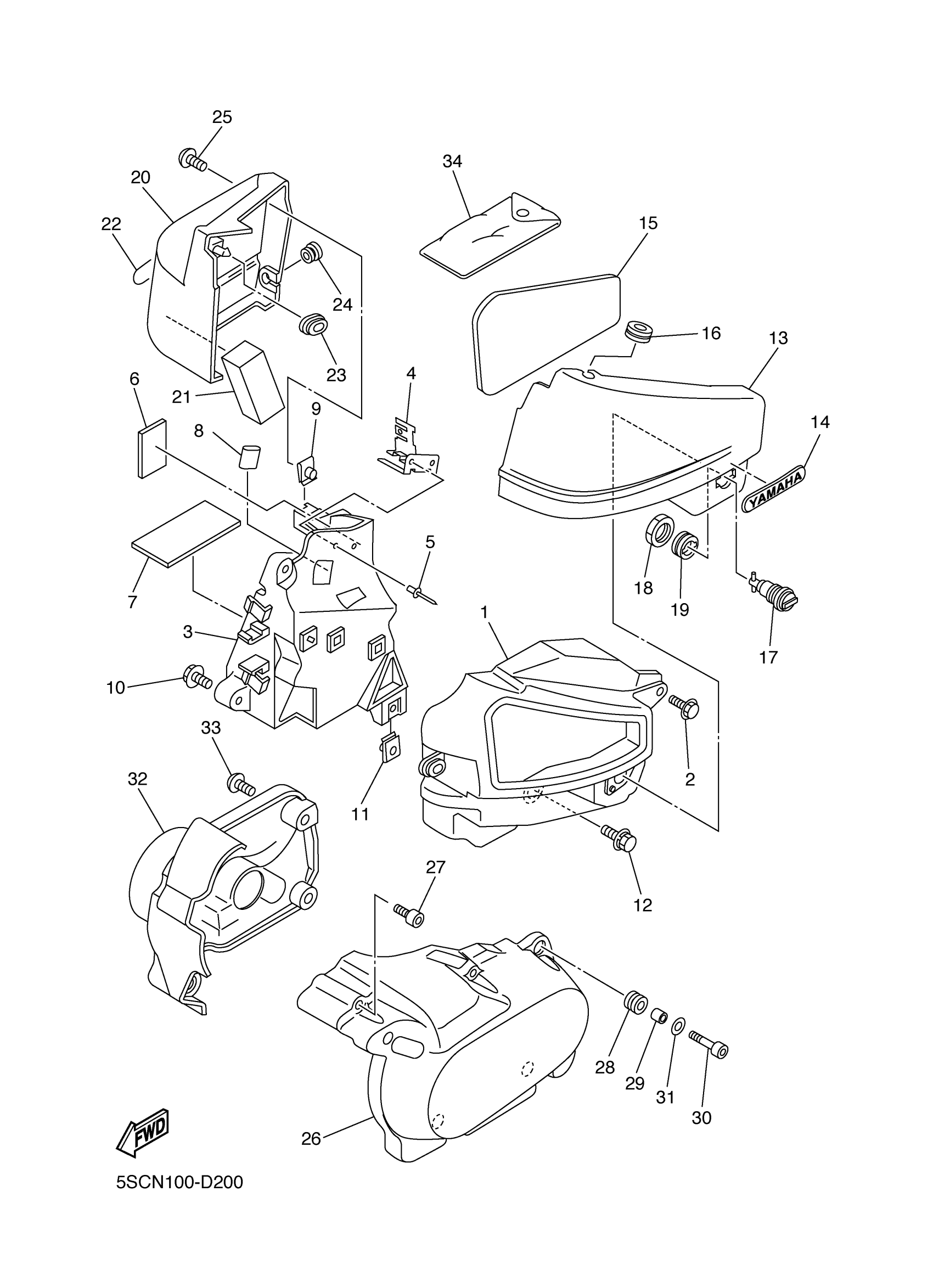

Yamaha XVS650ATTC (V-STAR SILVERADO TWO-TONE CA) 5SCU 2005 SIDE COVER Diagram
#
1
BOX COMP.
4TR-2160A-00-00
Unavailable
3
BOX, BATTERY
4TR-2177G-02-00
Unavailable
3
BOX, BATTERY
4TR-2177G-10-00
Unavailable
4
BRACKET 1
5SC-2172K-00-00
Unavailable
8
HOSE(4BH)
90446-14359-00
Unavailable
9
NUT, SPRING(4ES)
90183-06069-00
Unavailable
13
COVER, SIDE 1
5BN-21711-11-PG
Unavailable
13
COVER, SIDE 1 (BLACK METALLIC X) (BLUISH SILVER 4)
5BN-21711-10-PH
Unavailable
14
EMBLEM 1
3LS-21781-10-00
Unavailable
15
DAMPER
4TR-21717-00-00
Unavailable
16
GROMMET
90480-12320-00
Unavailable
17
SIDE COVER LOCK ASSY
55K-21708-00-00
Unavailable
18
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
19
GROMMET (1E6)
90480-24186-00
Unavailable
20
COVER, SIDE 2
5BN-21721-01-PG
Unavailable
20
COVER, SIDE 2
5BN-21721-00-PH
Unavailable
21
PROTECTOR 5
84M-77555-00-00
Unavailable
22
EMBLEM 1
3LS-21781-10-00
Unavailable
23
GROMMET(4BH)
90480-01559-00
Unavailable
24
GROMMET
90480-12320-00
Unavailable
25
SCREW(4DN)
90149-06302-00
Unavailable
26
COVER, SIDE 3
5BN-21731-00-00
Unavailable
27
BOLT,SOCKET HEAD
91314-06012-00
Unavailable
28
GROMMET (4N0)
90480-10289-00
Unavailable
29
COLLAR(4DN)
90387-0600V-00
Unavailable
30
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
31
WASHER PLATE 256216150000
90201-06062-00
Unavailable
32
COVER, SIDE 4
4VR-21741-00-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
34
IGNITION COIL ASSY
4TR-28100-01-00
Unavailable
