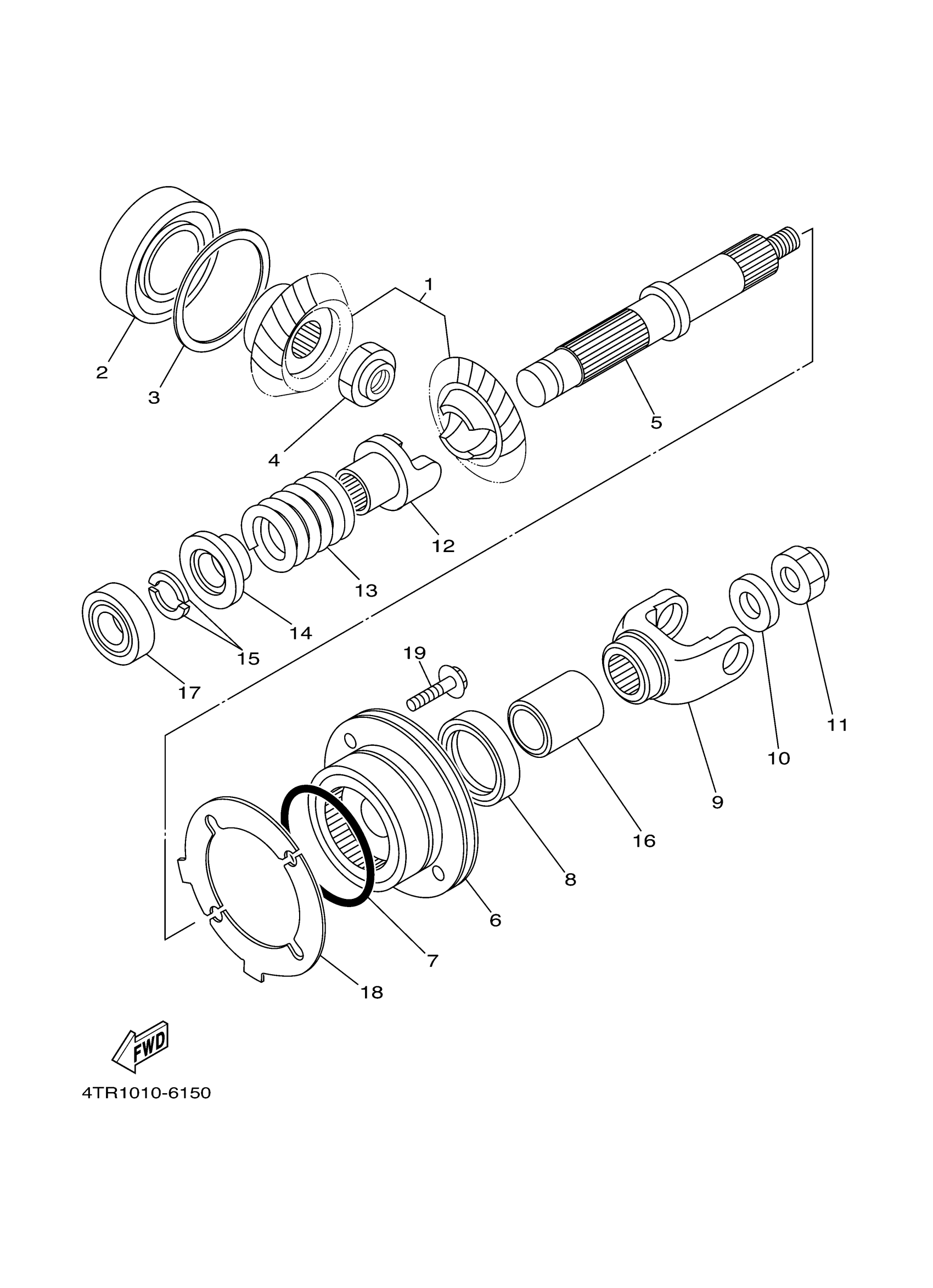

Yamaha XVS650ATTC (V-STAR SILVERADO TWO-TONE CA) 5SCU 2005 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

PINION SET

4VR-Y1754-00-00

Unavailable

2

BEARING (22U)

93306-20711-00

Unavailable

3

SHIM, THRUST

4H7-17537-00-20

$5.49

3

SHIM, THRUST (0.30T)

4H7-17537-00-30

Unavailable

3

SHIM, THRUST (0.40T)

4H7-17537-00-40

Unavailable

4

NUT (22U)

90179-18396-00

$16.99

5

SHAFT, MIDDLE DRIVEN

4VR-17553-00-00

Unavailable

6

HOUSHING COMP.

4VR-W1752-00-00

Unavailable

7

O-RING (2H7)

93210-71360-00

$13.49

8

OIL SEAL (4H7)

93101-35097-00

$22.99

9

YOKE, JOINT

22U-17556-00-00

Unavailable

10

WASHER, PLATE (1J7)

90201-14633-00

$7.49

11

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

12

CAM, DRIVEN

4VR-17527-00-00

Unavailable

13

SPRING, COMPRESSION (22U)

90501-60716-00

Unavailable

14

HOLDER

22U-17524-00-00

Unavailable

15

WASHER, THRUST

3H5-17529-00-00

Unavailable

16

COLLAR

90387-2511R-00

Unavailable

17

BEARING (5Y1)

93306-00426-00

Unavailable

18

SHIM, PINION

3JB-17531-00-00

Unavailable

18

SHIM, PINION

3JB-17531-10-00

Unavailable

18

SHIM, PINION

3JB-17531-20-00

Unavailable

18

SHIM, PINION

3JB-17531-30-00

Unavailable

18

SHIM, PINION

3JB-17531-40-00

Unavailable

18

SHIM, PINION

3JB-17531-50-00

Unavailable

19

BOLT, FLANGE

95817-08035-00

Unavailable
