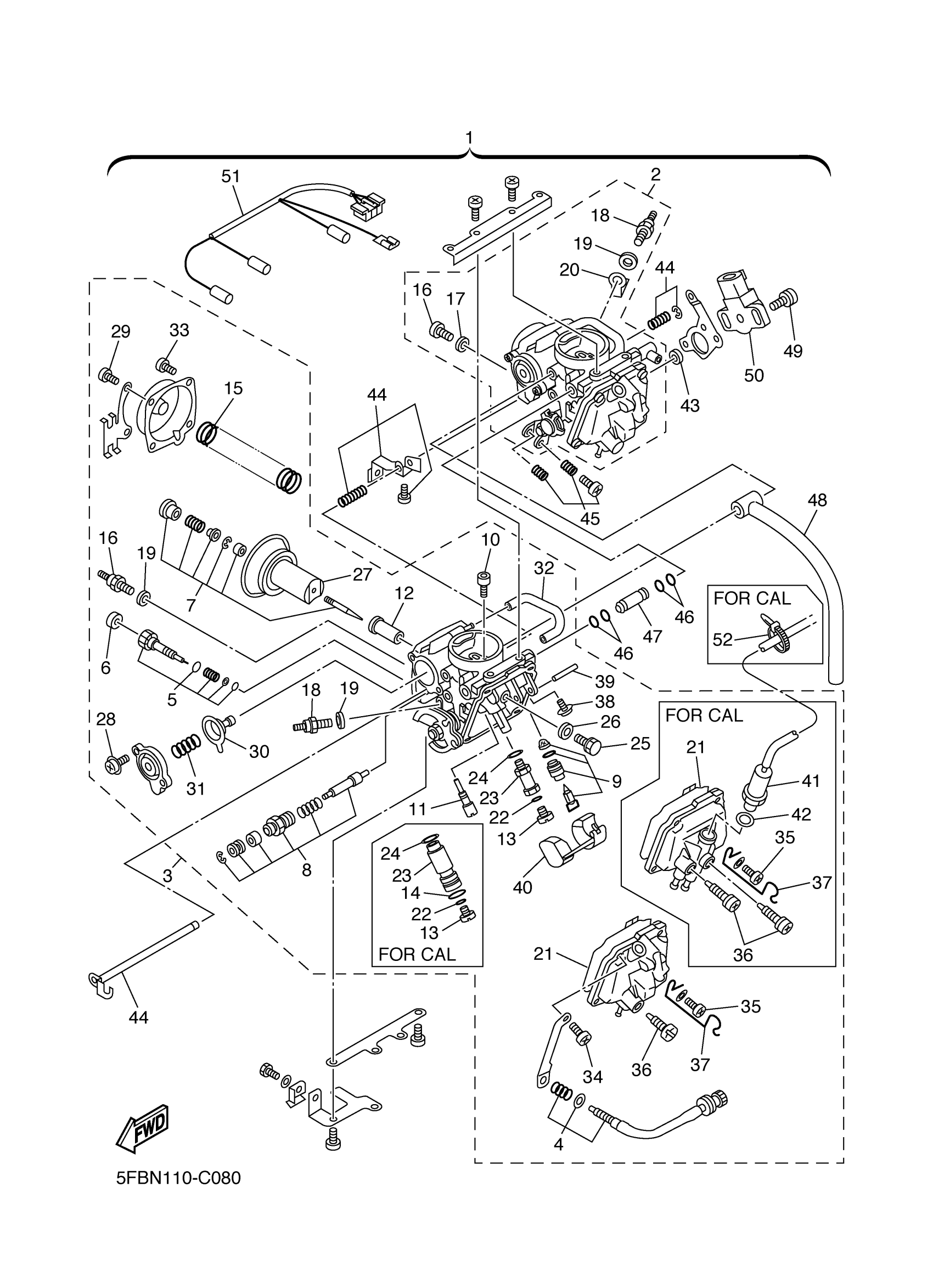

Yamaha XVS650ATTC (V-STAR SILVERADO TWO-TONE CA) 5SCU 2005 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

5BN-14900-40-00

Unavailable

1

CARBURETOR ASSY

5SC-14900-21-00

Unavailable

2

.. CARBURETOR ASSY 1

5BN-14901-40-00

Unavailable

2

CARBURETOR ASSY 1

5SC-14901-20-00

Unavailable

3

.. CARBURETOR ASSY 2

5BN-14902-40-00

Unavailable

3

CARBURETOR ASSY 2

5SC-14902-20-00

Unavailable

4

THROTTLE SCREW SET

4TR-14103-00-00

Unavailable

5

PILOT SCREW SET

4LA-14105-00-00

$17.49

5

PILOT SCREW SET

4TR-14105-00-00

Unavailable

6

CAP

3F9-14118-00-00

Unavailable

7

NEEDLE SET

5BN-1490J-00-00

Unavailable

8

STARTER SET

4DN-1410A-01-00

$72.99

9

NEEDLE VALVE SET

3CF-14107-10-00

$36.99

10

JET, MAIN (#100)

1HX-14231-20-00

$13.49

11

JET, PILOT (# 20)

4KM-14142-20-00

$9.99

12

NOZZLE, MAIN

3DM-1414M-34-00

Unavailable

13

JET, MAIN #91.3

3G2-1414E-36-00

Unavailable

13

JET, MAIN (# 90)

620-14231-18-00

Unavailable

14

O-RING

8F2-14147-00-00

Unavailable

15

SPRING, DIAPHRAGM

4VR-14933-00-00

Unavailable

16

SCREW

3DM-14216-00-00

Unavailable

16

HEATER ASSY

5FU-83790-00-00

Unavailable

17

GASKET

127-14198-00-00

Unavailable

18

HEATER ASSY

5FU-83790-10-00

Unavailable

19

WASHER, PLATE

90201-08016-00

Unavailable

19

WASHER, PLATE

90201-08016-00

Unavailable

20

TERMINAL 1

4DH-82103-00-00

Unavailable

21

O-RING

1HX-14147-00-00

Unavailable

22

O-RING

1AE-14227-00-00

Unavailable

23

HOLDER

1AE-14261-00-00

Unavailable

23

HOLDER

5SC-14261-00-00

Unavailable

24

GASKET

1AE-14237-00-00

Unavailable

25

SCREW

1HX-14565-00-00

Unavailable

26

WASHER,MAIN JET

137-14153-00-00

Unavailable

27

DIAPHRAGM ASSY

4TR-14940-00-00

Unavailable

28

SCREW, PAN HEAD

98517-04012-00

Unavailable

29

SCREW, ROD

3KW-14486-00-00

Unavailable

30

DIAPHRAGM ASSY

22V-14940-00-00

Unavailable

31

SPRING

26H-14275-00-00

Unavailable

31

SPRING

5SC-14275-00-00

Unavailable

32

PIPE 1

4TR-14348-00-00

Unavailable

33

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

33

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

34

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

34

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

35

SCREW

4VR-24453-00-00

Unavailable

36

PLUG, DRAIN

12R-14191-00-00

Unavailable

36

PLUG, DRAIN

5LW-14191-00-00

Unavailable

37

CLIP

4TR-14937-00-00

Unavailable

38

SCREW

1FN-14565-00-00

Unavailable

39

PIN, FLOAT

353-14186-00-00

Unavailable

40

FLOAT

1HX-14985-00-00

Unavailable

41

FUEL CUT SOLENOID VALVE

5SC-1410H-00-00

Unavailable

41

FUEL CUT SOLENOID VALVE

5SC-1410H-10-00

Unavailable

42

WASHER

256-14956-01-00

Unavailable

43

SEAL

4HM-14239-00-00

Unavailable

44

STARTER LEVER SET, 1

4TR-1490L-00-00

Unavailable

45

STOP SCREW SET

3KW-1490K-00-00

Unavailable

46

O-RING

36Y-14147-00-00

Unavailable

47

NIPPLE

1WG-14251-00-00

Unavailable

48

HOSE

4TR-14987-00-00

Unavailable

49

SCREW

4KM-24453-00-00

Unavailable

50

THROTTLE SENSOR ASSY

4NK-85885-00-00

Unavailable

51

WIRE, SUB LEAD

5SC-81517-00-00

Unavailable

52

CLIP, PIPE

35H-14139-00-00

Unavailable
