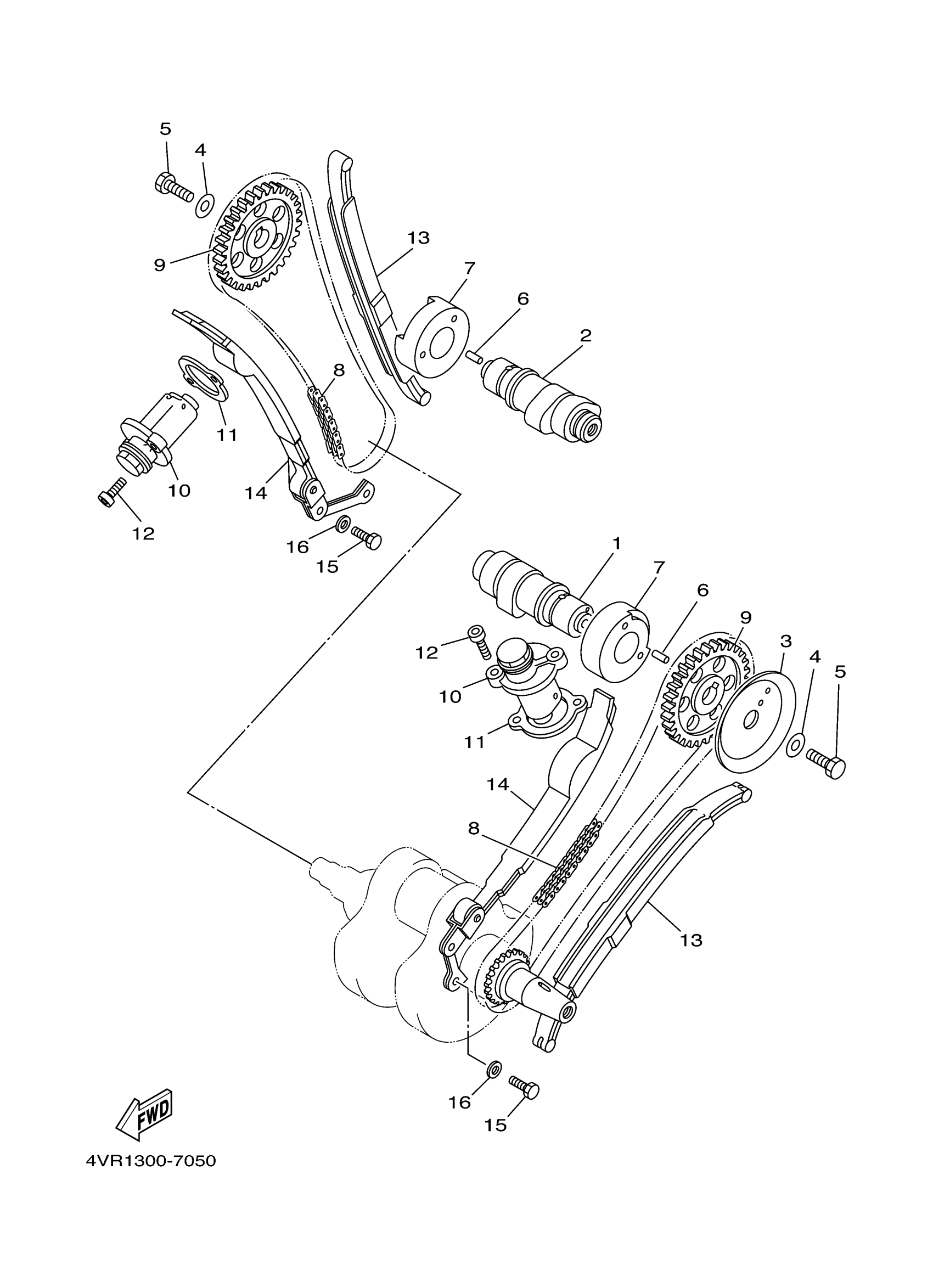

Yamaha XVS650ARC (V-STAR CLASSIC CA) 5SC8 2003 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

4VR-12171-00-00

Unavailable

CAMSHAFT 2

4VR-12181-00-00

$171.42

PLATE, BREATHER 2

22U-11145-00-00

$8.52

WASHER, PLATE (3L6)

90201-10774-00

$5.81

BOLT (583)

90101-10303-00

$5.81

PIN, DOWEL (8G8)

93605-10108-00

$5.29

BUSH, SOLID (26M)

90380-28131-00

$38.35

CHAIN(3JB)

94591-41118-00

$82.33

SPROCKET, CAM CHAIN

22U-12176-01-00

$61.26

TENSIONER ASSY, CAM CHAIN

11H-12210-02-00

Unavailable

GASKET, TENSIONER CASE

3BT-12213-00-00

$6.09

BOLT,SOCKET HEAD

91314-06025-00

$6.22

GUIDE, STOPPER 1

4VR-12231-00-00

Unavailable

GUIDE, STOPPER 2

22U-12241-01-00

Unavailable

BOLT, HEXAGON

97017-06016-00

$5.76

WASHER(6TA)

92907-06600-00

Unavailable
