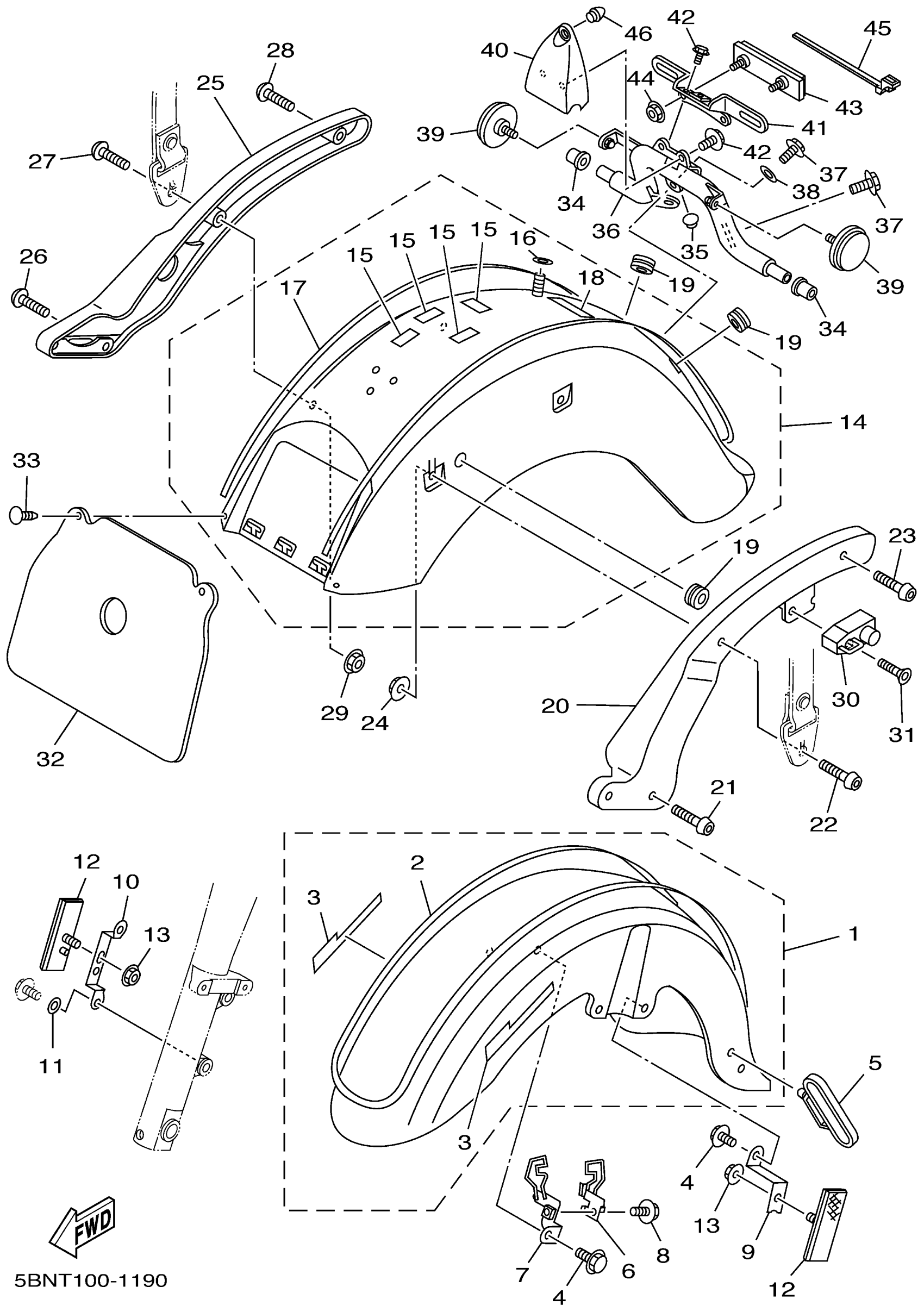

Yamaha XVS650ANC (V-STAR CLASSIC CA) 5BNU 2001 FENDER Diagram
#
1
FRONT FENDER COMP.
5BN-Y2151-91-33
Unavailable
1
FRONT FENDER COMP.
5BN-Y2151-61-P0
Unavailable
1
FRONT FENDER COMP.
5BN-Y2151-71-0Y
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
5BN-21570-C0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK GRAYISH PURPLE METALLIC 1)
5BN-21570-D0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (LIGHT GREENISH GRAY METALLIC 6)
5BN-2157A-20-00
Unavailable
3
. EMBLEM (YAMAHA BLACK)
5BN-21578-40-00
Unavailable
3
. EMBLEM (DARK GRAYISH PURPLE METALLIC 1)
5BN-21578-50-00
Unavailable
3
. EMBLEM (LIGHT GREENISH GRAY METALLIC 6)
5BN-21578-60-00
Unavailable
6
HOLDER, WIRE 2
5BN-21598-00-00
Unavailable
7
STAY 1
99999-03486-00
Unavailable
9
BRACKET, REFLECTOR 1
5BN-85112-00-00
Unavailable
10
BRACKET, REFLECTOR 2
5BN-85122-00-00
Unavailable
11
WASHER PLATE (3L6)
90201-08759-00
Unavailable
12
FRONT REFLECTOR ASSY
11H-85110-01-00
Unavailable
13
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
14
REAR FENDER COMP.
5BN-W216R-2L-P0
Unavailable
14
REAR FENDER COMP.
5BN-W216R-2E-33
Unavailable
14
REAR FENDER COMP. (LIGHT GREENISH GRAY METALLIC 6) (DARK GRAYISH LEAF GREEN ME 1)
5BN-W216R-U2-0Y
Unavailable
15
SEAL 1
3SP-21732-00-00
Unavailable
16
SEAL 2
4NK-21735-00-00
Unavailable
17
. GRAPHIC SET, REAR FENDER (YAMAHA BLACK)
5BN-2165A-C0-00
Unavailable
17
. GRAPHIC SET, REAR FENDER (DARK GRAYISH PURPLE METALLIC 1)
5BN-2165A-D0-00
Unavailable
17
. GRAPHIC SET, REAR FENDER (LIGHT GREENISH GRAY METALLIC 6)
5BN-2165B-20-00
Unavailable
18
EMBLEM, YAMAHA
99247-00080-00
Unavailable
19
GROMMET (438)
90480-15061-00
Unavailable
20
STAY, FENDER 1
5BN-21613-10-00
Unavailable
21
BOLT, BUTTON HEAD(4TR)
92014-10025-00
Unavailable
22
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
23
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
24
NUT(55X)
90179-08491-00
Unavailable
25
STAY, FENDER 2
5BN-21614-10-00
Unavailable
26
BOLT, BUTTON HEAD(4TR)
92014-10025-00
Unavailable
27
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
28
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
29
NUT(55X)
90179-08491-00
Unavailable
30
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
31
SCREW (4G1)
90149-06154-00
Unavailable
32
GUARD, MUD
4TR-21629-00-00
Unavailable
33
RIVET(81E)
90269-05055-00
Unavailable
34
DAMPER, FLASHER 1
4NK-83321-00-00
Unavailable
35
PLUG, BLIND
4NK-83345-00-00
Unavailable
36
STAY, 9
5BN-2317W-40-00
Unavailable
37
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
38
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
39
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
40
BRACKET
5BN-84703-00-00
Unavailable
41
BRACKET, LICENSE
5BN-84751-00-00
Unavailable
42
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
43
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
44
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
45
CLAMP
90464-25002-00
Unavailable
46
DAMPER 2
42U-21639-00-00
Unavailable
