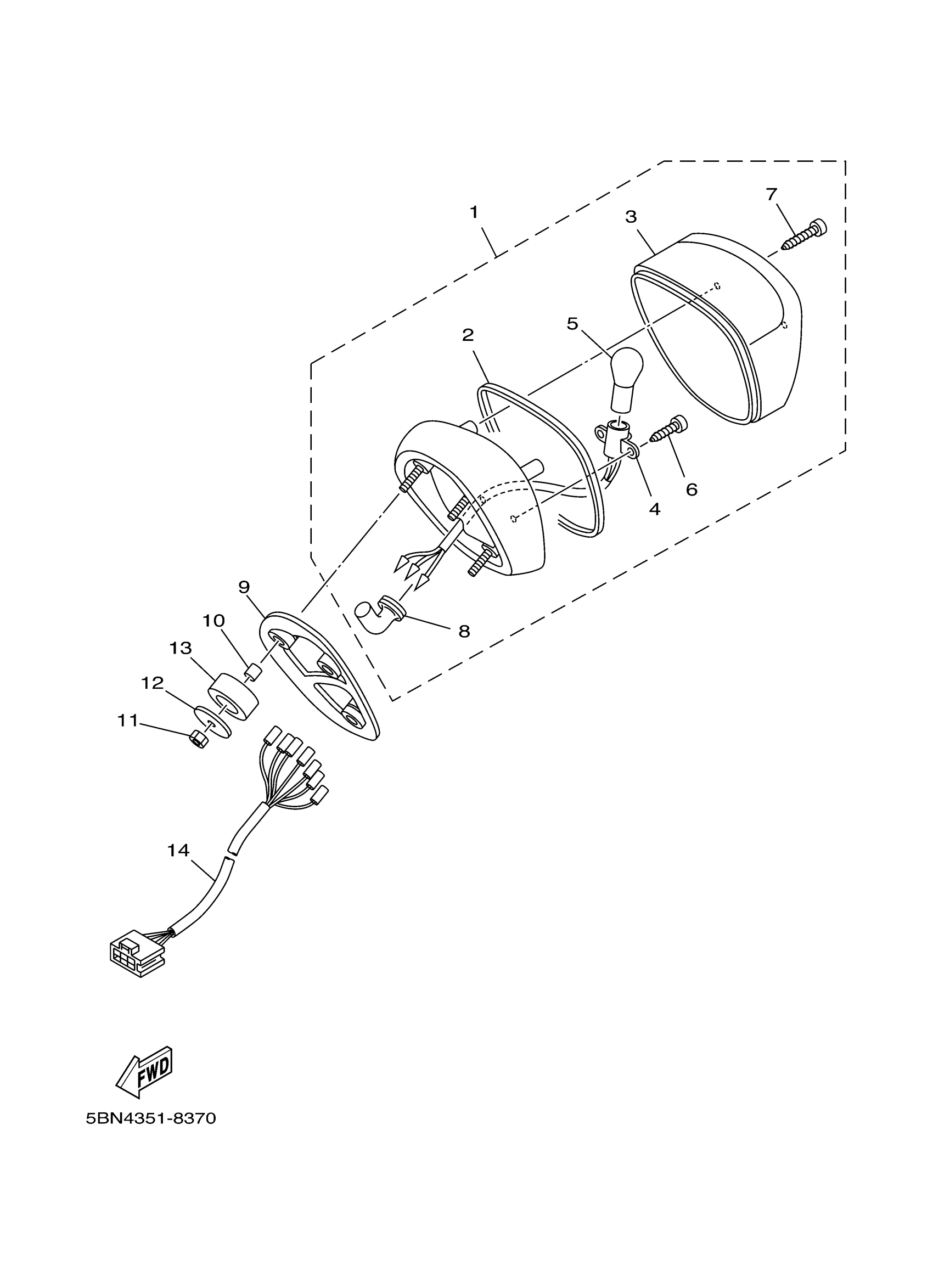

Yamaha XVS650AMC (V-STAR CLASSIC CA) 5BNK 2000 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

5BN-84700-01-00

Unavailable

2

SEAL

1VJ-14462-00-00

$18.49

3

LENS, TAILLIGHT

4NK-84721-00-00

$33.99

4

CORD ASSY

5BN-84735-00-00

$27.99

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

6

SCREW, TAPPING(4HP)

97707-40616-00

$1.70

7

SCREW, TAPPING(7G6)

97780-40525-00

$9.49

8

GROMMET

5BN-84154-00-00

$15.49

9

DAMPER

4NK-84527-01-00

Unavailable

10

COLLAR (1T2)

90387-07598-00

$5.60

11

NUT(6TA)

95317-06600-00

$3.55

12

WASHER (23T)

90201-065G8-00

$8.49

13

DAMPER

5BN-84553-00-00

$7.99

14

CORD, TAILLIGHT

5BN-84717-00-00

Unavailable
