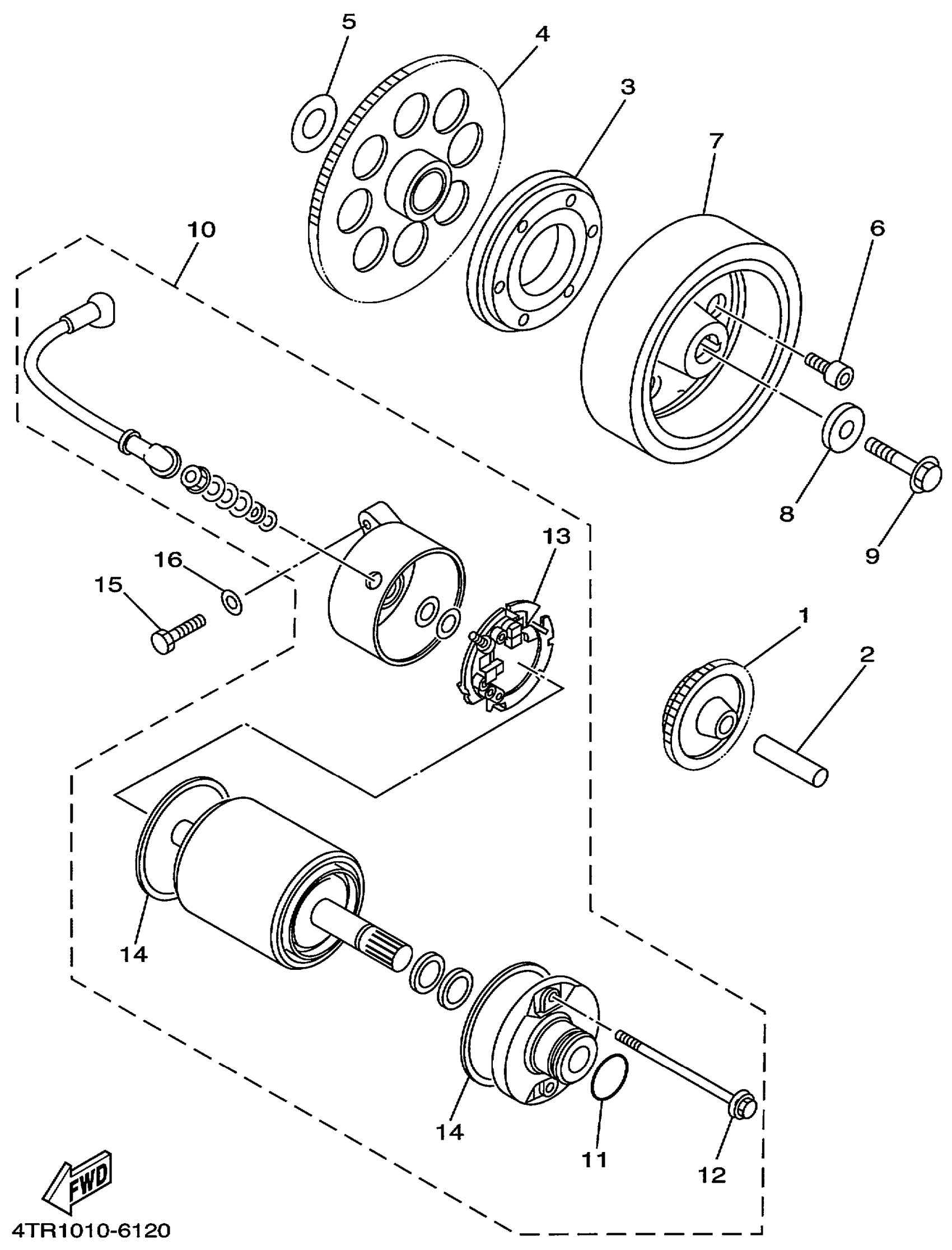

Yamaha XVS650ALC (V-STAR CLASSIC CA) 5BNF 1999 STARTER CLUTCH Diagram

GEAR, IDLER 1

22U-15512-00-00

Unavailable

SHAFT 1

5H0-15521-00-00

Unavailable

STARTER ONE-WAY ASSY

4TR-15590-00-00

$294.99

GEAR, IDLER 2

4VR-15517-01-00

Unavailable

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

BOLT, SOCKET

91317-08020-00

$8.49

ROTOR ASSY

4VR-81450-02-00

$324.99

WASHER, PLATE(1WG)

90201-107K6-00

Unavailable

BOLT, WASHER BASED (4H7)

90105-10152-00

$11.49

STARTING MOTOR UNIT

3JB-81890-00-00

Unavailable

O-RING (437)

93210-24235-00

$7.49

BOLT

3HE-81826-00-00

Unavailable

BRUSH HOLDER ASSY

3KS-81840-00-00

Unavailable

GASKET

35C-81844-00-00

Unavailable

BOLT

97070-06025-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable
