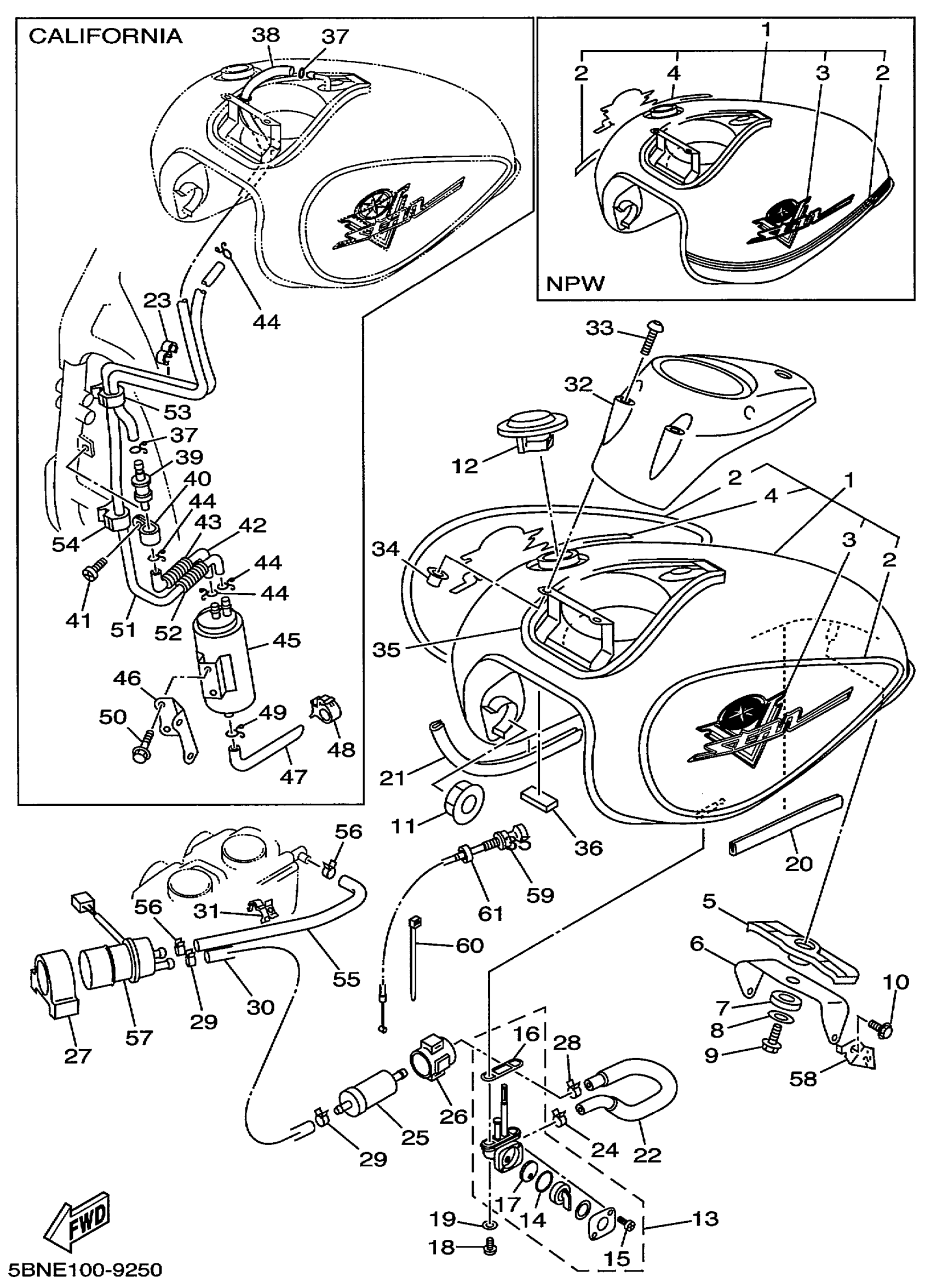

Yamaha XVS650ALC (V-STAR CLASSIC CA) 5BNF 1999 FUEL TANK Diagram
#
1
FUEL TANK COMP. (NEW PEARL WHITE) (DARK CYAN METALLIC 8)
4TR-Y2410-11-02
Unavailable
1
FUEL TANK COMP. (YAMAHA BLACK)
4TR-Y2410-11-03
Unavailable
1
FUEL TANK COMP. (YAMAHA BLACK)
4TR-Y2410-31-W5
Unavailable
1
FUEL TANK COMP. (NEW PEARL WHITE) (DARK CYAN METALLIC 8)
4TR-Y2410-T1-01
Unavailable
2
. GRAPHIC SET (YAMAHA BLACK)
5BN-24240-60-00
Unavailable
2
. GRAPHIC SET (NEW PEARL WHITE)
5BN-24240-70-00
Unavailable
3
. EMBLEM (YAMAHA BLACK)
5BN-24161-00-00
Unavailable
3
. EMBLEM 1 (NEW PEARL WHITE)
5BN-24161-60-00
Unavailable
4
. EMBLEM 2 (YAMAHA BLACK)
5BN-24162-00-00
Unavailable
4
. EMBLEM 2 (NEW PEARL WHITE)
5BN-24162-60-00
Unavailable
5
DAMPER, LOCATING 2
4TR-24182-00-00
Unavailable
6
BRACKET, TANK FITTING
4TR-2413Y-00-00
Unavailable
10
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
11
DAMPER, LOCATING
4H7-24181-00-00
Unavailable
12
CAP ASSY
4NK-24602-20-00
Unavailable
12
CAP ASSY
5BN-24602-10-00
Unavailable
13
FUEL COCK ASSY 1
21V-24500-20-00
Unavailable
14
SEAL, COCK
3AJ-24534-01-00
Unavailable
15
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
16
O-RING
4X8-24512-00-00
Unavailable
17
VALVE PACKING
3AC-24523-00-00
Unavailable
18
SCREW 256241430000
90149-06011-00
Unavailable
19
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
20
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
21
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
22
PIPE 3
4TR-24313-00-00
Unavailable
23
CLAMP(6M7)
90464-09M31-00
Unavailable
24
CLIP
90467-10038-00
Unavailable
25
FILTER ASSY
1FK-24560-10-00
Unavailable
26
BRACKET, FILTER
1FK-24566-00-00
Unavailable
27
BAND 1
4EB-24398-00-00
Unavailable
28
CLIP (7K7)
90467-11044-00
Unavailable
29
CLIP (7K7)
90467-11044-00
Unavailable
30
PIPE, FUEL
4TR-24311-00-00
Unavailable
31
CLAMP(4HM)
90464-15192-00
Unavailable
32
COVER, TOP
4TR-2171A-00-00
Unavailable
33
SCREW(3YF)
90149-05299-00
Unavailable
34
NUT(1KT)
90179-05523-00
Unavailable
35
SEAL
4TR-2414G-00-00
Unavailable
36
DAMPER, SIDE COVER
3XV-21717-00-00
Unavailable
37
CLIP
90467-100A1-00
Unavailable
38
PIPE 2
5BN-24312-10-00
Unavailable
39
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
40
CLAMP
90464-15014-00
Unavailable
41
SCREW, BINDING
98907-05010-00
Unavailable
42
PIPE 4
5BN-24314-10-00
Unavailable
43
PROTECTOR, PIPE
5BN-24327-00-00
Unavailable
44
CLIP
90467-100A1-00
Unavailable
45
CANISTER ASSY
2JU-24170-00-00
Unavailable
46
BRACKET, CANISTOR
5BN-2419F-00-00
Unavailable
47
PIPE 5
5BN-24315-10-00
Unavailable
48
CLAMP(4HM)
90464-15192-00
Unavailable
49
CLIP
90467-100A1-00
Unavailable
50
BOLT, FLANGE
95817-06010-00
Unavailable
51
PIPE 3
5BN-24313-00-00
Unavailable
52
PROTECTOR, PIPE
5BN-24327-00-00
Unavailable
53
CLAMP(4GY)
90464-20191-00
Unavailable
54
CLAMP(4HM)
90464-15192-00
Unavailable
55
HOSE
4TR-14294-00-00
Unavailable
56
CLIP (7K7)
90467-11044-00
Unavailable
57
FUEL PUMP COMP.
3YX-13907-02-00
Unavailable
58
HOLDER, WIRE
4TR-2637G-00-00
Unavailable
59
CABLE, STARTER 1
4TR-26331-00-00
Unavailable
60
BAND
1UA-82591-00-00
Unavailable
61
NUT
1VJ-26333-00-00
Unavailable
