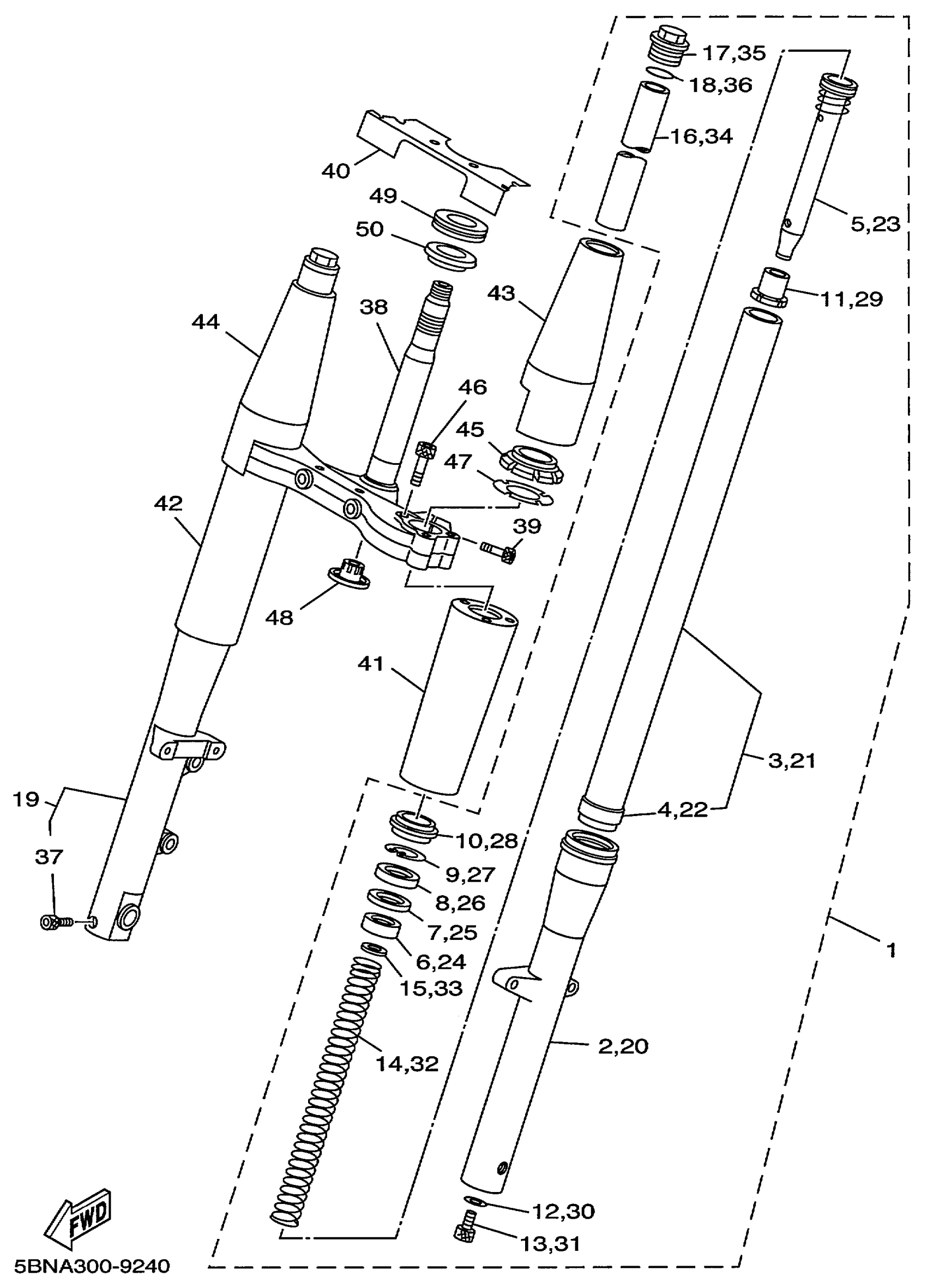

Yamaha XVS650ALC (V-STAR CLASSIC CA) 5BNF 1999 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5BN-23102-02-00
Unavailable
2
. TUBE, OUTER (LEFT)
5BN-23126-00-00
Unavailable
3
INNER TUBE COMP.1
5BN-23110-01-00
Unavailable
5
CYLINDER COMP., FRONT FORK
5BN-23170-00-00
Unavailable
11
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
14
SPRING, FRONT FORK
5BN-23141-00-00
Unavailable
16
SPACER
4TR-23118-00-00
Unavailable
17
BOLT, CAP
1D0-23111-00-00
Unavailable
18
O-RING
43F-23188-10-00
Unavailable
19
FRONT FORK ASSY (R.H)
5BN-23103-02-00
Unavailable
20
. TUBE, OUTER (RIGHT)
5BN-23136-00-00
Unavailable
21
INNER TUBE COMP.1
5BN-23110-01-00
Unavailable
23
CYLINDER COMP., FRONT FORK
5BN-23170-00-00
Unavailable
29
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
32
SPRING, FRONT FORK
5BN-23141-00-00
Unavailable
34
SPACER
4TR-23118-00-00
Unavailable
35
BOLT, CAP
1D0-23111-00-00
Unavailable
36
O-RING
43F-23188-10-00
Unavailable
37
BOLT,SOCKET
91314-08040-00
Unavailable
38
UNDER BRACKET COMP.
5KS-23340-10-00
Unavailable
39
BOLT,SOCKET
91314-08020-00
Unavailable
40
PROTECTOR
5BN-23472-00-00
Unavailable
41
COVER, LOWER 1
5BN-23123-01-00
Unavailable
42
COVER, LOWER 2
5BN-23133-01-00
Unavailable
43
COVER, UPPER 1
5KS-23121-10-00
Unavailable
44
COVER, UPPER 2
5KS-23131-10-00
Unavailable
45
GASKET
5BN-23163-00-00
Unavailable
46
BOLT,SOCKET
91317-06045-00
Unavailable
47
WASHER, FELT
5BN-23165-00-00
Unavailable
48
COVER, LOWER 1
4KM-23123-01-00
Unavailable
49
BEARING(3FV)
93399-99932-00
Unavailable
50
SEAL, STEERING
3FV-23462-00-00
Unavailable
51
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
