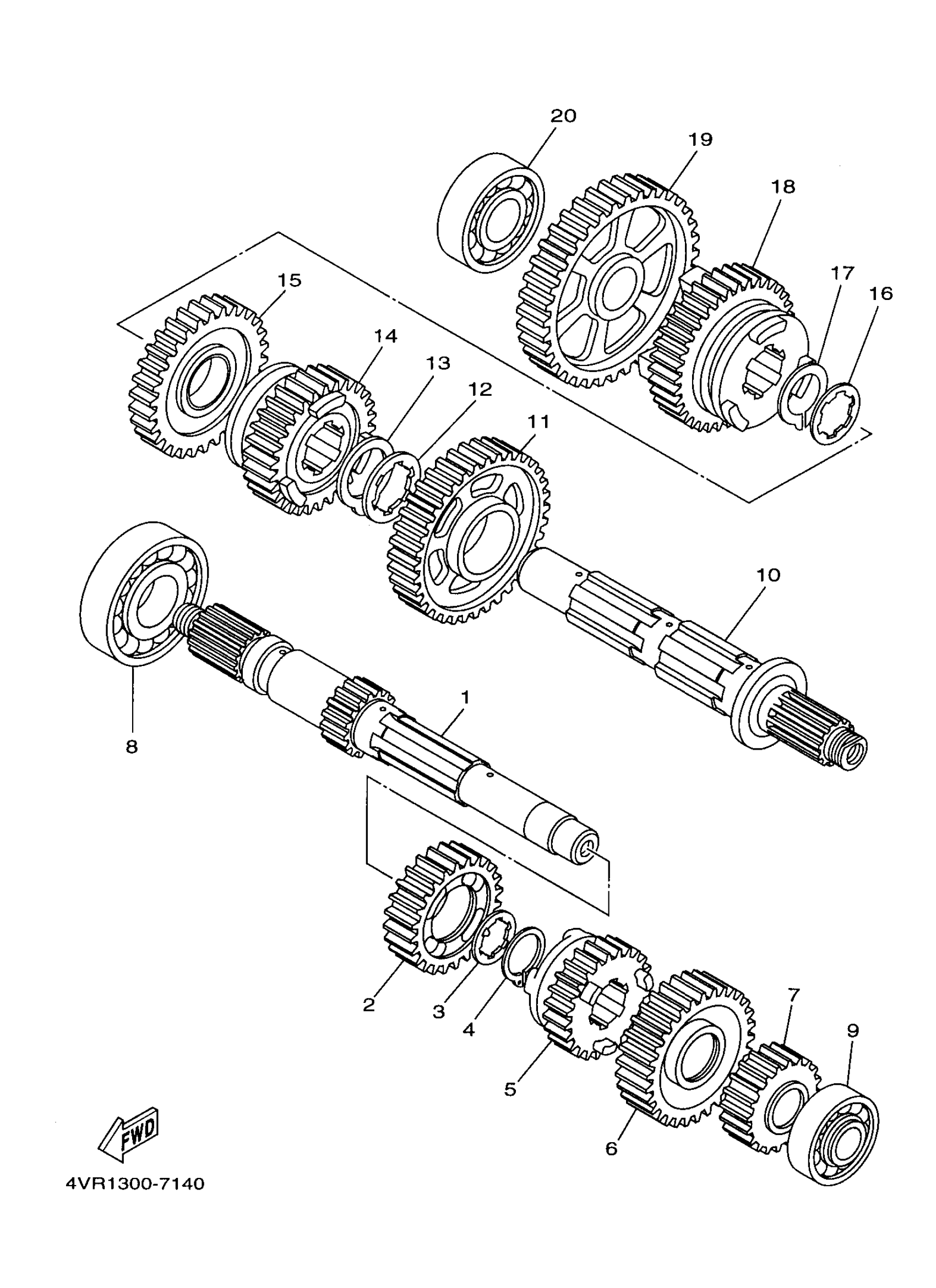

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 TRANSMISSION Diagram

AXLE, MAIN

4VR-17411-00-00

Unavailable

GEAR, 4TH PINION

22U-17141-00-00

Unavailable

WASHER (3J3)

90209-22191-00

$7.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR, 3RD PINION

4VR-17131-00-00

Unavailable

GEAR, 5TH PINION

4VR-17151-01-00

Unavailable

GEAR, 2ND PINION (20T)

4KU-17121-00-00

Unavailable

BEARING (3Y1)

93306-30525-00

$63.99

BEARING (5Y1)

93306-00426-00

$42.99

DRIVE AXLE ASSY

22U-17402-00-00

$83.99

GEAR, 2ND WHEEL (38T)

4KU-17221-00-00

$89.99

WASHER (3J3)

90209-27192-00

$8.49

CIRCLIP (3J3)

93440-30077-00

$10.49

GEAR, 5TH WHEEL

4VR-17251-01-00

Unavailable

GEAR, 3RD WHEEL

4VR-17231-00-00

$137.99

WASHER (3J3)

90209-22191-00

$7.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR, 4TH WHEEL

4TR-17241-00-00

Unavailable

GEAR, 1ST WHEEL

22U-17211-00-00

Unavailable

BEARING (17L)

93306-00427-00

Unavailable
