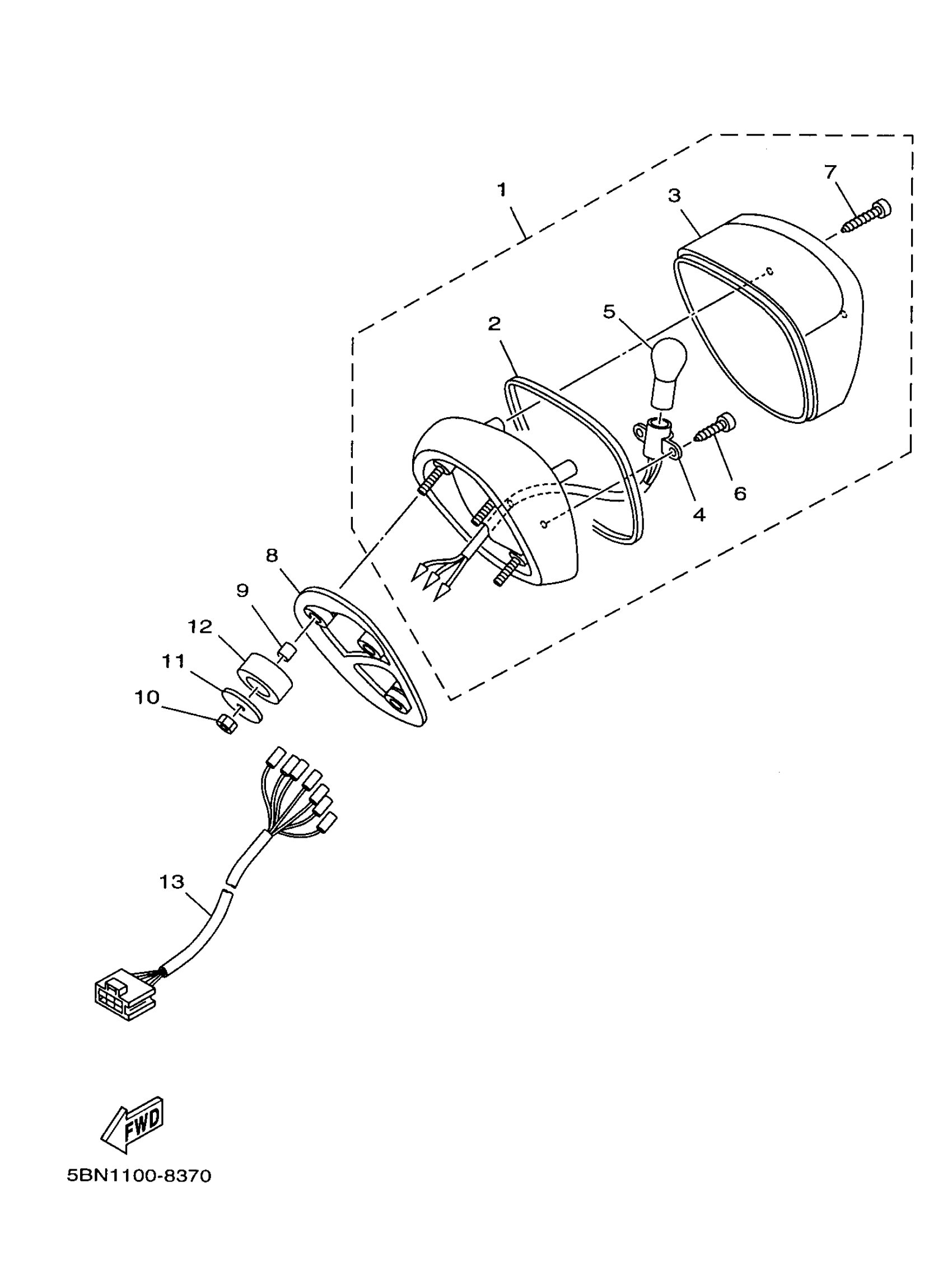

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

5BN-84700-01-00

Unavailable

2

SEAL

1VJ-14462-00-00

$15.00

3

LENS, TAILLIGHT

4NK-84721-00-00

$26.57

4

CORD ASSY

5BN-84735-00-00

$23.36

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

6

SCREW, TAPPING(4HP)

97707-40616-00

$1.15

7

SCREW, TAPPING(7G6)

97780-40525-00

$5.61

8

DAMPER

4NK-84527-01-00

Unavailable

9

COLLAR (1T2)

90387-07598-00

$4.51

10

NUT(6TA)

95317-06600-00

$2.52

11

WASHER (23T)

90201-065G8-00

$5.75

12

DAMPER

5BN-84553-00-00

$6.42

13

CORD, TAILLIGHT

5BN-84717-00-00

Unavailable
