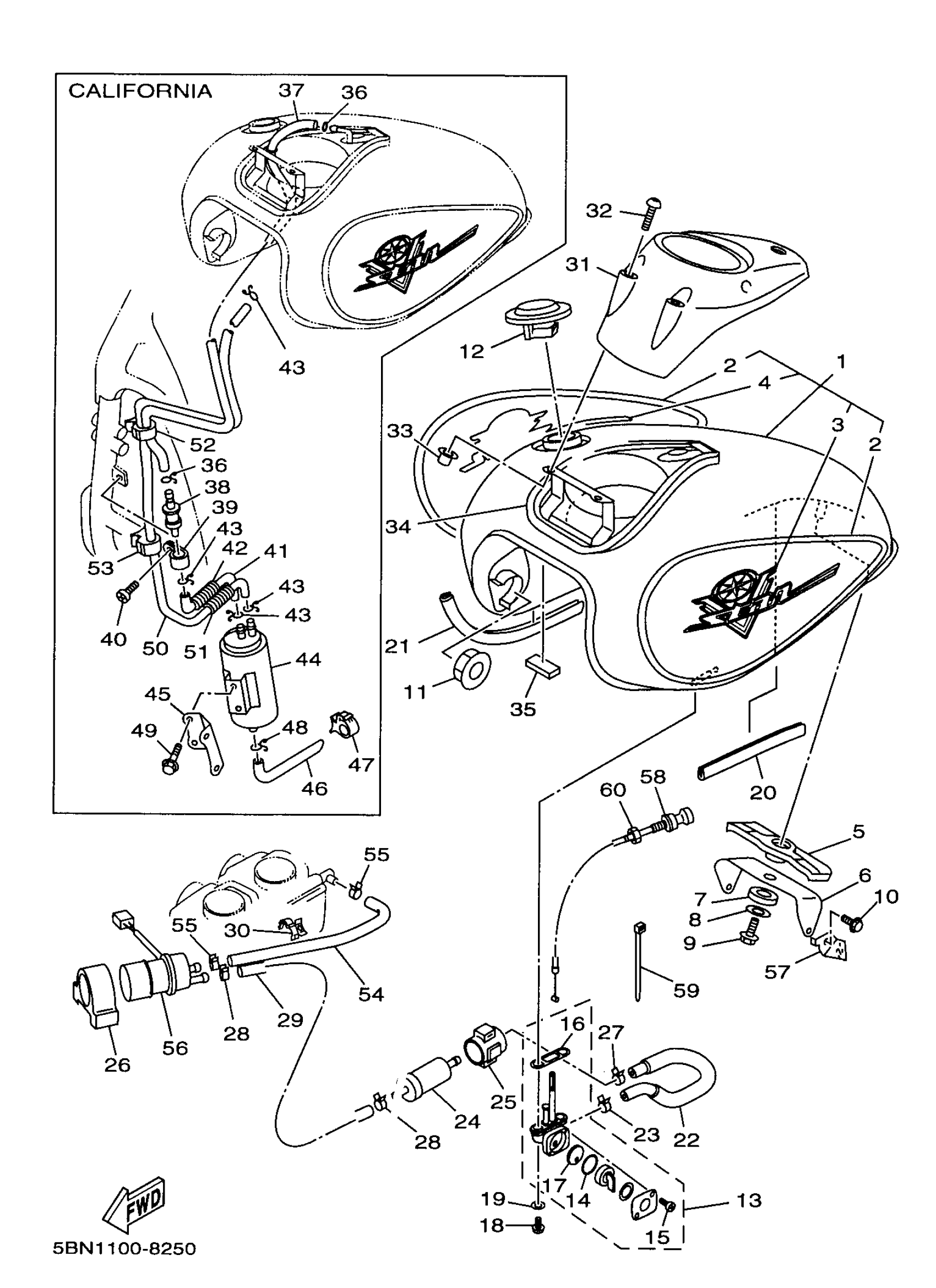

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 FUEL TANK Diagram
#
1
FUEL TANK COMP. (YAMAHA BLACK)
4TR-24110-11-06
Unavailable
1
FUEL TANK COMP. (MIYABI MAROON) (BRIGHT CHERRY RED)
4TR-24110-11-07
Unavailable
1
FUEL TANK
4TR-Y2410-31-04
Unavailable
1
FUEL TANK
4TR-Y2410-31-05
Unavailable
2
. GRAPHIC SET (YAMAHA BLACK)
5BN-24240-00-00
Unavailable
2
. GRAPHIC SET (MIYABI MAROON)
5BN-24240-10-00
Unavailable
3
. EMBLEM (YAMAHA BLACK)
5BN-24161-00-00
Unavailable
3
. EMBLEM 1 (MIYABI MAROON)
5BN-24161-10-00
Unavailable
4
. EMBLEM 2 (YAMAHA BLACK)
5BN-24162-00-00
Unavailable
4
. EMBLEM 2 (MIYABI MAROON)
5BN-24162-10-00
Unavailable
5
DAMPER, LOCATING 2
4TR-24182-00-00
Unavailable
6
BRACKET, TANK FITTING
4TR-2413Y-00-00
Unavailable
10
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
11
DAMPER, LOCATING
4H7-24181-00-00
Unavailable
12
CAP ASSY
4NK-24602-20-00
Unavailable
12
CAP ASSY
5BN-24602-10-00
Unavailable
13
FUEL COCK ASSY 1
21V-24500-20-00
Unavailable
14
SEAL, COCK
3AJ-24534-01-00
Unavailable
15
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
16
O-RING
4X8-24512-00-00
Unavailable
17
VALVE PACKING
3AC-24523-00-00
Unavailable
18
SCREW 256241430000
90149-06011-00
Unavailable
19
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
20
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
21
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
22
PIPE 3
4TR-24313-00-00
Unavailable
23
CLIP
90467-10038-00
Unavailable
24
FILTER ASSY
1FK-24560-10-00
Unavailable
25
BRACKET, FILTER
1FK-24566-00-00
Unavailable
26
BAND 1
4EB-24398-00-00
Unavailable
27
CLIP (7K7)
90467-11044-00
Unavailable
28
CLIP (7K7)
90467-11044-00
Unavailable
29
PIPE, FUEL
4TR-24311-00-00
Unavailable
30
CLAMP(4HM)
90464-15192-00
Unavailable
31
COVER, TOP
4TR-2171A-00-00
Unavailable
32
SCREW(3YF)
90149-05299-00
Unavailable
33
NUT(1KT)
90179-05523-00
Unavailable
34
SEAL
4TR-2414G-00-00
Unavailable
35
DAMPER, SIDE COVER
3XV-21717-00-00
Unavailable
36
CLIP
90467-100A1-00
Unavailable
37
PIPE 2
5BN-24312-10-00
Unavailable
38
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
39
CLAMP
90464-15014-00
Unavailable
40
SCREW, BINDING
98907-05010-00
Unavailable
41
PIPE 4
5BN-24314-10-00
Unavailable
42
PROTECTOR, PIPE
5BN-24327-00-00
Unavailable
43
CLIP
90467-100A1-00
Unavailable
44
CANISTER ASSY
2JU-24170-00-00
Unavailable
45
BRACKET, CANISTOR
5BN-2419F-00-00
Unavailable
46
PIPE 5
5BN-24315-10-00
Unavailable
47
CLAMP(4HM)
90464-15192-00
Unavailable
48
CLIP
90467-100A1-00
Unavailable
49
BOLT, FLANGE
95817-06010-00
Unavailable
50
PIPE 3
5BN-24313-00-00
Unavailable
51
PROTECTOR, PIPE
5BN-24327-00-00
Unavailable
52
CLAMP(4GY)
90464-20191-00
Unavailable
53
CLAMP(4HM)
90464-15192-00
Unavailable
54
HOSE
4TR-14294-00-00
Unavailable
55
CLIP (7K7)
90467-11044-00
Unavailable
56
FUEL PUMP COMP.
3YX-13907-02-00
Unavailable
57
HOLDER, WIRE
4TR-2637G-00-00
Unavailable
58
CABLE, STARTER 1
4TR-26331-00-00
Unavailable
59
BAND
1UA-82591-00-00
Unavailable
60
NUT
1VJ-26333-00-00
Unavailable
