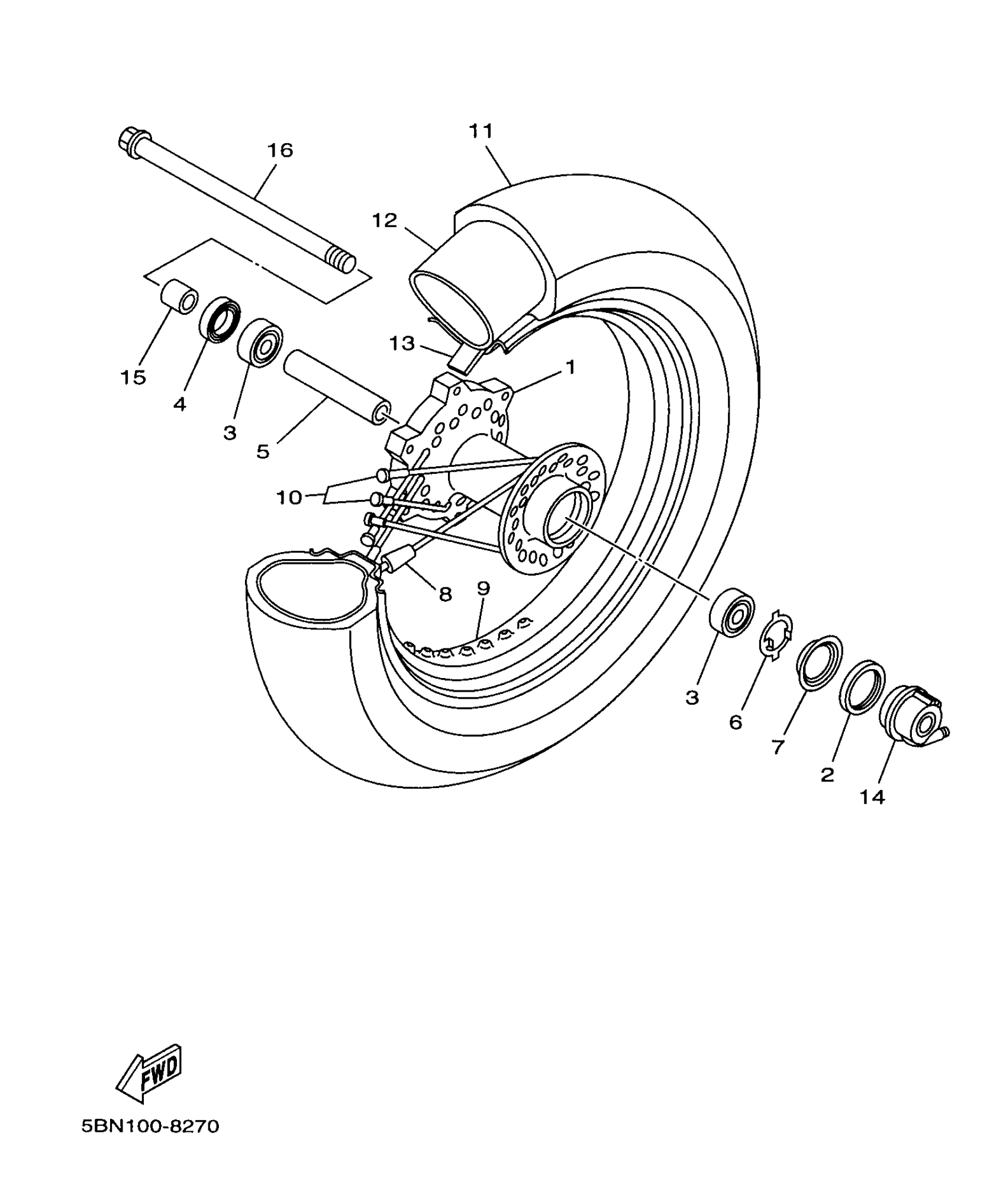

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 FRONT WHEEL Diagram

HUB, FRONT

4TR-25111-00-00

Unavailable

OIL SEAL (45X56X6)

93105-45017-00

$14.99

BEARING(4HM)

93306-30317-00

$39.99

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

COLLAR(1FN)

90387-173M5-00

Unavailable

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

BALANCER, WHEEL

3HT-25398-00-00

$7.99

RIM

94430-16565-00

Unavailable

SPOKE SET, FRONT

5BN-25104-01-00

$164.99

TIRE (130/90-16 M/C 67S D404F)

94113-1613E-00

Unavailable

TUBE

94213-16306-00

$45.99

BAND, RIM(25-16)

94313-16175-00

$7.49

GEAR UNIT ASSY

1FK-25190-02-00

$98.99

COLLAR(1UR)

90387-173R6-00

$30.99

AXLE, WHEEL

4TR-25181-00-00

Unavailable
