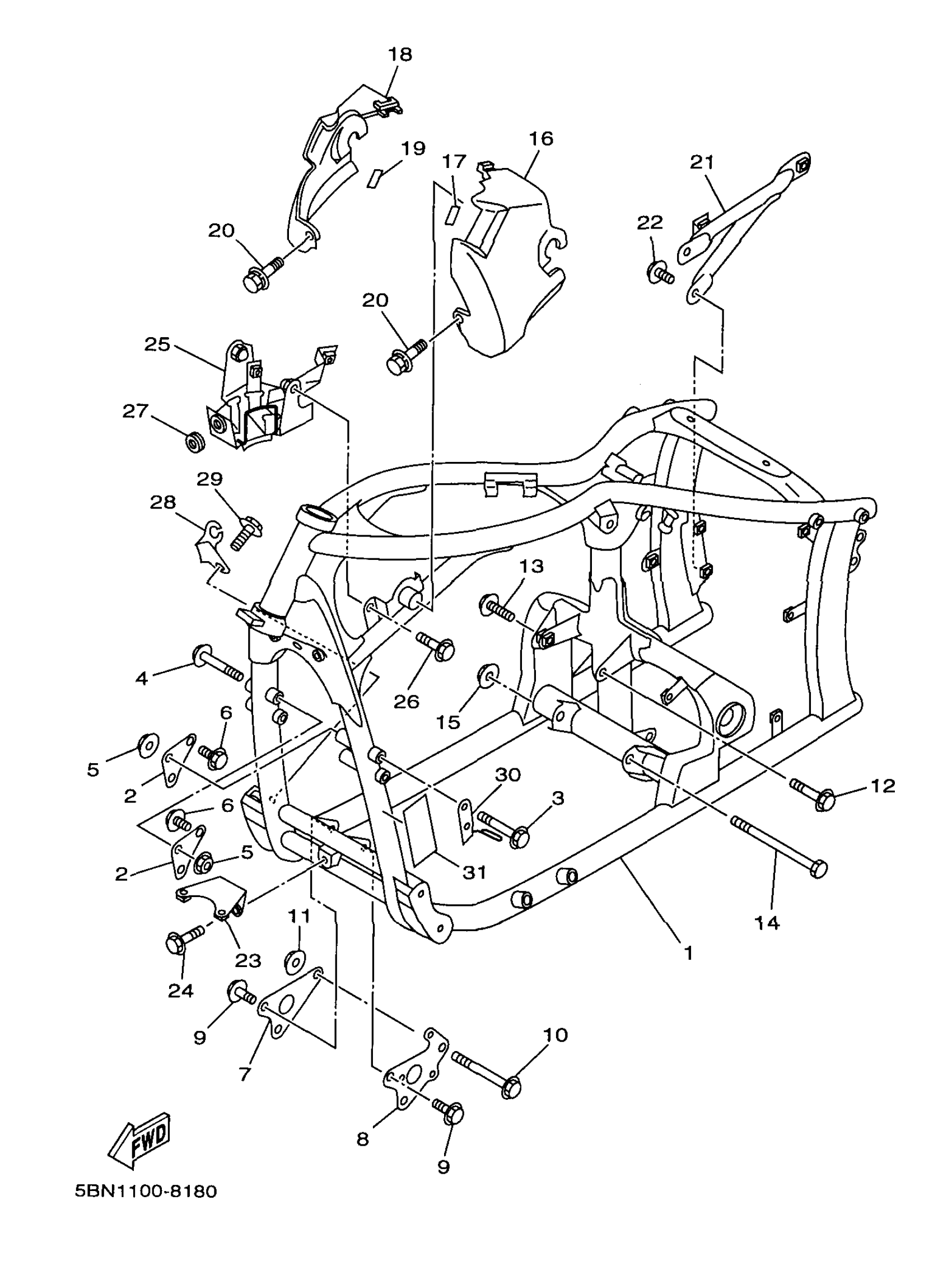

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4VR-21110-02-00

Unavailable

1

FRAME COMP.

5BN-21110-00-00

Unavailable

2

STAY, ENGINE 2

4VR-21315-00-00

Unavailable

3

BOLT, WASHER BASED

90105-082A4-00

$3.55

4

BOLT, WASHER BASED

90105-084A1-00

$10.49

5

NUT

90179-08684-00

$7.49

6

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

7

STAY, ENGINE 3

4VR-21317-00-00

Unavailable

8

STAY, ENGINE 3

5BN-21317-00-00

$70.99

9

BOLT, WASHER BASED(36Y)

90105-08307-00

$9.49

10

BOLT, FLANGE(4TR)

95814-10100-00

$7.49

11

NUT(4KG)

90179-10658-00

$9.49

12

BOLT, WASHER BASED(4EB)

90105-10788-00

$28.99

13

BOLT, WASHER BASED (4K0)

90105-10169-00

$11.49

14

BOLT(3GG)

90101-12694-00

$33.99

15

NUT(3EF)

90179-12657-00

Unavailable

16

COVER, SIDE 5

4TR-2171E-01-00

Unavailable

17

DAMPER 1

3TB-28217-00-00

Unavailable

18

COVER, SIDE 6

4TR-2171X-00-00

Unavailable

19

DAMPER 1

3TB-28217-00-00

Unavailable

20

BOLT, WITH WASHER

90119-06236-00

Unavailable

21

STAY, MUFFLER

4TR-21460-30-00

Unavailable

22

BOLT, FLANGE

95817-08014-00

Unavailable

23

STAY 1

4VR-28356-01-00

Unavailable

24

BOLT, FLANGE

95817-06012-00

Unavailable

25

BRACKET, FUEL PUMP

4TR-24491-02-00

Unavailable

26

BOLT, FLANGE

95817-06014-00

Unavailable

27

GROMMET

90480-12320-00

Unavailable

28

STAY, STOP SWITCH

4TR-2144G-01-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable

30

HOLDER, CABLE

4VR-21161-00-00

Unavailable

31

PLATE, EPA 2 (CALIFORNIA)

5BN-2179R-00-00

Unavailable

31

PLATE, EPA 1 (NON-CALIFORNIA)

5BN-2179V-00-00

Unavailable
