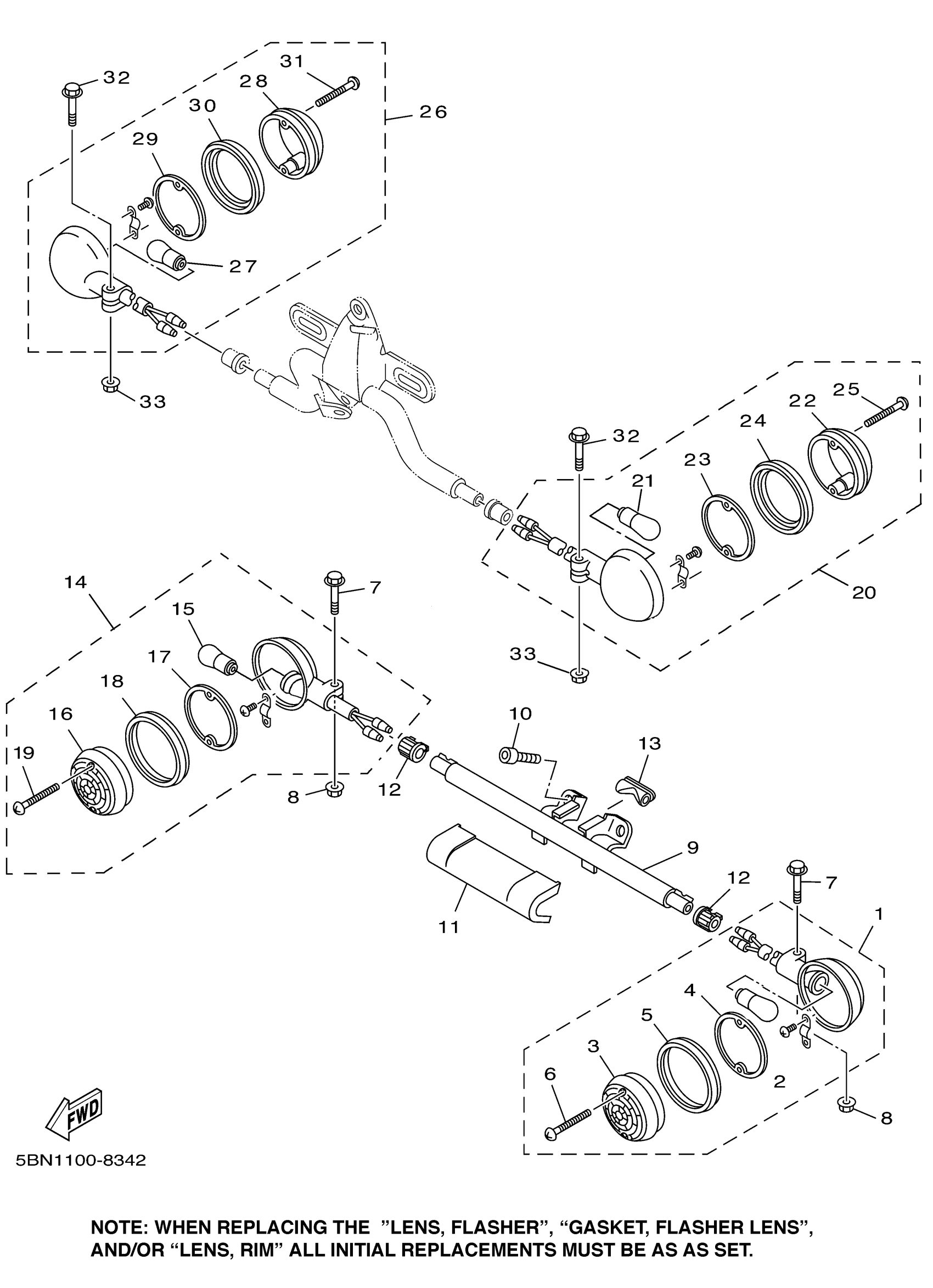

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4NK-83310-01-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-10-00

$15.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

8

NUT, FLANGE(7NB)

95780-06500-00

$2.60

9

STAY, 8

5BN-2317V-00-00

Unavailable

10

BOLT,SOCKET

91314-08016-00

$9.49

11

COVER, OUTER 1

4NK-23122-01-00

Unavailable

12

DAMPER, FLASHER 1

4NK-83321-00-00

$9.99

13

PLUG, BLIND

4NK-83345-00-00

Unavailable

14

FRONT FLASHER LIGHT ASSY 2

4NK-83320-01-00

Unavailable

15

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

16

LENS, FLASHER

42X-83312-20-00

Unavailable

17

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

18

LENS, RIM

1D6-83363-00-00

$28.99

19

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

20

REAR FLASHER LIGHT ASSY 1

42X-83330-K1-00

Unavailable

21

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

22

LENS, FLASHER

42X-83312-20-00

Unavailable

23

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

24

LENS, RIM

1D6-83363-00-00

$28.99

25

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

26

FLASHER LIGHT ASSY 2

42X-83340-K1-00

Unavailable

27

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

28

LENS, FLASHER

42X-83312-10-00

$15.49

29

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

30

LENS, RIM

1D6-83363-00-00

$28.99

31

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

32

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

33

NUT, FLANGE(7NB)

95780-06500-00

$2.60
