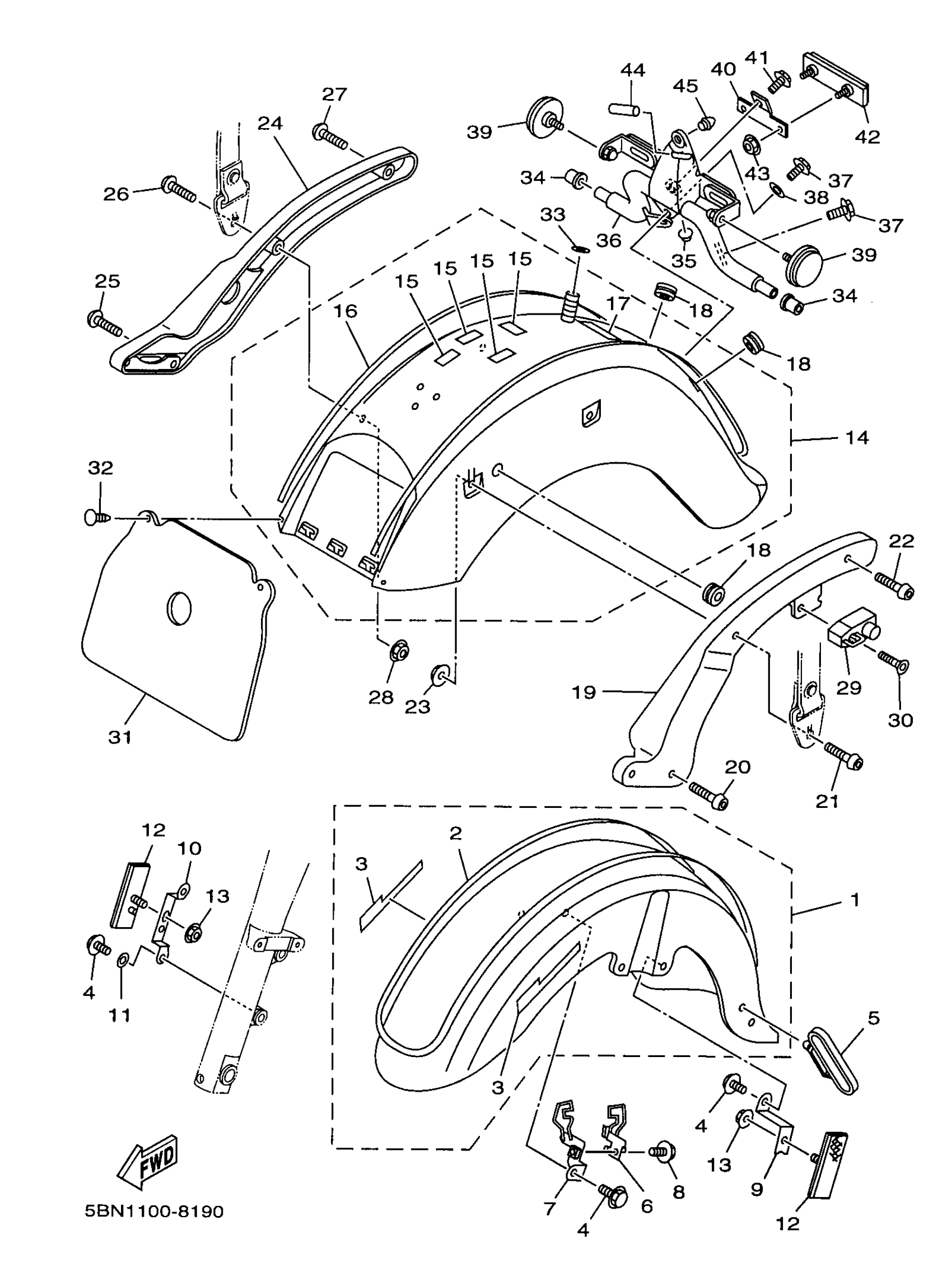

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 FENDER Diagram
#
1
FRONT FENDER COMP.
99999-03296-00
Unavailable
1
FRONT FENDER SET
99999-03300-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
5BN-21570-00-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (MIYABI MAROON)
5BN-21570-10-00
Unavailable
3
. EMBLEM (YAMAHA BLACK)
5BN-21578-00-00
Unavailable
3
. EMBLEM (MIYABI MAROON)
5BN-21578-10-00
Unavailable
6
HOLDER, WIRE 2
5BN-21598-00-00
Unavailable
7
STAY 1
99999-03486-00
Unavailable
9
BRACKET, REFLECTOR 1
5BN-85112-00-00
Unavailable
10
BRACKET, REFLECTOR 2
5BN-85122-00-00
Unavailable
13
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
14
REAR FENDER COMP.
5BN-W216R-03-0X
Unavailable
14
REAR FENDER COMP.
5BN-W216R-2G-33
Unavailable
15
SEAL 1
3SP-21732-00-00
Unavailable
16
GRAPHIC SET,REAR FENDER
5BN-2165A-00-00
Unavailable
16
GRAPHIC SET,REAR FENDER
5BN-2165A-11-00
Unavailable
17
EMBLEM, YAMAHA
99247-00080-00
Unavailable
18
GROMMET (438)
90480-15061-00
Unavailable
19
STAY 1
5BN-21613-00-33
Unavailable
20
BOLT, BUTTON HEAD(4TR)
92014-10025-00
Unavailable
21
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
22
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
23
NUT(55X)
90179-08491-00
Unavailable
24
STAY
5BN-21614-00-33
Unavailable
25
BOLT, BUTTON HEAD(4TR)
92014-10025-00
Unavailable
26
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
27
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
28
NUT(55X)
90179-08491-00
Unavailable
29
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
30
SCREW (4G1)
90149-06154-00
Unavailable
31
GUARD, MUD
4TR-21629-00-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
SEAL 2
4NK-21735-00-00
Unavailable
34
DAMPER, FLASHER 1
4NK-83321-00-00
Unavailable
35
PLUG, BLIND
4NK-83345-00-00
Unavailable
36
STAY, 9
5BN-2317W-00-00
Unavailable
37
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
38
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
39
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
40
BRACKET, REFLECTOR
4NK-21641-00-00
Unavailable
41
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
42
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
43
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
44
HOSE (583)
90446-07114-00
Unavailable
45
DAMPER 2
5A8-21639-00-00
Unavailable
