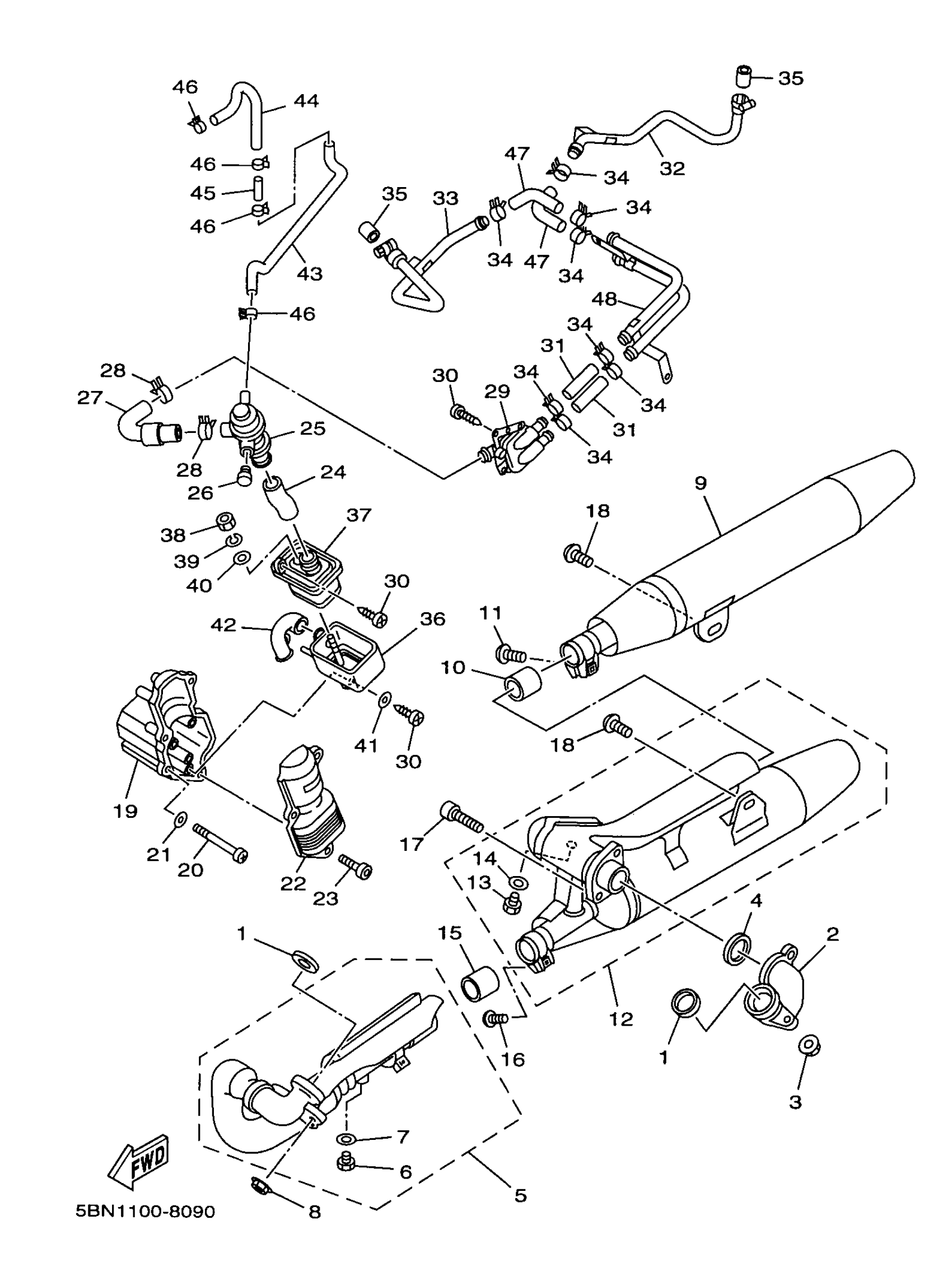

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 EXHAUST Diagram
#
2
JOINT, EXHAUST 1
4TR-14615-02-00
Unavailable
5
EXHAUST PIPE ASSY 2
4XP-14620-02-00
Unavailable
9
MUFFLER COMP. 1
5BN-14703-02-00
Unavailable
12
MUFFLER COMP. 2
5BN-14704-03-00
Unavailable
17
BOLT, SOCKET
91314-08035-00
Unavailable
18
BOLT, BUTTON HEAD
92017-10020-00
Unavailable
19
COVER, AIR 1
5BN-14604-00-00
Unavailable
20
SCREW, PAN
98507-06090-00
Unavailable
21
WASHER(6TA)
92907-06600-00
Unavailable
22
COVER 1
5BN-14603-00-00
Unavailable
23
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
24
HOSE, BEND 2
5BN-14882-00-00
Unavailable
25
AIR CUT VALVE ASS'Y
5BN-14840-00-00
Unavailable
26
PLUG (17J)
90338-10132-00
Unavailable
27
HOSE, BEND 3
5BN-14883-00-00
Unavailable
28
CLIP (4V3)
90467-19051-00
Unavailable
29
REED VALVE ASSY
5BN-14808-00-00
Unavailable
30
SCREW, PAN TAP.2
97707-60514-00
Unavailable
31
HOSE, BEND 4
42H-14884-00-00
Unavailable
32
PIPE 1
5BN-14871-00-00
Unavailable
33
PIPE 2
5BN-14872-00-00
Unavailable
34
CLIP
90468-08104-00
Unavailable
35
GASKET, MUFFLER
42H-14714-10-00
Unavailable
36
CASE, AIR CLEANER
5BN-14857-01-00
Unavailable
37
CAP, CASE
5BN-14858-00-00
Unavailable
38
NUT, U
95617-05100-00
Unavailable
39
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
40
WASHER, PLATE (463)
90202-05057-00
Unavailable
41
WASHER, PLATE (22K)
90201-061H1-00
Unavailable
42
HOSE, BEND 5
5BN-14885-00-00
Unavailable
43
HOSE, VACUUM SENSING 1
5BN-13542-00-00
Unavailable
44
HOSE, VACUUM SENSING 2
5BN-13544-00-00
Unavailable
45
PIPE
4MM-13582-00-00
Unavailable
46
CLIP(41W)
90467-08092-00
Unavailable
47
HOSE, BEND 1
5BN-14881-00-00
Unavailable
48
PIPE 5
5BN-14875-00-00
Unavailable
