- XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998
CYLINDER HEAD

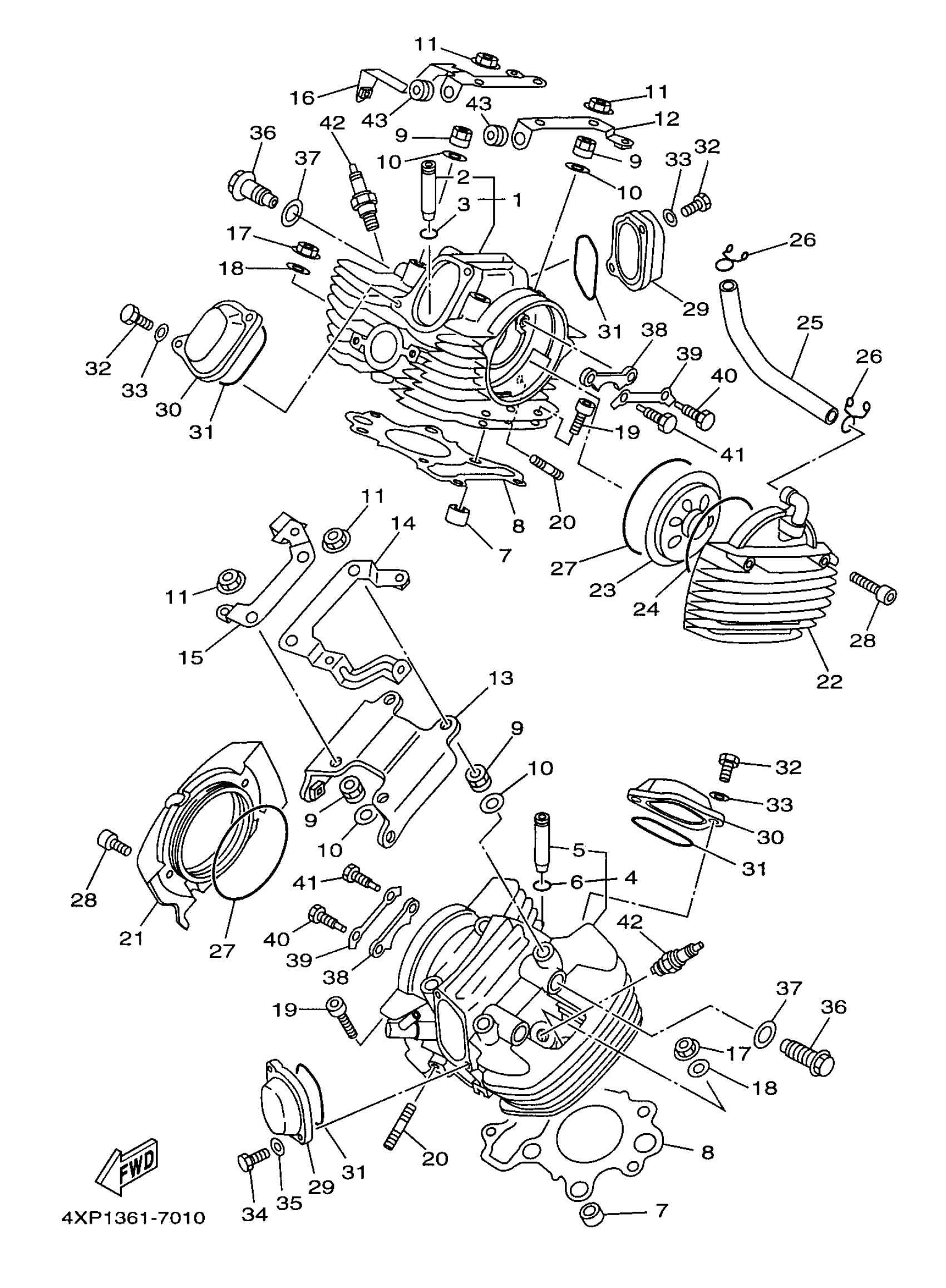

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 CYLINDER HEAD Diagram
#
1
CYLINDER HEAD ASSY
5BN-11101-10-00
Unavailable
4
CYLINDER HEAD ASSY
4XP-11101-11-00
Unavailable
7
PIN, DOWEL(3BM)
99530-17016-00
Unavailable
13
BRACKET, CYLINDER HEAD COVER
4TR-11152-00-00
Unavailable
14
PLATE
4TR-1111F-00-00
Unavailable
15
PLATE 2
4TR-1112F-00-00
Unavailable
16
BRACKET
4TR-1135A-00-00
Unavailable
17
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
18
WASHER, PLATE (33N)
90201-094G1-00
Unavailable
19
BOLT,SOCKET
91314-08030-00
Unavailable
20
BOLT, STUD 3
95617-08630-00
Unavailable
21
COVER, CYLINDER HEAD SIDE 3
4TR-11187-12-00
Unavailable
22
COVER, CYLINDER HEAD SIDE 2
4TR-11186-12-00
Unavailable
23
PLATE, BREATHER
22U-11165-00-00
Unavailable
24
O-RING (22U)
93210-89568-00
Unavailable
25
PIPE, BREATHER 1
4TR-11166-00-00
Unavailable
26
CLIP (371)
90467-14015-00
Unavailable
27
O-RING (22U)
93211-00612-00
Unavailable
28
BOLT, SOCKET
91314-06035-00
Unavailable
29
COVER, CYLINDER HEAD SIDE 2
22U-11186-01-00
Unavailable
30
COVER, CYLINDER HEAD SIDE 3
22U-11187-01-00
Unavailable
31
O-RING (4X7)
93210-62446-00
Unavailable
32
BOLT, HEXAGON
97017-06016-00
Unavailable
33
WASHER(6TA)
92907-06600-00
Unavailable
34
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
35
WASHER, PLAIN (646)
92990-06600-00
Unavailable
36
BOLT, UNION(4TR)
90401-16166-00
Unavailable
37
GASKET (4X7)
90430-17168-00
Unavailable
38
PLATE
22U-1111F-01-00
Unavailable
39
WASHER, LOCK
90215-08229-00
Unavailable
40
BOLT (26M)
90109-08782-00
Unavailable
41
BOLT (26M)
90109-08781-00
Unavailable
42
DPR7EA9 NGK SPLUG 10PK
DPR-7EA90-00-00
Unavailable
43
GROMMET (462)
90480-13018-00
Unavailable
