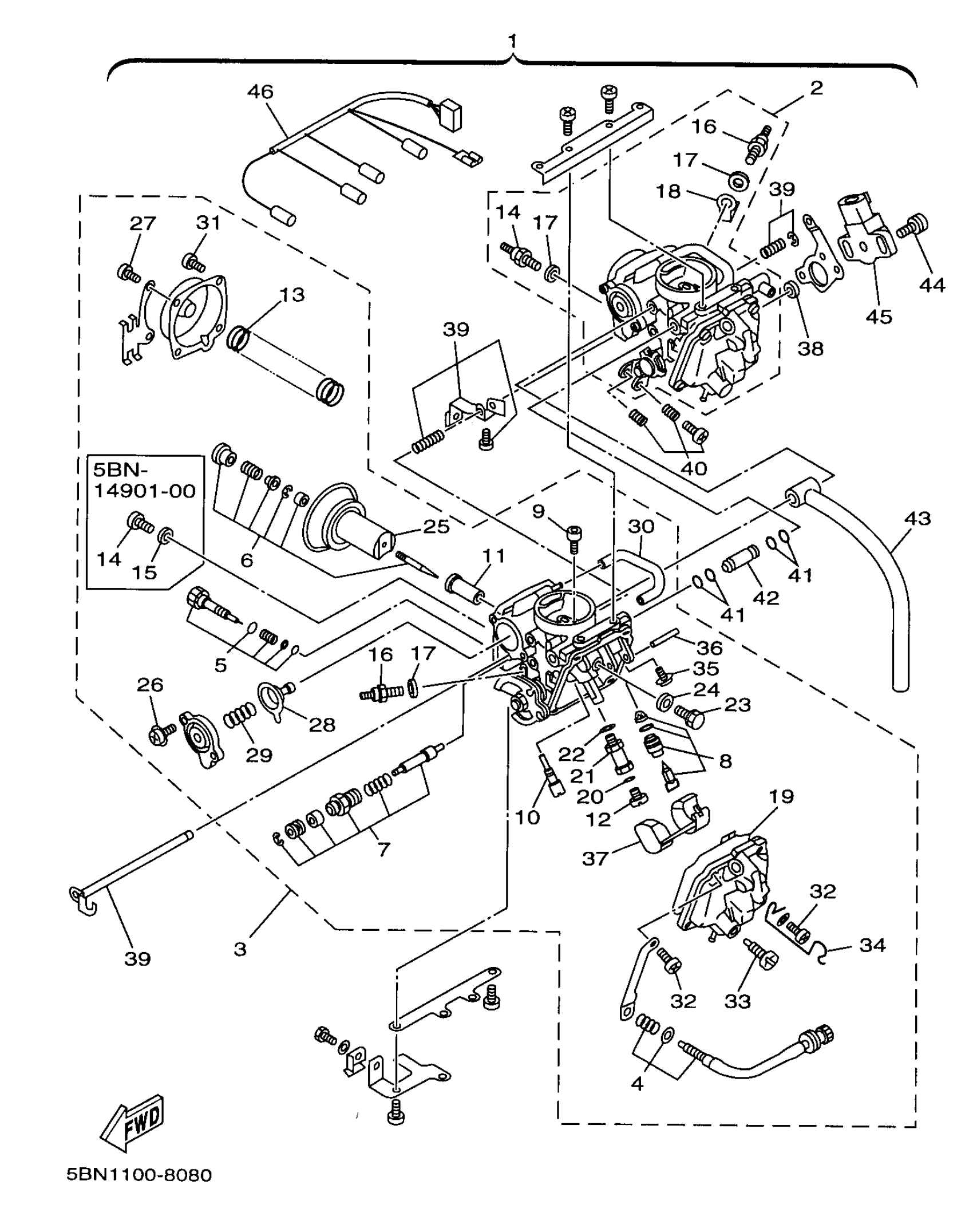

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

5BN-14900-01-00

Unavailable

1

CARBURETOR ASSY

5BN-14900-11-00

Unavailable

2

CARBURETOR ASSY 1

5BN-14901-01-00

Unavailable

2

CARBURETOR ASSY 1

5BN-14901-10-00

Unavailable

3

CARBURETOR ASSY 2

5BN-14902-01-00

Unavailable

3

. CARBURETOR ASSY 2

5BN-14902-10-00

Unavailable

4

THROTTLE SCREW SET

4TR-14103-00-00

Unavailable

5

PILOT SCREW SET

4LA-14105-00-00

$17.49

6

NEEDLE SET

5BN-1490J-00-00

Unavailable

7

STARTER SET

4DN-1410A-01-00

$72.99

8

NEEDLE VALVE SET

3CF-14107-10-00

$36.99

9

JET, MAIN (#100)

1HX-14231-20-00

$13.49

10

JET, PILOT (# 20)

4KM-14142-20-00

$9.99

11

NOZZLE, MAIN

5BN-14141-34-00

Unavailable

12

JET, MAIN (# 90)

3G2-14231-18-00

Unavailable

13

SPRING, DIAPHRAGM

4VR-14933-00-00

Unavailable

14

SCREW

3DM-14216-00-00

Unavailable

14

HEATER ASSY

5FU-83790-01-00

Unavailable

15

GASKET

127-14198-00-00

Unavailable

16

HEATER ASSY

4EB-83790-00-00

Unavailable

17

WASHER, PLATE

90201-08016-00

Unavailable

17

WASHER, PLATE

90201-08016-00

Unavailable

18

TERMINAL 1

4DH-82103-00-00

Unavailable

19

O-RING

1HX-14147-00-00

Unavailable

20

O-RING

1AE-14227-00-00

Unavailable

21

HOLDER

1AE-14261-00-00

Unavailable

22

GASKET

1AE-14237-00-00

Unavailable

23

SCREW

1HX-14565-00-00

Unavailable

24

WASHER,MAIN JET

137-14153-00-00

Unavailable

25

DIAPHRAGM ASSY

4TR-14940-00-00

Unavailable

26

SCREW, PAN HEAD

98517-04012-00

Unavailable

27

SCREW, ROD

3KW-14486-00-00

Unavailable

28

DIAPHRAGM ASSY

22V-14940-00-00

Unavailable

29

SPRING

26H-14275-00-00

Unavailable

30

PIPE 1

4TR-14348-00-00

Unavailable

31

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

31

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

31

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

32

SCREW, PAN HEAD(N15)

98507-04014-00

Unavailable

33

PLUG, DRAIN

12R-14191-00-00

Unavailable

34

CLIP

4TR-14937-00-00

Unavailable

35

SCREW

1FN-14565-00-00

Unavailable

36

PIN, FLOAT

353-14186-00-00

Unavailable

37

FLOAT

1HX-14985-00-00

Unavailable

38

SEAL

4HM-14239-00-00

Unavailable

39

STARTER LEVER SET, 1

4TR-1490L-00-00

Unavailable

40

STOP SCREW SET

3KW-1490K-00-00

Unavailable

41

O-RING

36Y-14147-00-00

Unavailable

42

NIPPLE

1WG-14251-00-00

Unavailable

43

HOSE

4TR-14987-00-00

Unavailable

44

SCREW

4KM-24453-00-00

Unavailable

45

THROTTLE SENSOR ASSY

4NK-85885-00-00

Unavailable

46

. WIRE, SUB LEAD

5BN-81517-00-00

Unavailable
