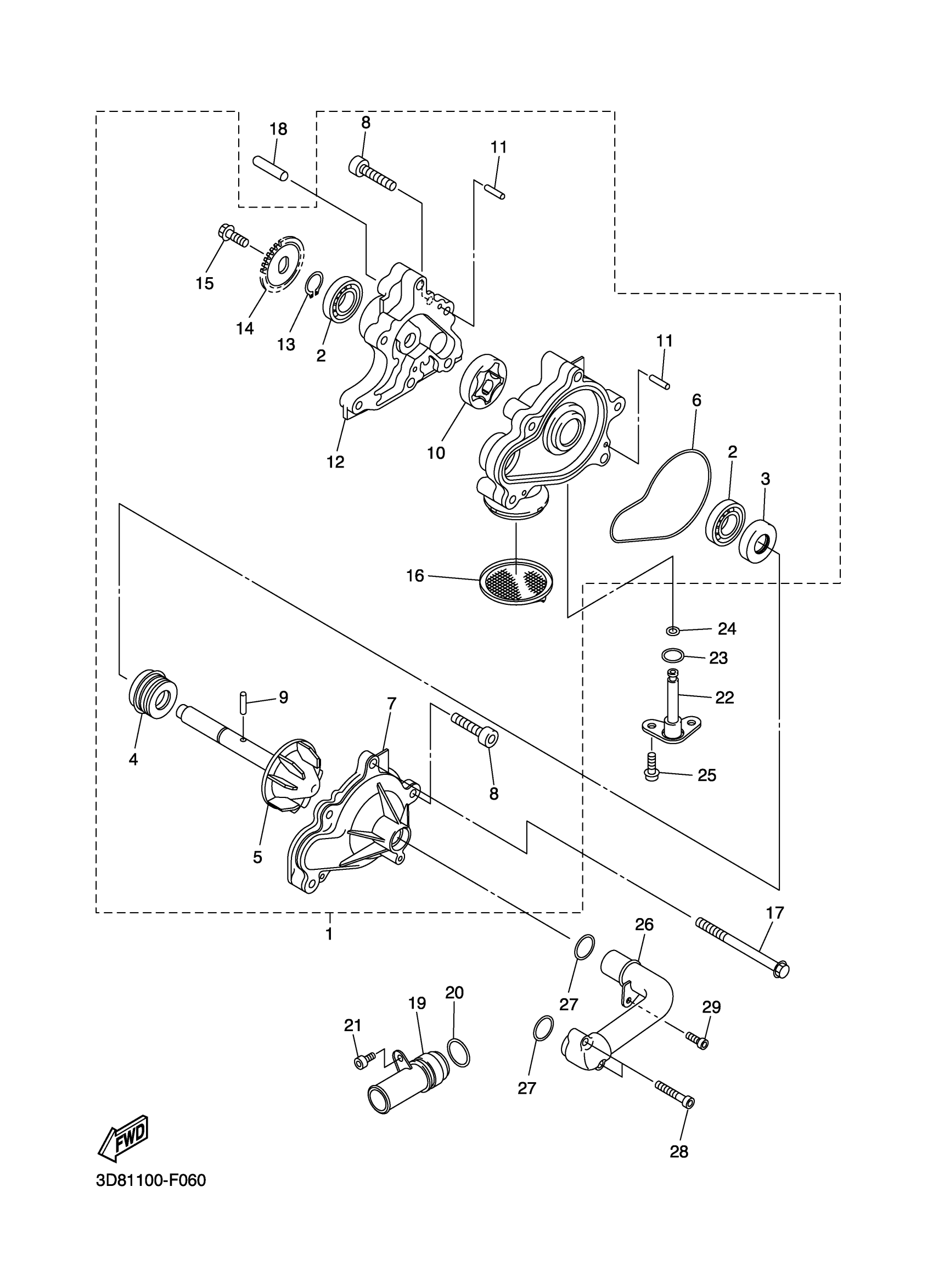

Yamaha XVS13CTZL (V STAR 1300 TOURER) 5S6A0 2010 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

3D8-12420-03-00

Unavailable

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

OIL SEAL

93102-12372-00

$12.49

4

SEAL, MECHANICAL

11H-12438-10-00

$62.99

5

IMPELLER SHAFT ASSY

3D8-12450-01-00

Unavailable

6

O-RING

3D8-12439-00-00

Unavailable

7

COVER, HOUSING

3D8-12422-00-00

Unavailable

8

BOLT,SOCKET

91317-06025-00

$5.60

9

PIN,DOWEL

93603-17070-00

$4.14

10

ROTOR ASSY 1

3D8-13310-00-00

$32.99

11

PIN,DOWEL (603)

93603-12007-00

$2.55

12

HOUSING, ROTOR

3D8-13336-00-00

Unavailable

13

CIRCLIP(10Y)

99009-12400-00

$3.59

14

SPROCKET, DRIVEN

3D8-13355-00-00

Unavailable

15

BOLT, FLANGE

90105-06066-00

$8.49

16

STRAINER, OIL

3D8-13411-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-08049-00

Unavailable

18

PIN, DOWEL

99530-08012-00

Unavailable

19

PIPE 9

3D8-1248E-01-00

Unavailable

20

O-RING(1KT)

93210-27778-00

Unavailable

21

BOLT,SOCKET

91317-06012-00

Unavailable

22

BODY, DRAIN COCK

3D8-12562-00-00

Unavailable

23

O-RING (32N)

93210-15639-00

Unavailable

24

O-RING(26H)

93210-06667-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

Unavailable

26

PIPE, WATER

3D8-12564-00-00

Unavailable

27

O-RING

93210-235A1-00

Unavailable

28

BOLT(J17)

91312-06035-00

Unavailable

29

BOLT,SOCKET

91317-06016-00

Unavailable
