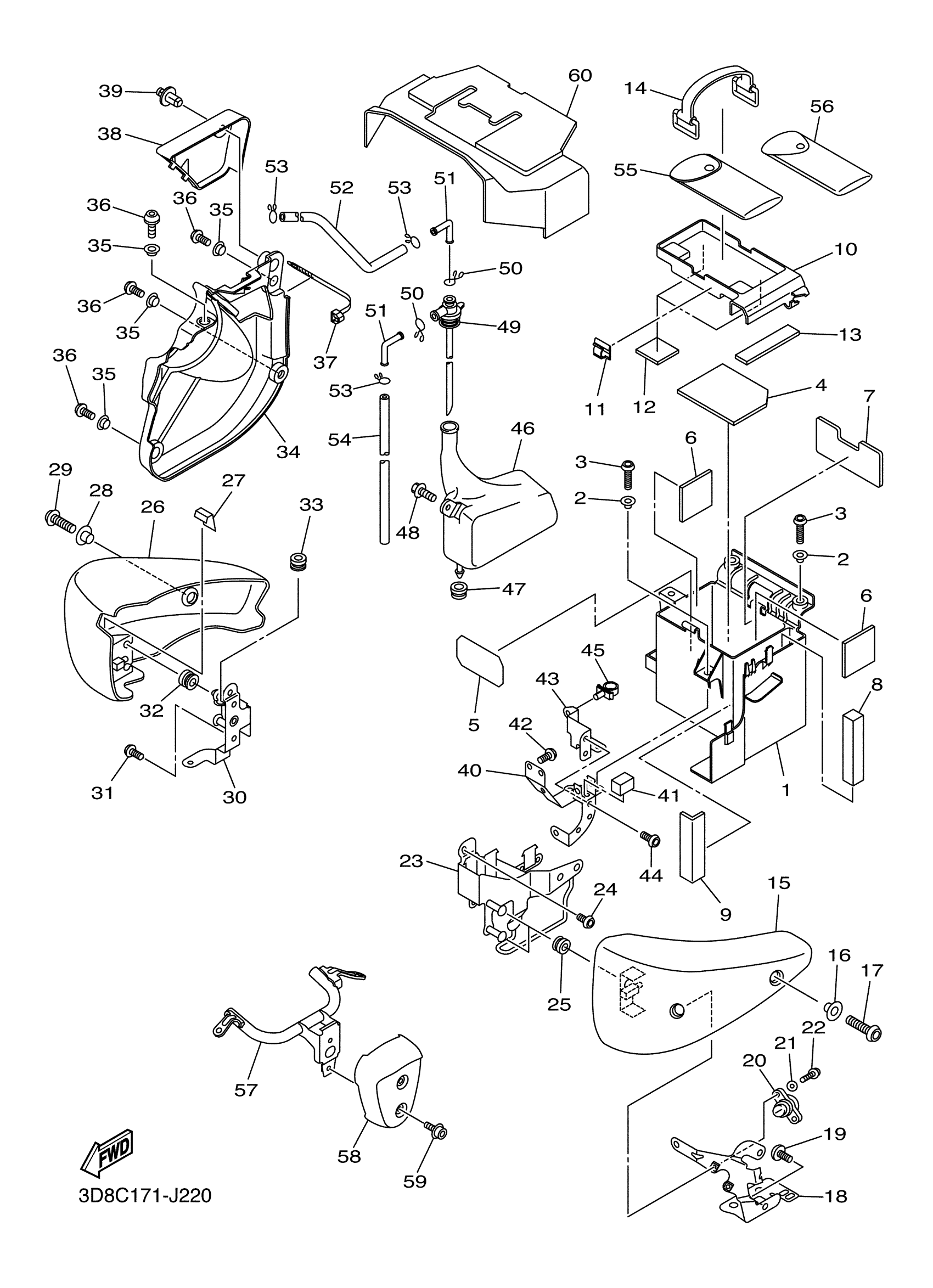

Yamaha XVS13CTZL (V STAR 1300 TOURER) 5S6A0 2010 SIDE COVER Diagram

#

Description
Price

1

BOX, BATTERY

3D8-2177G-02-00

$30.99

2

COLLAR

90387-06267-00

Unavailable

3

BOLT, BUTTON HEAD

92012-06020-00

$8.49

4

SEAT, BATTERY

51Y-82122-00-00

$7.99

5

PROTECTOR

5PX-21652-00-00

Unavailable

6

DAMPER

3D8-2174Y-00-00

$1.04

7

DAMPER

3D8-2174X-00-00

$2.60

8

DAMPER, LOCATING 2

3D8-21779-00-00

Unavailable

9

DAMPER, LOCATING 3

3D8-2177M-00-00

$0.99

10

BOX, TOOL

3D8-28173-10-00

Unavailable

11

CLAMP

90464-07002-00

Unavailable

12

DAMPER

2GH-24185-00-00

$0.73

13

DAMPER (L.H)

1AE-2834E-00-00

$6.99

14

BAND, BATTERY

22F-82131-00-00

$29.99

15

COVER, SIDE 1

3D8-21711-00-P0

Unavailable

16

COLLAR

90387-06173-00

Unavailable

17

SCREW

90149-06023-00

Unavailable

18

BRACKET 1

3D8-2175T-00-00

Unavailable

19

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

20

ROTOR SET

5PX-W2470-00-00

Unavailable

21

WASHER, PLATE

90201-06034-00

Unavailable

22

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

23

BRACKET 3

3D8-2172M-10-00

Unavailable

24

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

25

GROMMET(3VD)

90480-12550-00

Unavailable

26

COVER, SIDE 2

3D8-21721-00-P0

Unavailable

27

PROTECTOR

3MA-27491-00-00

Unavailable

28

COLLAR

90387-06173-00

Unavailable

29

BOLT

90111-06038-00

Unavailable

30

BRACKET 4

3D8-2172N-00-00

Unavailable

31

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

32

GROMMET(3VD)

90480-12550-00

Unavailable

33

GROMMET(3AK)

90480-18495-00

Unavailable

34

COVER, SIDE 4

3D8-21741-10-00

Unavailable

35

COLLAR

90387-06184-00

Unavailable

36

BOLT

90111-06038-00

Unavailable

37

CLAMP(4FM)

90464-15195-00

Unavailable

38

PLATE

3D8-2176E-10-00

Unavailable

39

RIVET(4PH)

90269-07077-00

Unavailable

40

BRACKET 1

3D8-2172K-01-00

Unavailable

41

DAMPER, LOCATING 1

3D8-21778-00-00

Unavailable

42

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

43

BRACKET 2

3D8-2172L-00-00

Unavailable

44

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

45

CLAMP

90464-12001-00

Unavailable

46

TANK, RECOVERY

3D8-21871-00-00

Unavailable

47

GROMMET(4FU)

90480-13567-00

Unavailable

48

BOLT, WITH WASHER

90119-06137-00

Unavailable

49

CAP

3D8-21875-00-00

Unavailable

50

CLIP(72X)

90467-11M08-00

Unavailable

51

ELBOW

26H-21828-00-00

Unavailable

52

PIPE, BREATHER

3D8-21826-00-00

Unavailable

53

CLIP 101235600

90467-08003-00

Unavailable

54

HOSE (L420)

90445-092K1-00

Unavailable

55

TOOL KIT

3D8-28100-11-00

Unavailable

56

TOOL KIT 2

3D8-28110-01-00

Unavailable

57

STAY, COVER

3D8-1541E-00-00

Unavailable

58

COVER, CARBURETOR 1

5EL-14283-00-00

Unavailable

59

BOLT, HEXAGON SOCKET HEAD

90110-05057-00

Unavailable

60

COVER

3D8-24796-00-00

Unavailable
