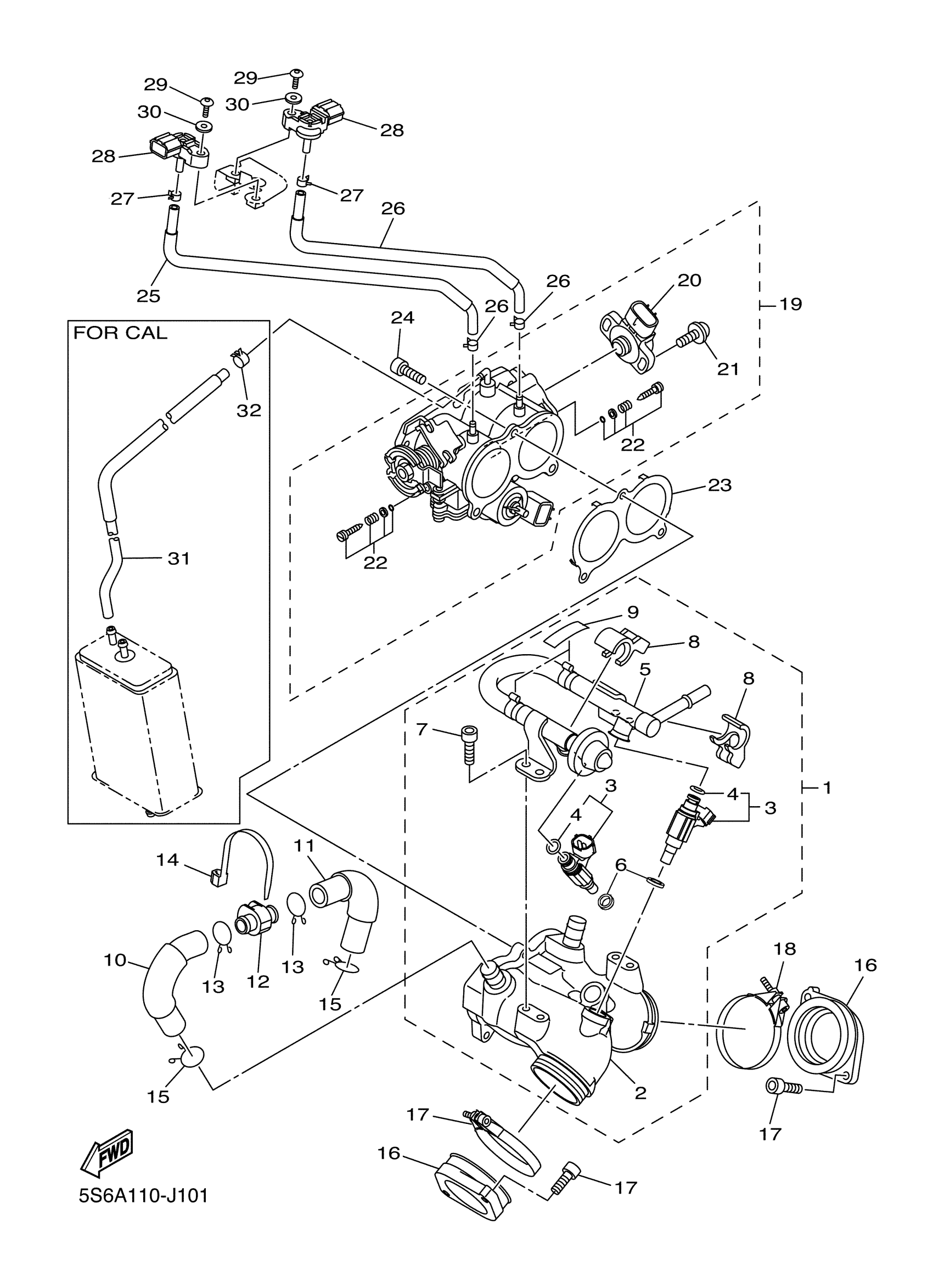

Yamaha XVS13CTZL (V STAR 1300 TOURER) 5S6A0 2010 INTAKE 1 Diagram

#

Description
Price

1

CARBURETOR JOINT ASSY

3D8-13590-30-00

$558.99

2

MANIFOLD

3D8-13640-00-00

Unavailable

3

INJECTOR ASSY

3D8-13761-00-00

$251.99

4

O-RING

5FL-14147-00-00

$15.49

5

PIPE INLET ASSEMBLY

3D8-13930-10-00

$287.99

6

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

7

BOLT (33M)

91312-06014-00

$5.60

8

HOLDER

3D8-14261-00-00

Unavailable

9

PROTECTOR

3D8-1442F-00-00

$5.49

10

PIPE, SILENCER

3D8-1441J-01-00

Unavailable

11

PIPE, SILENCER 2

3D8-1442J-01-00

Unavailable

12

PLUG

3D8-14862-00-00

Unavailable

13

CLIP

90467-18196-00

$7.49

14

CLAMP(4FM)

90464-15195-00

$4.41

15

CLIP

90467-18196-00

$7.49

16

JOINT, CARBURETOR 1

3D8-13586-00-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

HOSE CLAMP ASSY

90450-62006-00

Unavailable

19

THROTTLE BODY ASSY

3D8-13750-20-00

Unavailable

20

THROTTLE SENSOR AS

8GL-85885-01-00

Unavailable

21

SCREW

4KM-24453-00-00

Unavailable

22

AIR SCREW SET

3D8-14104-00-00

Unavailable

23

SEAL

BL3-14467-00-00

Unavailable

24

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

25

HOSE, AIR

3D8-13895-00-00

Unavailable

26

HOSE, AIR

3D8-13895-00-00

Unavailable

27

CLIP(42X)

90467-07093-00

Unavailable

28

SENSOR, PRESSURE

5S7-82380-00-00

Unavailable

29

BOLT(3JK)

97027-05020-00

Unavailable

30

WASHER, PLAIN (646)

92990-05600-00

Unavailable
