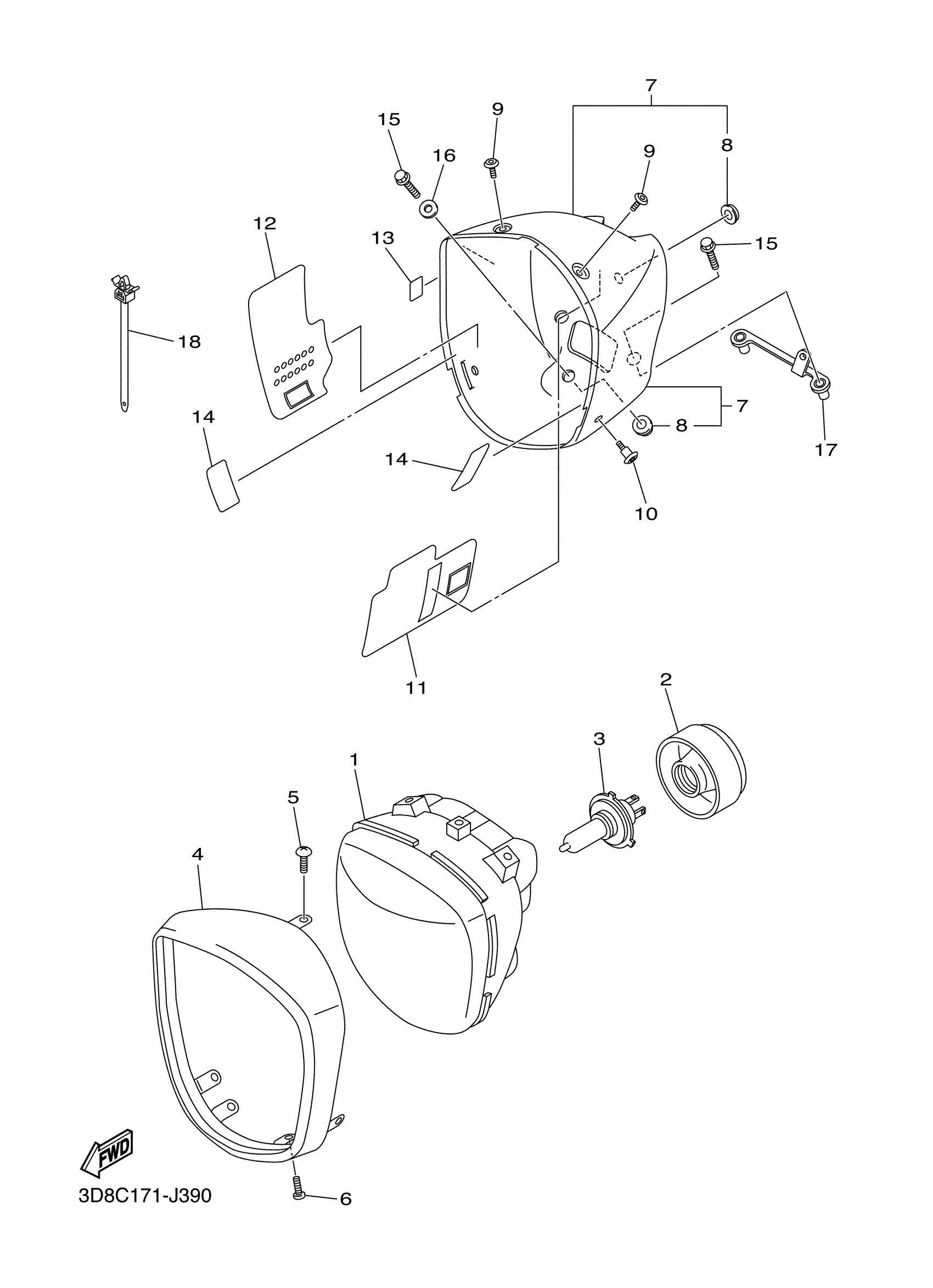

Yamaha XVS13CTZL (V STAR 1300 TOURER) 5S6A0 2010 HEADLIGHT Diagram
#
Description
Price
1
LENS ASSY
3D8-84320-10-00
Unavailable
2
COVER, SOCKET
5JW-84397-00-00
Unavailable
6
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
7
BODY ASSY
3D8-84330-10-00
Unavailable
11
HOLDER, 1
3D8-8411T-00-00
Unavailable
14
SEAL 1
3D8-21575-00-00
Unavailable
16
COLLAR
90387-06175-00
Unavailable
17
HOLDER
3D8-84387-00-00
Unavailable
18
CLAMP(2TV)
90464-10112-00
Unavailable
