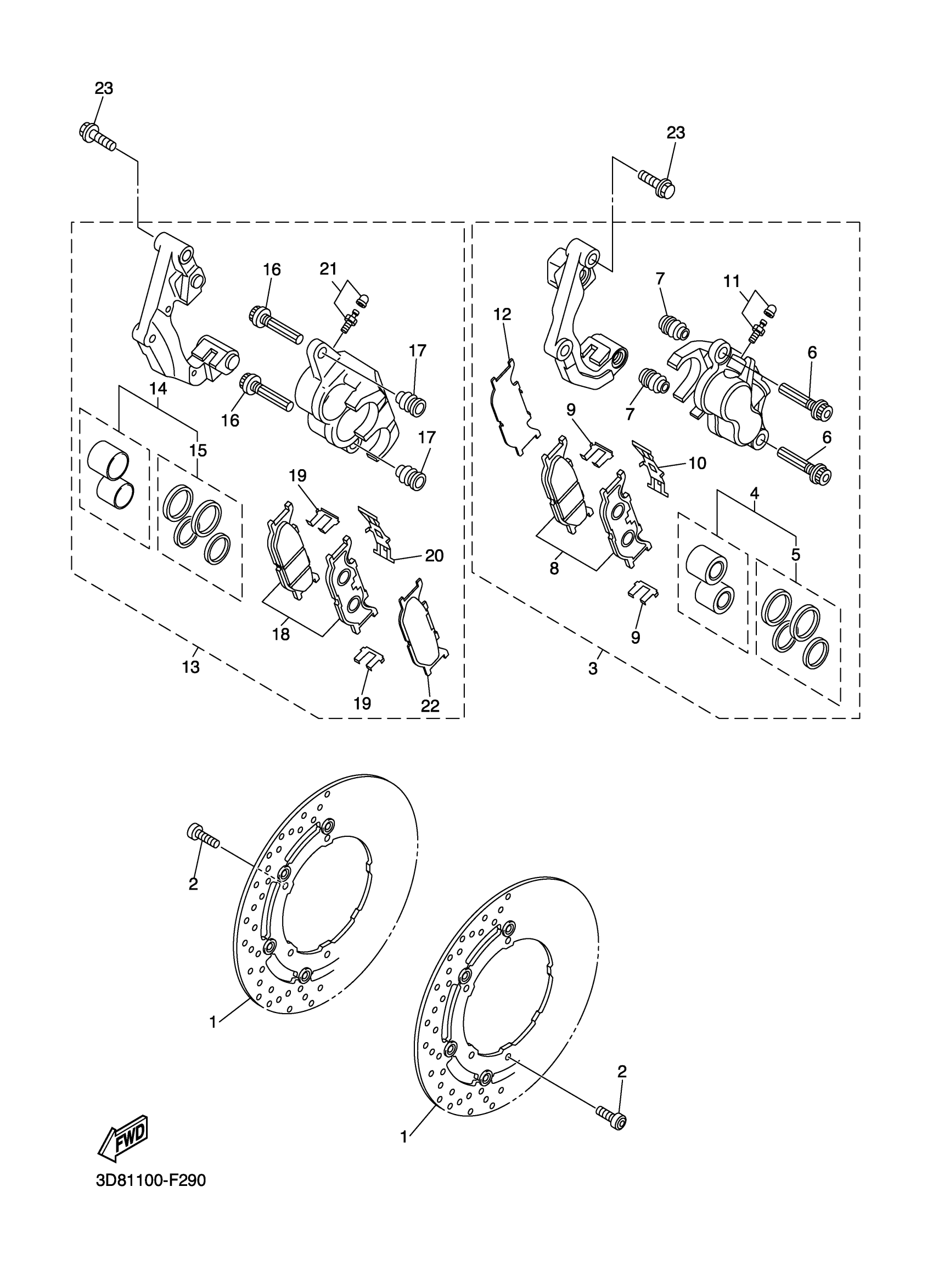

Yamaha XVS13CTZL (V STAR 1300 TOURER) 5S6A0 2010 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

3D8-2581T-10-00

$237.76

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.91

3

CALIPER ASSY (LEFT)

3D8-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

5KS-25802-00-00

$58.47

5

CALIPER SEAL KIT

4HC-25803-50-00

$51.55

6

PIN, SLIDE

5JW-25914-10-00

$17.93

7

BOOT 2

4TT-25937-00-00

$13.33

8

BRAKE PAD KIT

5VU-25805-00-00

$40.09

9

SUPPORT, PAD

4BP-25919-00-00

$27.53

10

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

11

BLEED SCREW KIT

15B-W0048-00-00

$16.89

12

SHIM, CALIPER

5VU-25827-00-00

$9.77

13

CALIPER ASSY (RIGHT)

3D8-2580U-00-00

Unavailable

14

PISTON ASSY, CALIPER

5KS-25802-00-00

$58.47

15

CALIPER SEAL KIT

4HC-25803-50-00

$51.55

16

PIN, SLIDE

5JW-25914-10-00

$17.93

17

BOOT 2

4TT-25937-00-00

$13.33

18

BRAKE PAD KIT

5VU-25805-00-00

$40.09

19

SUPPORT, PAD

4BP-25919-00-00

$27.53

20

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

21

BLEED SCREW KIT

15B-W0048-00-00

$16.89

22

SHIM, CALIPER

5VU-25827-00-00

$9.77

23

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
