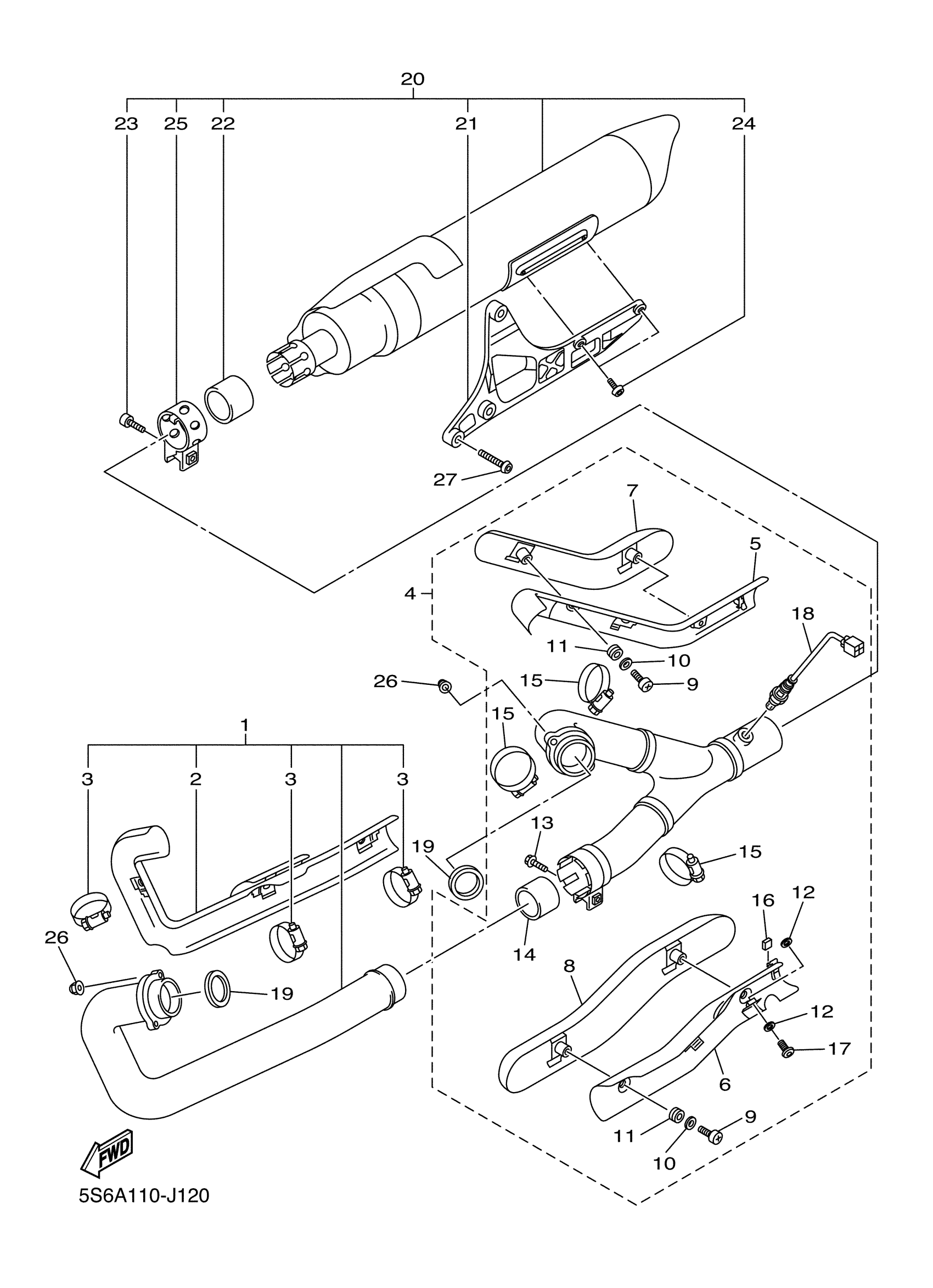

Yamaha XVS13CTZL (V STAR 1300 TOURER) 5S6A0 2010 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

3D8-14610-10-00

Unavailable

2

PROTECTOR,MUFF. 1

3D8-W1471-00-00

$436.99

3

HOSE CLAMP ASSY

90450-44001-00

$16.99

4

EXHAUST PIPE ASSY 2

3D8-14620-10-00

Unavailable

5

MUFFLER COMP. 2

3D8-W1472-10-00

Unavailable

6

PROTECTOR, MUFFLER 3

3D8-14738-00-00

Unavailable

7

PROTECTOR, MUFFLER 4

3D8-14748-10-00

$194.99

8

PROTECTOR, EXHAUST PIPE

3D8-14628-00-00

Unavailable

9

SCREW, BIND(J45)

98980-06012-00

$8.49

10

WASHER, PLATE(1JK)

90201-064K6-00

$9.49

11

GROMMET

90480-17005-00

$5.60

12

WASHER, PLATE

90201-05015-00

$8.49

13

BOLT, SOCKET

91314-08035-00

$2.22

14

GASKET, SILENCER

5PX-14755-00-00

$29.99

15

HOSE CLAMP ASSY

90450-44001-00

$16.99

16

DAMPER, LOCATING 1

3MA-24181-00-00

Unavailable

17

SCREW, BIND (705)

98980-06016-00

Unavailable

18

SENSOR

5D1-8592A-00-00

Unavailable

19

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable

20

MUFFLER ASSY 1

3D8-14710-10-00

Unavailable

21

STAY, MUFFLER 2

3D8-14772-00-00

Unavailable

22

GASKET, MUFFLER

5VY-14714-00-00

Unavailable

23

BOLT, SOCKET

91314-08035-00

$2.22

24

BOLT

90111-10006-00

Unavailable

25

BAND, MUFFLER

3D8-14715-00-00

Unavailable

26

NUT, CROWN

90176-08006-00

Unavailable

27

BOLT,HEX. SOCKET BUTTON

90111-10032-00

Unavailable
