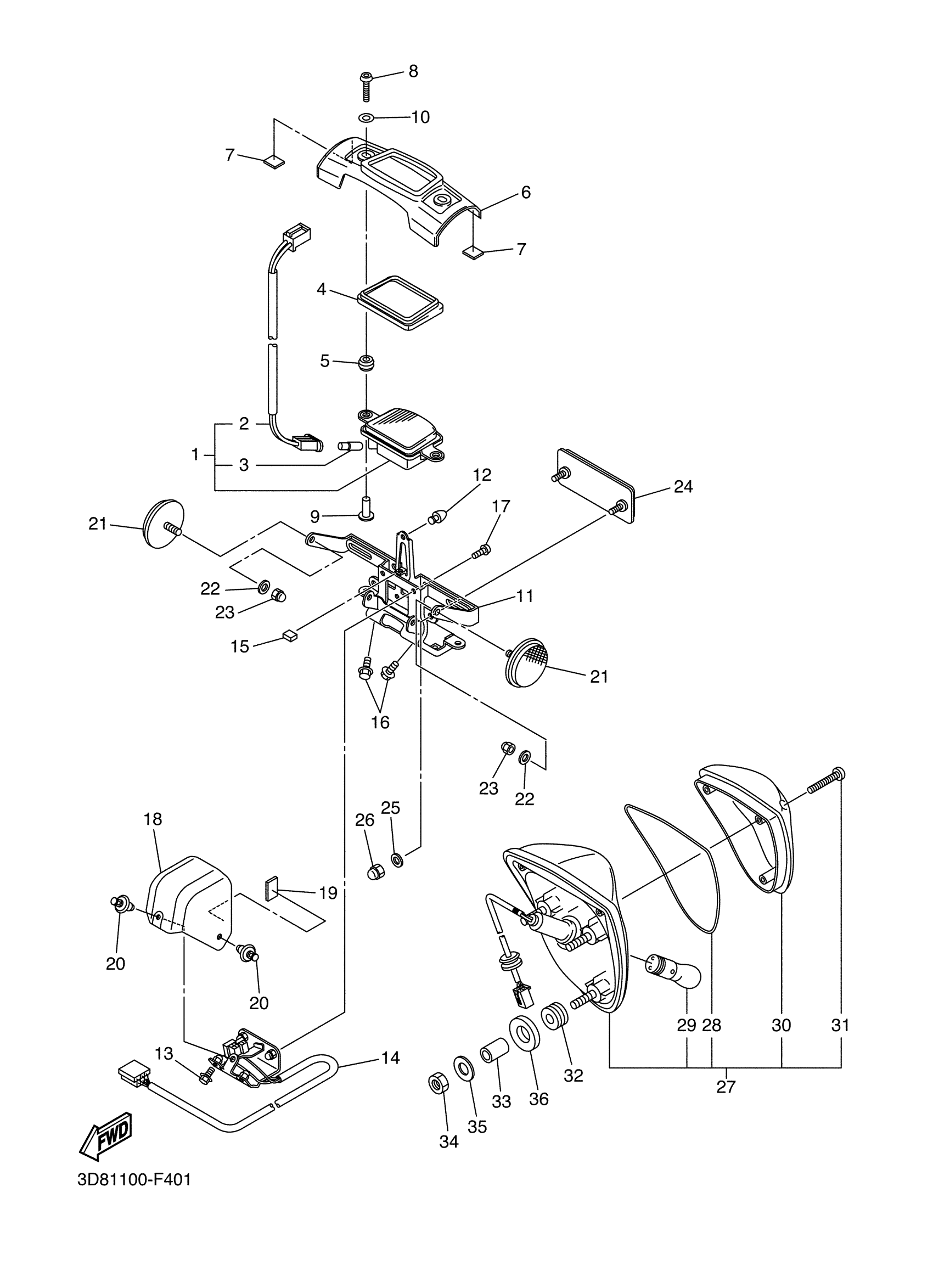

Yamaha XVS13CTXS (V STAR 1300 TOURER) 5S641 2008 TAILLIGHT Diagram

#

Description
Price

1

LICENCE LIGHT UNIT ASSY

3D8-84745-00-00

Unavailable

2

SOKET CORD ASSY

3D8-8473E-00-00

$24.99

3

BULB

4SV-84347-00-00

$8.99

4

DAMPER

3D8-84753-00-00

Unavailable

5

GROMMET(1VJ)

90480-13459-00

$2.34

6

COVER, REAR FENDER 1

3D8-2163A-00-00

Unavailable

7

PROTECTOR

3D8-21652-00-00

$2.29

8

BOLT,HEX. SOCKET BUTTON

90111-06077-00

$3.02

9

COLLAR

90387-06165-00

$5.60

10

WASHER, PLATE

90201-06091-00

$4.51

11

BRACKET, LICENCE

3D8-84551-00-00

Unavailable

12

DAMPER 2

42U-21639-00-00

Unavailable

13

BOLT, FLANGE

95817-06012-00

$1.43

14

CORD, TAILLIGHT

3D8-84717-00-00

Unavailable

15

DAMPER, LOCATING 1

3MA-24181-00-00

$7.99

16

BOLT, FLANGE

95817-06012-00

$1.43

17

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

18

COVER, REAR FENDER 3

3D8-2163F-01-00

Unavailable

19

DAMPER 2

51Y-21639-00-00

Unavailable

20

RIVET(4PH)

90269-07077-00

Unavailable

21

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

22

WASHER, PLAIN (3GDF)

90201-051K1-00

Unavailable

23

NUT, CROWN

90176-05004-00

Unavailable

24

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

25

WASHER, PLAIN (3GDF)

90201-051K1-00

Unavailable

26

NUT, CROWN

90176-05004-00

Unavailable

27

TAILLIGHT ASSY

3D8-84700-00-00

Unavailable

28

GASKET, TAIL LENS

3D8-84723-00-00

Unavailable

29

BULB

1A2-84714-50-00

Unavailable

30

LENS, TAILLIGHT

3D8-84721-00-00

Unavailable

31

SCREW

3D8-84726-00-00

Unavailable

32

GROMMET

90480-14004-00

Unavailable

33

COLLAR

90387-07020-00

Unavailable

34

NUT, HEXAGON

95380-06600-00

Unavailable

35

WASHER, PLATE

90201-06086-00

Unavailable

36

DAMPER

5BN-84553-00-00

Unavailable
