REAR ARM SUSPENSION

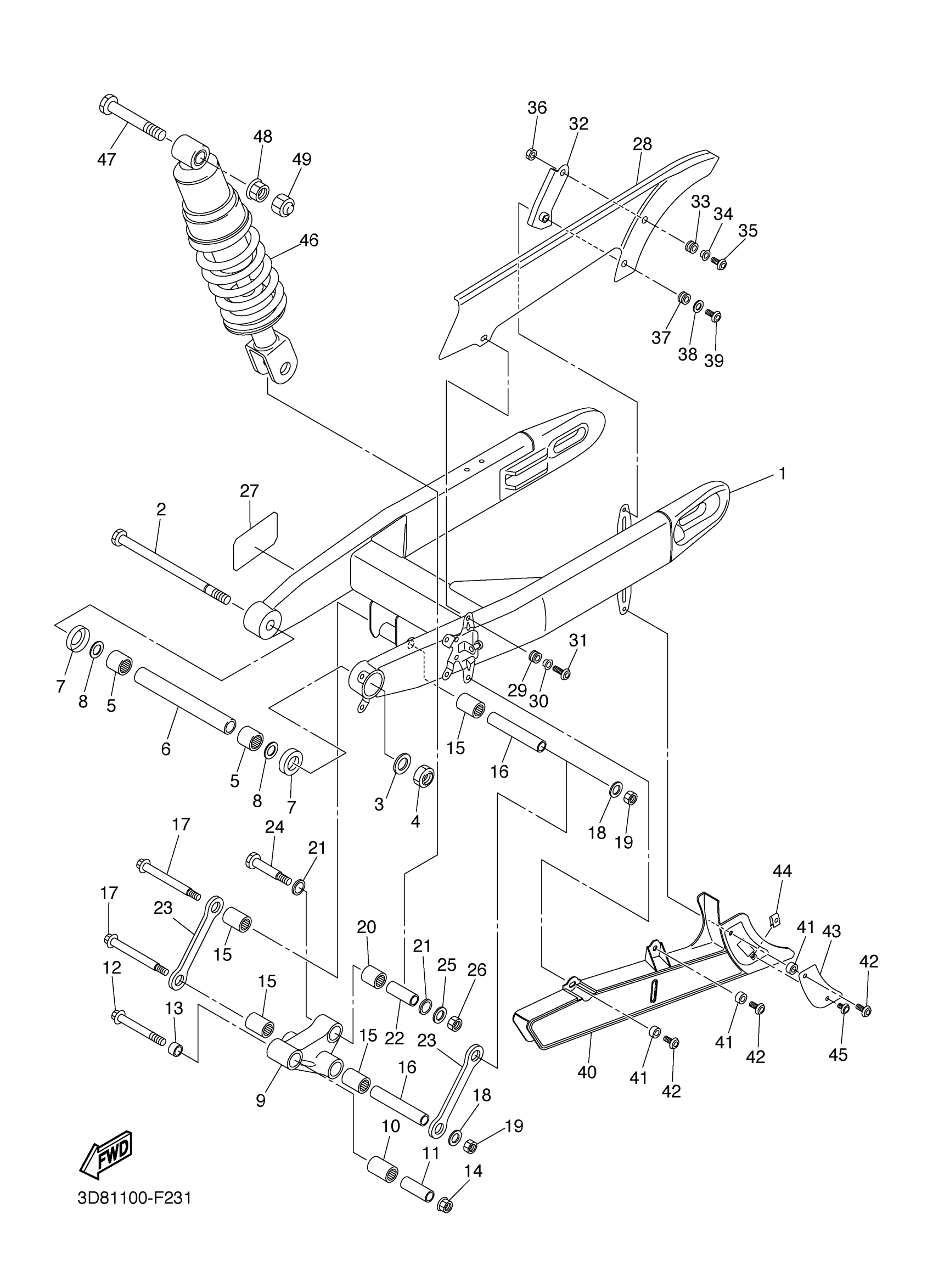

Yamaha XVS13CTXS (V STAR 1300 TOURER) 5S641 2008 REAR ARM SUSPENSION Diagram
#
1
REAR ARM COMP.
3D8-22110-01-00
Unavailable
6
BUSH 2
3D8-22124-00-00
Unavailable
9
ARM, RELAY
3D8-2217A-00-00
Unavailable
11
COLLAR(2MF)
90387-100T8-00
Unavailable
13
COLLAR
90387-10049-00
Unavailable
16
COLLAR(2GH)
90387-126T1-00
Unavailable
17
BOLT
90101-12027-00
Unavailable
18
WASHER, PLATE
90201-12045-00
Unavailable
19
NUT, U
95612-12100-00
Unavailable
20
BEARING, CYLINDRICAL(3YL)
93317-31771-00
Unavailable
21
OIL SEAL
93109-17071-00
Unavailable
22
COLLAR(3TJ)
90387-127W0-00
Unavailable
23
ARM 1
3D8-2217M-00-00
Unavailable
24
BOLT
90109-10024-00
Unavailable
25
WASHER, PLATE
90201-10035-00
Unavailable
26
NUT, U
95617-10100-00
Unavailable
27
PROTECTOR
5PX-21652-00-00
Unavailable
28
CASE, CHAIN
3D8-22311-00-00
Unavailable
29
GROMMET
90480-13004-00
Unavailable
30
COLLAR
90387-06171-00
Unavailable
31
SCREW(4DN)
90149-06302-00
Unavailable
32
STAY, CHAIN CASE
3D8-2213J-00-00
Unavailable
33
GROMMET
90480-13004-00
Unavailable
34
COLLAR
90387-06171-00
Unavailable
35
BOLT
90111-06038-00
Unavailable
36
NUT, HEXAGON
95380-06600-00
Unavailable
37
GROMMET
90480-13004-00
Unavailable
38
WASHER, PLATE
90201-06095-00
Unavailable
39
SCREW(4DN)
90149-06302-00
Unavailable
40
CASE, CHAIN 2
3D8-22312-00-00
Unavailable
41
COLLAR
90387-06106-00
Unavailable
42
SCREW(4DN)
90149-06302-00
Unavailable
43
PLATE, GUIDE 1
5PX-22341-00-00
Unavailable
44
NUT, SPRING(4ES)
90183-06069-00
Unavailable
45
SCREW(3XV)
90149-06298-00
Unavailable
46
SHOCK ABSORBER ASSY, REAR
3D8-22210-20-00
Unavailable
47
BOLT
90109-10028-00
Unavailable
49
CAP
5YU-2143A-00-00
Unavailable
